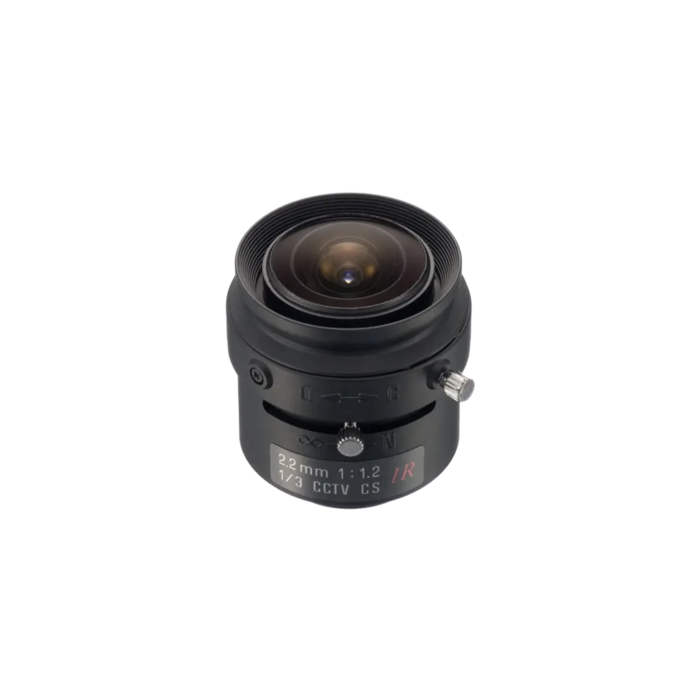

Tamron 13FM22IR 1/3" IR Mono-Focal Lens (Discontinued)
*Product is Discontinued, Call For Replacement Options
The Tamron 13FM22IR lens, available from Aegis Electronic Group Inc., delivers exceptional performance in industrial and machine vision settings. With a 2.2mm focal length and F/1.2 aperture, it excels in low-light environments, making it perfect for surveillance, automated inspection, and robotics applications. Its robust design ensures reliability across a wide temperature range, providing the clarity and precision required for effective imaging.
Discover the Versatility and Performance of the Tamron 13FM22IR Lens
The Tamron 13FM22IR 1/3" IR Mono-Focal Lens, available through Aegis Electronic Group Inc., represents a significant advancement in the realm of industrial and machine vision optics. With a focal length of 2.2mm and an aperture range of F/1.2 to close, this lens is specifically designed to deliver outstanding image quality in various lighting conditions, including low-light and near-total darkness environments. Its compatibility with both day/night and conventional cameras enhances its versatility, making it an ideal choice for surveillance, security, and automation applications.
Engineered with infrared-corrected glass elements, the Tamron 13FM22IR lens ensures optimal brightness and contrast, essential for accurate imaging in industrial settings. Its CS mount allows for easy integration with a variety of imaging systems, while the manual focus and iris lock features provide users with precise control over image capture. The lens operates effectively across a wide temperature range from -20℃ to +60℃, ensuring reliability in diverse environments.
This lens is particularly beneficial for applications such as quality control, automated inspection, and robotics, where clear and detailed imaging is crucial. By choosing the Tamron 13FM22IR, customers can enhance their machine vision systems and achieve greater accuracy and efficiency in their operations.
Features:
- Focal Length: 2.2mm for wide-angle imaging
- Aperture Range: F/1.2 to close, enhancing low-light performance
- Angle of View: 118.6° (horizontal) x 90.0° (vertical) for expansive coverage
- Focus Range: From 0.1m to infinity, ensuring versatility in various settings
- Mount Type: CS mount for easy integration with imaging systems
- Infrared Corrected: Advanced glass elements for improved brightness and contrast
- Operating Temperature Range: -20℃ to +60℃, suitable for diverse environments
- Manual Lock: Focus and iris with manual locks for precision control
Applications:
- Surveillance and Security: Provides clear imaging in low-light conditions.
- Automated Inspection: Essential for quality control processes in manufacturing.
- Robotics: Enhances vision systems for automated tasks.
- Day/Night Imaging: Versatile enough for constant monitoring, regardless of lighting conditions.
| Imager Size | 1/3" |
| Mount | CS |
| Focal Length | 2.2mm |
| Aperture Range | F/1.2 - Close |
| Angle of View | 1/3": 118.6° x 90.0° 1/4": 90.0° x 67.9° |
| Focus Range | 0.1m to infinity |
| Access | Focus: With manual lockIris: With manual lock |
| Back Focus (in air) | 7.58mm (in air) |
| Compatible Wavelengths | Visible light range to near infrared range |
| Weight | 41g +/- 3g |
| Operating Temperature Range | -20℃ to +60℃ |
