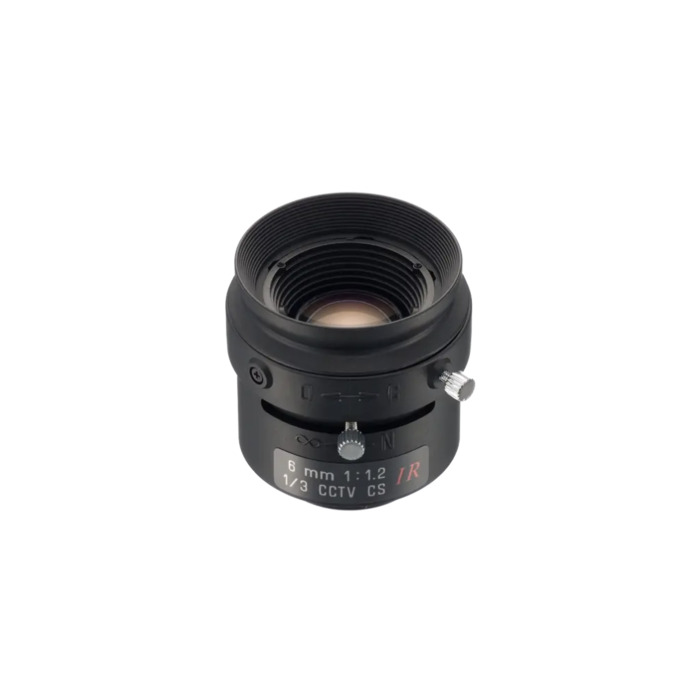

Tamron 13FM06IR 1/3" IR Mono-Focal Lens (Discontinued)
*Product is Discontinued, Call For Replacement Options
The Tamron 13FM06IR Mono-Focal Lens is tailored for various industrial and machine vision applications. Its ability to perform in both daylight and low-light conditions makes it suitable for CCTV systems, surveillance, and security monitoring. The lens excels in automated inspection systems, enhancing image clarity for quality control in manufacturing.
Tamron 13FM06IR 1/3" IR Mono-Focal Lens: Enhancing Industrial Imaging
The Tamron 13FM06IR 1/3" IR Mono-Focal Lens is a vital component for professionals in the Industrial & Machine Vision sectors, engineered to enhance image quality across a spectrum of applications. This lens, featuring a 6mm focal length and an aperture range of F1.2 to Close, is designed for CS mount compatibility, making it versatile for a variety of camera systems. Its focus range extends from 0.2m to infinity, ensuring clarity and precision at various distances.
The lens boasts an impressive angle of view, with horizontal and vertical measurements of 46.5° x 34.6° for a 1/3" imager and 34.6° x 25.9° for a 1/4" imager, providing ample coverage for most industrial settings. Its capability to operate effectively from ambient light to the near infrared spectrum makes it ideal for both Day/Night and conventional B/W CCTV cameras. The manual iris and focus locks allow for precise adjustments, catering to specific operational needs. Weighing in at just 30g, and operational within a temperature range of -20℃ to +60℃, this lens is built for reliability and performance, making it an excellent choice for any industrial imaging application.
Features:
- Focal Length: 6mm
- Aperture Range: F1.2 to Close
- Mount Type: CS
- Focus Range: 0.2m to infinity
- Angle of View (1/3"): 46.5° x 34.6°
- Angle of View (1/4"): 34.6° x 25.9°
- Focus Control: With manual lock
- Iris Control: With manual lock
- Back Focus: 8.92mm (in air)
- Compatible Wavelengths: Visible light range to near infrared range
- Weight: 30g ± 3g
- Operating Temperature Range: -20℃ to +60℃
Applications:
- CCTV systems
- Automated Inspection Systems
- Robotic Vision Systems
- Research and Development
- Inspection
| Imager Size | 1/3" |
| Mount | CS |
| Focal Length | 6mm |
| Aperture Range | 1.2 ～ Close |
| Angle of View (1/3") | 46.5° x 34.6° |
| Angle of View (1/4") | 34.6° x 25.9° |
| Focus Range | 0.2m to infinity |
| Focus Control | With manual lock |
| Iris Control | With manual lock |
| Back Focus | 8.92mm (in air) |
| Compatible Wavelengths | Visible light range to near infrared range |
| Weight | 30g ± 3g |
| Operating Temperature Range | -20℃ to +60℃ |
