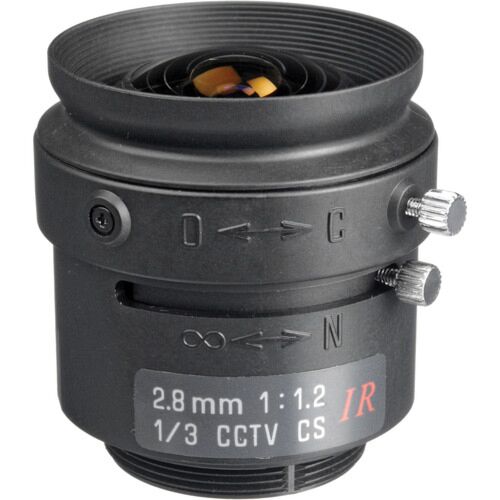

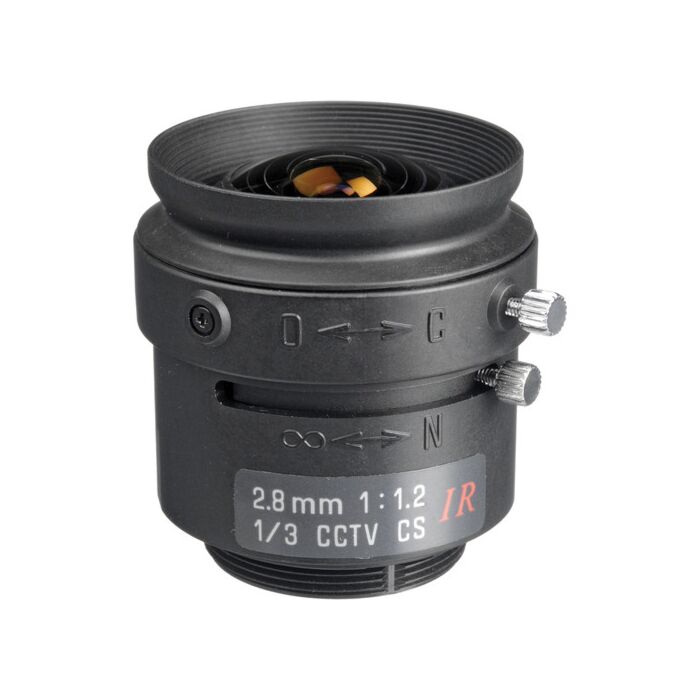

Tamron 13FG28IR-SQ 1/3" 2.8mm F1.2 DC Auto-Iris CS-Mount Lens, IR Corrected (Discontinued)
SKU
13FG28IR-SQ
Quick Overview
*Product is Discontinued, Call For Replacement Options
2.8mm, F1.2 w/ connector
The Tamron 13FG28IR-SQ is designed for 1/3-inch CCD Day/Night cameras. Special glass and advanced anti-reflective coatings provide accurate auto focus in IR and visible light spectra.
Features:
- 2.8mm F1.2-Close
- DC Auto-Iris
- CS-Mount
| Focal Length | 2.8mm |
| Iris Range | f/1.2 - 360 |
| Iris Operation | Auto-Iris (DC) |
| Focus Operation | Manual |
| Mount | CS |
| 1/3" Angle of View (wide/telephoto) | 93.2° x 70.7° |
| 1/4" Angle of View (wide/telephoto) | 70.7° x 53.4° |
| Focusing Range | 0.2m ~ INF |
| Effective Diameter (Front/Rear Lens) | Ø18.3mm/Ø9.3mm |
| Back Focus (in air) | 8.58mm |
| Operating Voltage | Open 2.5V, Close 0.5V |
| Exit Pupil Position | -336.0mm |
| Registration of Drive coil | 190Ω ± 10% (20°C) |
| Registration of Control coil | 465Ω 10% (20°C) |
| Max Voltage | 6V |
| Weight | 1 lb. |
| Operating Temperature | -20°C ~ 60°C |
