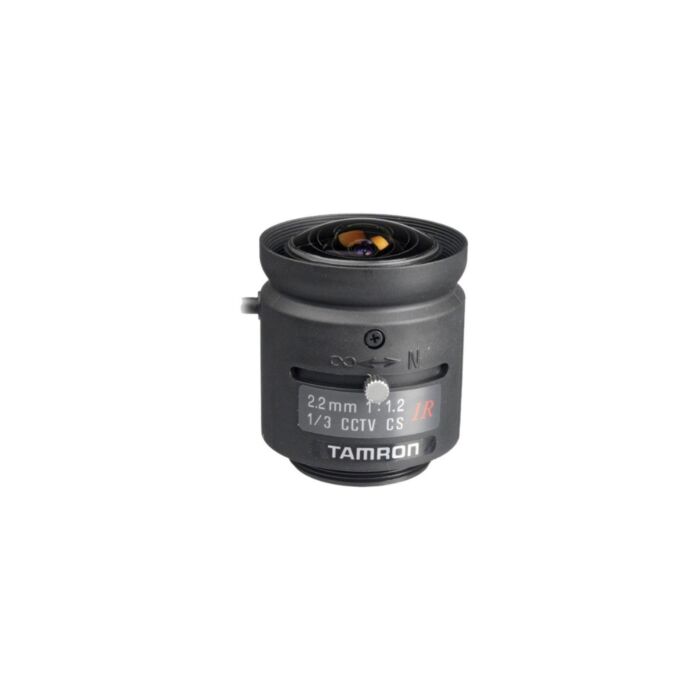

Tamron 13FG22IR-SQ 1/3" IR Mono-Focal Lens (Discontinued)
*Product is Discontinued, Call For Replacement Options
The Tamron 13FG22IR-SQ is a high-performance 1/3" mono-focal lens featuring a 2.2mm focal length, wide field of view, and DC auto iris, making it ideal for industrial and machine vision applications. It offers exceptional clarity and versatility in both standard and infrared imaging environments.
Tamron 13FG22IR-SQ 1/3" IR Mono-Focal Lens: Precision Optics for Industrial & Machine Vision Systems
Aegis Electronic Group Inc. is a leading provider of high-performance imaging solutions, offering cutting-edge optical products designed for industrial and machine vision applications. The Tamron 13FG22IR-SQ 1/3" IR Mono-Focal Lens is a prime example of this commitment to quality and innovation. Featuring a 1/3-inch imager size, 2.2mm focal length, and wide field of view (118.6° horizontal x 90.0° vertical), this lens is ideal for capturing large scenes in high detail, making it perfect for machine vision systems and industrial inspection processes.
The DC auto iris ensures optimal exposure control in varying lighting conditions, while the manual focus with lock provides precision focus for demanding tasks. Built for durability, this lens operates effectively in a wide temperature range of -20°C to +60°C, suitable for harsh industrial environments. Additionally, its IR compatibility enhances imaging capabilities in low-light or infrared settings, making it a versatile choice for surveillance, security, and automated manufacturing systems.
With a weight of only 49g, it is compact and easy to integrate into existing systems. Aegis Electronic Group offers a variety of lenses like the Tamron 13FG22IR-SQ, designed to enhance productivity and accuracy in industrial and machine vision applications.
Features:
- Imager Size: 1/3"
- Mount Type: CS
- Focal Length: 2.2mm
- Aperture Range: 1.2 - 360
- Field of View (1/3): 118.6° (Horizontal) x 90.0° (Vertical)
- Field of View (1/4): 90.0° (Horizontal) x 67.9° (Vertical)
- Focus Operation: Manual with Lock
- Iris Operation: DC Auto Iris
- Back Focus: 7.58mm
- Operating Voltage: Open 2.5V, Close 0.5V
- Operating Temperature Range: -20°C to +60°C
- Weight: 49g
Applications:
- Industrial inspection systems
- Machine vision applications
- Surveillance and security cameras
- Robotics vision systems
- Automated manufacturing systems
- Infrared imaging for low-light environments
- Quality control in production lines
| Imager Size | 1/3 |
| Mount Type | CS |
| Focal Length | 2.2mm |
| Aperture Range | 1.2 - 360 |
| Field of View Angle (Horizontal x Vertical) 1/3 | 118.6° x 90.0° |
| Field of View Angle (Horizontal x Vertical) 1/4 | 90.0° x 67.9° |
| Operation Focus | Manual with Lock |
| Iris | DC Auto Iris |
| Filter Size | -- |
| Back Focus (in air) | 7.58mm |
| Operating Voltage | Open 2.5V, Close 0.5V |
| Weight | 49g |
| Operating Temperature | -20°C to +60°C |
