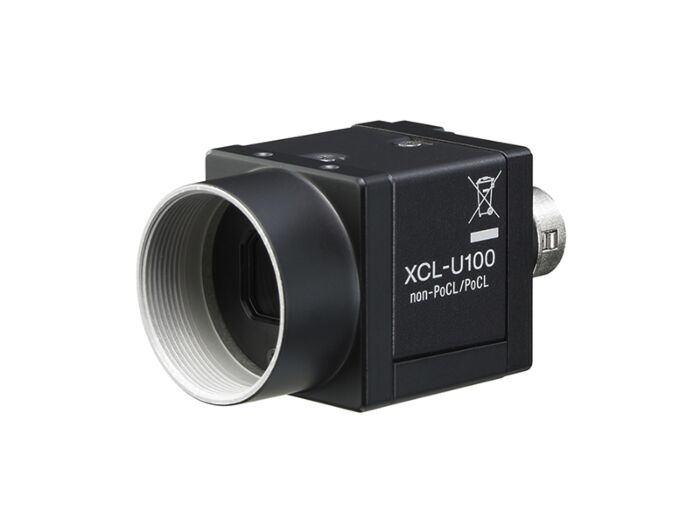

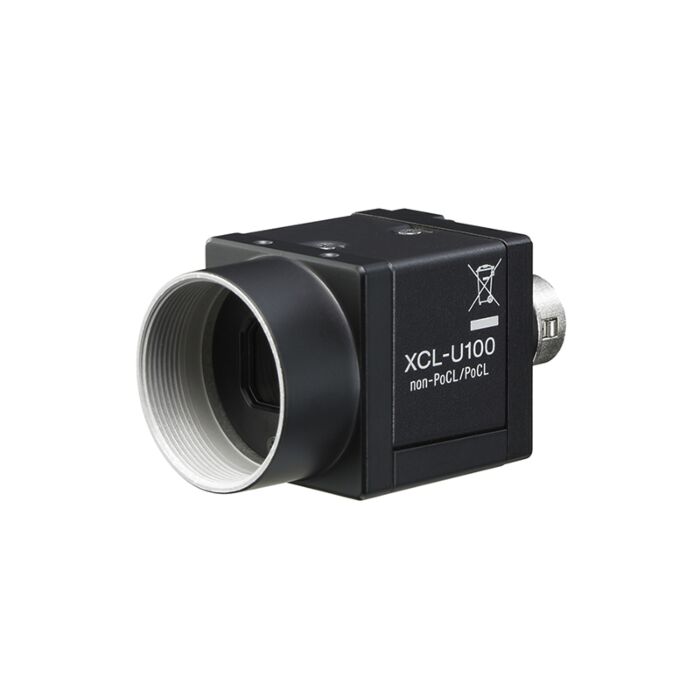

Sony XCL-U100 (XCLU100) Camera Link Camera
SKU
Sony XCLU100
Quick Overview
1600 x 1200, 15 fps, 1/1.8-type PS IT CCD Power Over Camera Link (PoCL) Monochrome Camera.
Sony’s XCL High Resolution Series is the perfect fit for a variety of industrial inspection applications such as microscopy, semiconductors, electronic parts, and display panels. All the cameras in this series conform to the Camera Link standard. Joining the popular XCL High Resolution Series is the extremely compact XCL-U100. This new camera boasts high-resolution images of UXGA resolution, similar to the existing XCL-U1000/U1000C cameras. However, the XCL-U100 and the XCL-5005/5005CR cameras are PoCL-capable, providing users with single-cable operation. The XCL Series delivers outstanding functionality and excellent picture quality, bringing a new level of power and effectiveness to industrial
applications.
| Image Device | 1/1.8 type Progressive Scan IT CCD |
| Standard picture size (H x V) | 1,600 x 1,200 pixels (1,920,000 pixels) |
| Cell size (H x V) | 4.4 x 4.4 μm |
| Resolution depth | 8/10/12 bits/pixel |
| Lens mount | C mount |
| Digital interface | PoCL (Power over Camera Link)/ Standard Camera Link, Base Configuration |
| Frame rate | 15 fps |
| Output data clock | 36 MHz (1 Tap) |
| Sensitivity | 400 lx at F5.6 (0 dB) |
| Minimum illumination | 1 lx (GAIN +18 dB, F1.4) |
| Gain control | 0 to +18 dB |
| White balance | – |
| Readout mode | Normal / Binning / Partial scan |
| Binning | Vertical (1 x 2) |
| Partial scan | Vertical/Horizontal |
| Shutter speed | 2 to 1/10,000 s |
| Shutter mode | External trigger shutter (Trigger start / Trigger start and exposure duration) |
| Extended signal output | DVAL / EXPOSURE / GND output (selectable) |
| Power requirements | DC 12 V |
| Power consumption | 2.2 W |
| Dimensions (W x H x D) | 29 x 29 x 30 mm ( 1 3/16 x 1 3/16 x 1 3/16 inches) (not including protruding parts) |
| Mass | 55 g (2 oz) |
| Operating temperature | -5 to 45 ˚C (23 to 113 ˚F) |
| Storage temperature | -30 to 60 ˚C (-22 to 140 ˚F) |
| Operating humidity | 20 to 80 % (no condensation) |
| Storage humidity | 20 to 95 % (no condensation) |
| Vibration resistance | 10 G (20 to 200 Hz) |
| Shock resistance | 70 G |
| Supplied accessories | Lens mount cap, Operating instructions |
