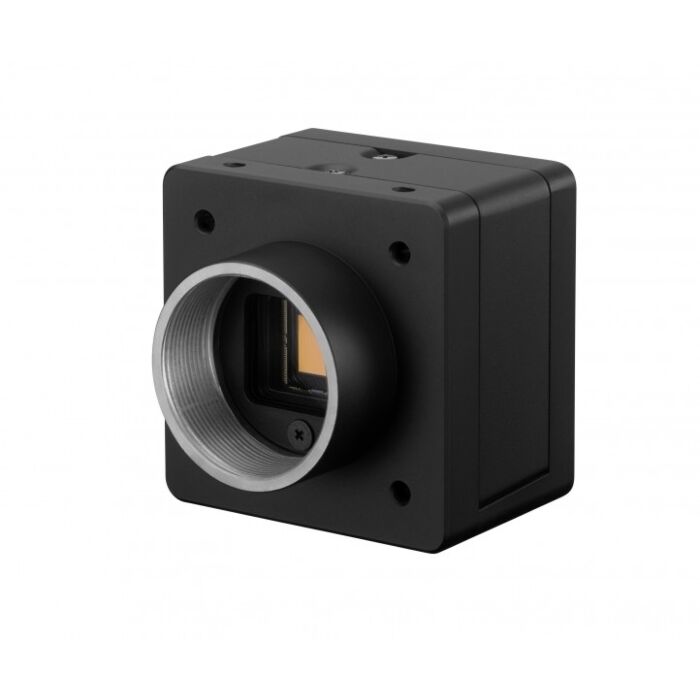

Sony XCL-SG1240C 1.1" type Global Shutter CMOS Pregius 12.4MP 20 fps Camera Link (Color) Camera
The Sony XCL-SG1240C is a high-performance 12.4-megapixel color camera that features Sony's latest Pregius global shutter CMOS sensor. Its 1.1-type GSCMOS sensor technology ensures high-resolution, crisp imaging at a fast 20 frames per second (fps). With a Camera Link interface, this camera provides seamless integration for industrial vision systems and offers a wide range of applications, including factory automation, intelligent transportation systems (ITS), food and beverage inspection, and pharmaceutical quality control.
Built for challenging environments, the XCL-SG1240C delivers exceptional image clarity even in high-motion scenarios, thanks to shading and defect correction features that enhance image uniformity by minimizing uneven lighting and pixel defects. It also incorporates user-set memory channels, enabling quick customization of settings like brightness, gain, and shutter speed for varied operational needs. With robust industrial design, this camera withstands high shock and vibration, ensuring durability in demanding conditions.
Backed by Sony’s commitment to quality, the XCL-SG1240C stands out as a powerful solution for industries that require reliable, high-resolution imaging with the flexibility to meet specific vision requirements.
Features:
- 12.4 MP resolution with 1.1-type Pregius GSCMOS sensor
- Global shutter for precise imaging at up to 20 fps
- Camera Link interface for high-speed data transfer
- Shading and defect correction for improved image quality
- Shock-resistant industrial design for high durability
- Advanced image processing, including frame accumulation and partial scan
Applications:
- Factory Automation
- ITS (Intelligent Transportation Systems)
- Food and Beverage Inspection
- Pharmaceutical Inspection
| Image Size | 12.4 MP |
| Image Sensor | IMX304: 1.1-type Global Shutter CMOS sensor (Pregius) |
| Number of Effective Pixels (H x V) | 4,112 × 3,008 |
| Cell Size (H x V) | 3.45 μm × 3.45 μm |
| Standard Output Pixels (H x V) | 4,096 × 3,000 |
| Color Filter | RGB color mosaic filter |
| Frame Rate | 6 fps (Base, 8 bit, 1 tap, Mono/Raw); 13 fps (Base, 8 bit, 2 tap, Mono/Raw); 20 fps (Base, 8 bit, 3 tap, Mono/Raw) (*At the time of shipment) |
| Minimum Illumination | 12 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/30 s) |
| Sensitivity | F5.6 (2000 lx, Gain: 0 dB, Shutter: 1/30 s) |
| SNR | More than 50 dB (Lens close, Gain: 0 dB, 8 bit) |
| Gain | Auto, Manual: 0 to 18 dB |
| Shutter Speed | Auto, Manual: 60 to 1/100,000 s |
| White Balance | Manual, One push |
| Camera Features | Normal, Binning (1x2, 2x1, 2x2)*1, Partial Scan |
| Readout Features | LUT (Binarization, Gamma (Arbitrary value settable)), Test pattern |
| Synchronization | Hardware trigger, Software trigger |
| Trigger Modes | OFF (Free run), ON (Edge detection, Trigger width detection), Burst trigger |
| Userset | 16 |
| User Memory | 32 kbytes + 64 bytes x 16ch |
| Partial Scan | W (Pixel): 16 to 4,112; H (Line): 4 to 3,008 |
| GPO | EXPOSURE/Strobe/LVAL/FVAL/Sensor lead out/Trigger through/Pulse generation signal/User defined 1, 2, 3, 4 (Output switching) |
| Other Features | Area gain, Defect correction, Shading correction, Temperature readout, LUT, 3 x 3 filter |
| Data Format | Raw8, Raw12, Raw16 |
| Base Clock (No. of Taps) | 45/65/85 MHz switchable |
| Camera Link Taps | 1/2/3 switchable |
| Digital Interface | LVDS |
| Camera Specification | Camera Link® Version2.0 |
| Output Data Clock | 45MHz (1, 2, 3tap) 65MHz (1, 2, 3tap) 85MHz (1, 2, 3tap) |
| Digital I/O | ISO IN (x1), ISO OUT (x2), TTL IN (x1), TTL IN/OUT (x2, selectable) |
| Lens Mount | C mount |
| Flange Back | 17.526 mm |
| Power Requirements | DC +12 V (10.5 V to 15.0 V), PoCL (10 V to 13.0 V) |
| Power Consumption | 3.8 W max. (DC +12V) |
| Operating Temperature | -5°C to +45°C (23°F to 113°F) |
| Performance Guarantee Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -30°C to +60°C (-22°F to +140°F) |
| Operating Humidity | 20% to 80% (no condensation) |
| Storage Humidity | 20% to 80% (no condensation) |
| Vibration Resistance | 10 G (20 Hz to 200 Hz 20 minutes for each direction -x, y, z) |
| Shock Resistance | 70 G |
| Dimensions (W x H x D) | 44 × 44 × 30 mm (excluding protrusions) 1 3/4 × 1 3/4 × 1 3/16 inches (excluding protrusion) |
| Weight | Approx. 86 g |
| MTBF | 64,461 hours (Approx. 7.4 years) |
| Regulations | UL60950-1, FCC Class A, CSA C22.2-No.60950-1, IC Class A Digital Device, CE : EN61326 (Class A), AS EMC: EN61326-1, VCCI Class A, KCC, CU-TR EAC |
| Supplied Accessories | Lens mount cap (1), Safety Regulations*4 (1) |
