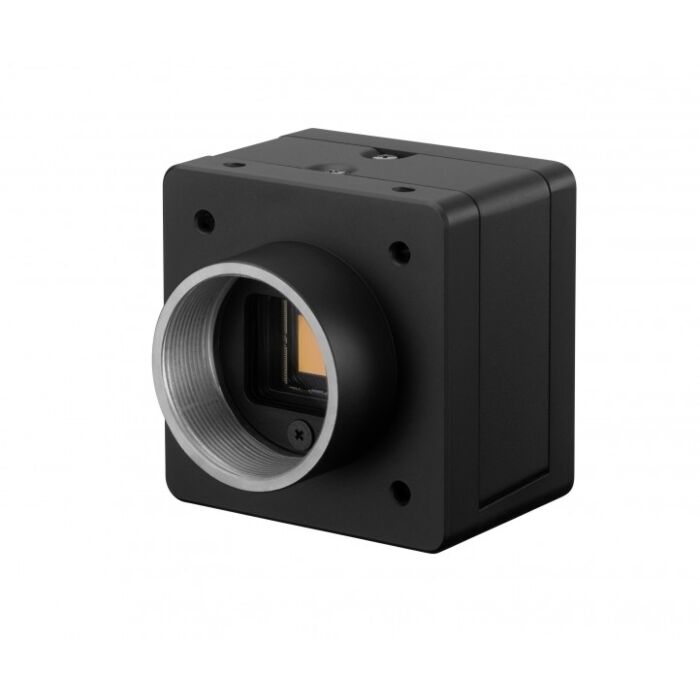

Sony XCL-SG1240 1.1" type Global Shutter CMOS Pregius 12.4MP 20 fps Camera Link (B/W) Camera
The Sony XCL-SG1240 black-and-white industrial camera is designed to bring high-resolution performance to machine vision applications. Built with a 1.1-type Global Shutter CMOS Pregius sensor from Sony, this 12.4MP camera captures crisp, distortion-free images at 20 frames per second, ensuring accurate results in high-speed industrial processes. The Pregius technology at the core of this model maximizes sensitivity and dynamic range, offering superior image quality even in challenging lighting conditions. With its Camera Link interface, the XCL-SG1240 supports fast data transfer, making it an ideal choice for real-time inspection and automation systems that require high throughput.
The camera’s compact design and advanced imaging capabilities make it versatile for a range of applications, from automated inspection and quality control to pharmaceutical packaging and robotics. By integrating this camera, manufacturers gain access to Sony's precision imaging technology, enabling enhanced defect detection, measurements, and product consistency.
For businesses needing to optimize industrial vision systems, the Sony XCL-SG1240 offers a trusted solution, bringing Sony's proven imaging reliability to every frame.
Features:
- 12.4MP 1.1-type Global Shutter CMOS (Pregius)
- High sensitivity for low-light conditions
- Fast 20 fps capture for high-speed applications
- Compact design with Camera Link interface
- High dynamic range for clear, accurate imaging
Applications:
- Automated quality control in manufacturing
- Precision inspection in electronics
- Pharmaceutical packaging line monitoring
- Robotics
- Defect detection
| Image Size | 12.4 MP |
| Image Sensor | IMX304: 1.1-type Global Shutter CMOS sensor (Pregius) |
| Number of Effective Pixels (H x V) | 4,112 × 3,008 |
| Cell Size (H x V) | 3.45 μm × 3.45 μm |
| Standard Output Pixels (H x V) | 4,096 × 3,000 |
| Frame Rate | 6 fps (Base, 8 bit, 1 tap, Mono/Raw); 13 fps (Base, 8 bit, 2 tap, Mono/Raw); 20 fps (Base, 8 bit, 3 tap, Mono/Raw) (*At the time of shipment) |
| Minimum Illumination | 0.5 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/30 s) |
| Sensitivity | F5.6 (400 lx, Gain: 0 dB, Shutter: 1/30 s) |
| SNR | More than 50 dB (Lens close, Gain: 0 dB, 8 bit) |
| Gain | Auto, Manual: 0 to 18 dB |
| Shutter Speed | Auto, Manual: 60 to 1/100,000 s |
| Camera Features | Normal, Binning (1x2, 2x1, 2x2)*1, Partial Scan |
| Readout Features | LUT (Binarization, Gamma (Arbitrary value settable)), Test pattern |
| Synchronization | Hardware trigger, Software trigger |
| Trigger Modes | OFF (Free run), ON (Edge detection, Trigger width detection), Burst trigger |
| Userset | 16 |
| User Memory | 32 kbytes + 64 bytes x 16ch |
| Partial Scan | W (Pixel): 16 to 4,112; H (Line): 4 to 3,008 |
| GPO | EXPOSURE/Strobe/LVAL/FVAL/Sensor lead out/Trigger through/Pulse generation signal/User defined 1, 2, 3, 4 (Output switching) |
| Other Features | Area gain, Defect correction, Shading correction, Temperature readout, LUT, 3 x 3 filter |
| Data Format | Raw8, Raw12, Raw16 |
| Serial Interface | GigE Vision (Gigabit Ethernet) |
| Power Consumption | 6 W |
| Operating Temperature | 0 to 50°C |
| Weight | Approx. 86 g |
