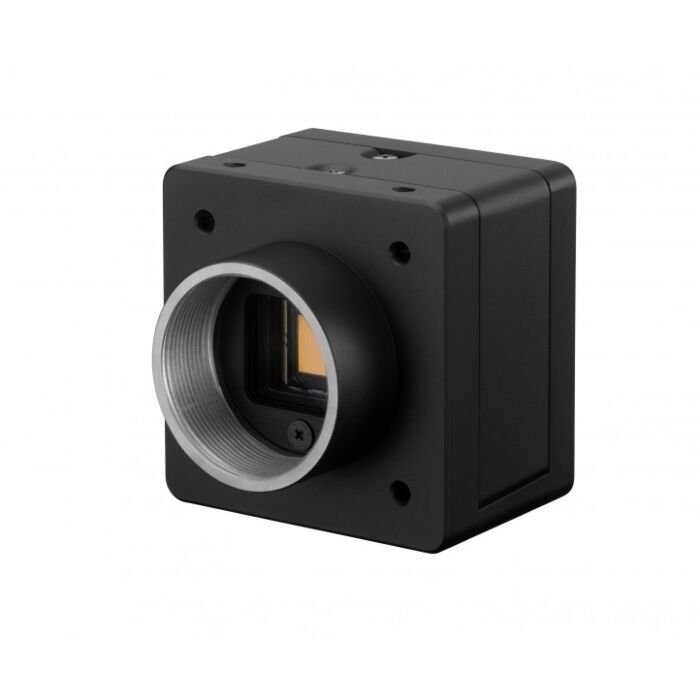

Sony XCL-CG510C 2/3-type Global Shutter CMOS Pregius 5.1MP 35fps Sony IMX264 Camera Link (Color) Camera
The Sony XCL-CG510C camera incorporates advanced Pregius Global Shutter CMOS sensor technology, designed for high-performance machine vision applications. Featuring the IMX264 sensor, this camera captures crisp, clear 5.1MP images at 35 frames per second, offering exceptional precision and speed. Its Camera Link interface ensures rapid, uncompressed image data transfer, essential for high-speed inspection in industries such as factory automation, food and beverage, and pharmaceuticals.
Equipped with advanced image processing capabilities, the XCL-CG510C enhances image quality through shading correction, defect correction, and area gain functions, reducing the need for external processing. This makes it ideal for environments with varying lighting conditions or where high-quality, distortion-free imaging is crucial.
The XCL-CG510C also features a high frame rate, enabling it to capture fast-moving objects without sacrificing image quality, while maintaining smooth and reliable image transfer. Its industrial design resists shock and vibration, ensuring durability in harsh environments. With the ability to store up to 16 user-defined settings, the camera adapts easily to different operational needs.
Maximize efficiency in your vision system with Sony’s cutting-edge technology. Contact us to learn more about how the XCL-CG510C can streamline your machine vision application!
Features:
- 5.1MP resolution for detailed imaging
- 35fps frame rate for smooth, high-speed capture
- Global Shutter CMOS technology for distortion-free images
- Camera Link interface for high-speed data transfer
- Shading and Defect Correction for superior image quality
- Area Gain for optimized image contrast
- Bulk and Sequential Trigger modes for flexible operation
- Temperature readout to monitor camera performance
- User-defined memory channels for easy setup adjustments
- High durability against shock and vibration
Applications:
- Factory Automation
- Food and Beverage Inspection
- Pharmaceuticals
- Transportation Systems (ITS)
- Robotics
| Image Sensor | IMX264: 2/3-type Global Shutter CMOS sensors (Pregius) |
| Number of Effective Pixels (H x V) | 2,464 × 2,056 |
| Cell Size (H x V) | 3.45 μm × 3.45 μm |
| Standard Output Pixels (H x V) | 2,448 × 2,048 |
| Color Filter | RGB color mosaic filter |
| Frame Rate | 14 fps (Base, 8 bit, 1 tap, Mono/Raw) 28 fps (Base, 8 bit, 2 tap, Mono/Raw)* 35 fps (Base, 8 bit, 3 tap, Mono/Raw) *At the time of shipment |
| Minimum Illumination | 12 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/30 s) |
| Sensitivity | F5.6 (2000 lx, Gain: 0 dB, Shutter: 1/30 s) |
| SNR | More than 50 dB (Lens close, Gain: 0 dB, 8 bit) |
| Gain | Auto, Manual: 0 dB to 18 dB |
| Shutter Speed | Auto, Manual: 60 to 1/100,000 s |
| White Balance | Manual, One push |
| Camera Features | Readout Modes Normal, Partial Scan |
| Readout Features | LUT (Binarization, Gamma (Arbitrary value settable)), Test pattern |
| Synchronization | Hardware trigger, Software trigger |
| Trigger Modes | OFF (Free run), ON (Edge detection, Trigger width detection), Special trigger (Burst triggerr/Bulk trigger*/Sequential trigger*) *Except XCL-CG160/CG160C |
| User Set | 16 |
| User Memory | 32 kbytes + 64 bytes × 16 channels |
| Partial Scan | W (Pixel) 16 to 2,464 H (Line) 4 to 2,056 |
| GPO | EXPOSURE/Strobe/LVAL/FVAL/Sensor lead out/Trigger through/ Pulse generation signal/User defined 1, 2, 3 (Output switching) |
| Other Features | Area gain, Defect correction, Shading correction, Temperature readout, LUT, 3 x 3 filter |
| Video Data Output | digital Raw 8, 10, 12 bit (at the time of shipping 8 bit) digital RGB 24 bit |
| Base Clock (No. Of Taps) | 45/75 MHz switchable |
| Camera Link Tap | 1/2/3 switchable |
| Digital Interface | LVDS |
| Camera Specification | Camera Link® Version2.0 |
| Output Data Clock | 45 MHz (1,2,3 tap) 75 MHz (1,2,3 tap) |
| Digital I/O | 45 MHz (1,2,3 tap) 75 MHz (1,2,3 tap) |
| Lens Mount | C mount |
| Flange Back | 17.526 mm |
| Power Requirements | DC +12 V (10.5 V to 15.0 V), PoCL (10 V to 13.0 V) |
| Power Consumption | DC +12 V 2.7 W (max.) |
| Operating Temperature | –5 °C to +45 °C (23 °F to 113 °F) |
| Performance Guarantee Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 20% to 80% (no condensation) |
| Storage Humidity | 20% to 80% (no condensation) |
| Vibration Resistance | 10 G (20 Hz to 200 Hz 20 minutes for each direction -x, y, z ) |
| Shock Resistance | 70 G |
| Dimensions (W x H x D) | 29 × 29 × 30 mm (1 3/16 × 1 3/16 × 1 3/16 inches) (excluding protrusions) |
| Mass | Approx. 53 g (1.9 oz) |
| MTBF | 81,562 hours (Approx. 9.3 years) |
| Regulations | UL60950-1, FCC Class A, CSA C22.2-No.60950-1, IC Class A Digital Device, CE : EN61326 (Class A), AS EMC: EN61326-1, VCCI Class A, KCC, CU-TR EAC |
| Supplied Accessories | Lens mount cap (1), Safety Regulations (1) |
