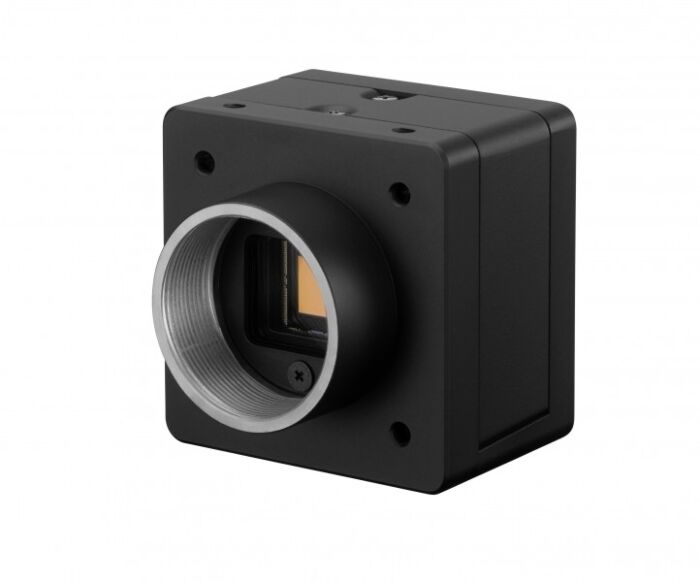

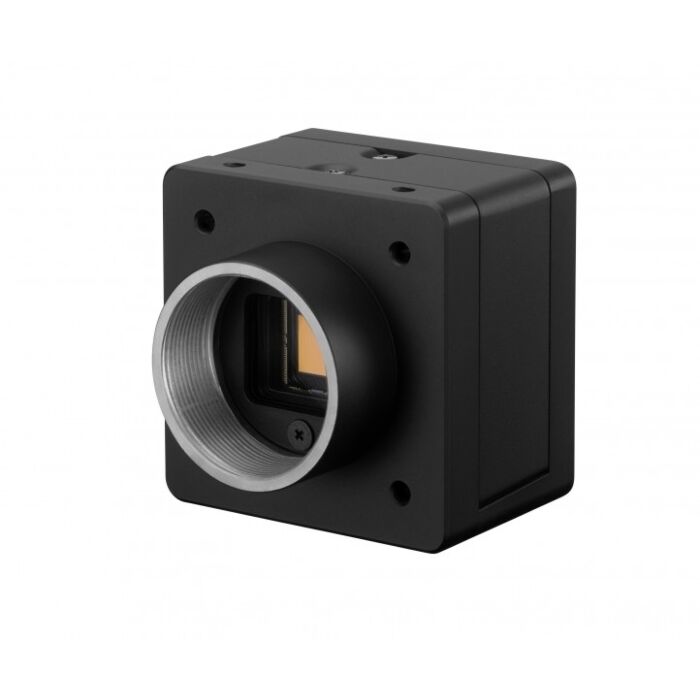

Sony XCL-CG510 2/3-type Global Shutter CMOS Pregius 5.1MP 35fps Sony IMX264 Camera Link (B/W) Camera
The Sony XCL-CG510 camera features the Sony IMX264 Pregius Global Shutter CMOS sensor with a 5.1MP resolution and 35fps at full resolution, delivering high-speed, distortion-free imaging for fast-moving objects. Its Global Shutter technology eliminates motion artifacts, making it perfect for dynamic industrial and machine vision tasks.
Equipped with a Camera Link interface and PoCL (Power over Camera Link), the XCL-CG510 ensures efficient, high-bandwidth data transfer, simplifying system integration. It also incorporates advanced image processing capabilities like Defect Correction and Shading Correction, improving image quality by compensating for faulty pixels and uneven lighting.
The camera supports Bulk Trigger mode for capturing up to 16 images in rapid succession and Sequential Trigger mode, enabling flexible imaging setups with varying parameters. Designed for durability, the XCL-CG510 is shock and vibration resistant, making it suitable for demanding industrial environments. An internal temperature sensor provides real-time monitoring to prevent overheating and optimize performance.
Features:
- 5.1MP Sony IMX264 Global Shutter CMOS Sensor
- 35 fps at Full Resolution for high-speed, real-time image capture
- Camera Link Interface with PoCL for high-speed data transfer
- Advanced Image Processing: Defect Correction, Shading Correction, Area Gain
- Multiple Trigger Modes: Bulk, Sequential, and Free Run
- Internal Temperature Sensor for monitoring operational conditions
- Shock & Vibration Resistant: Durable for harsh industrial environments
- Customizable LUTs for tailored image processing
- Memory Channels: Store up to 16 camera settings for fast configuration changes
Applications:
- Factory Automation
- Pharmaceutical Inspection
- Food & Beverage
- Machine Vision Systems
- ITS (Intelligent Transportation Systems)
| Image Sensor | IMX264: 2/3-type Global Shutter CMOS sensors (Pregius) |
| Number of Effective Pixels (H x V) | 2,464 × 2,056 |
| Cell Size (H x V) | 3.45 μm × 3.45 μm |
| Standard Output Pixels (H x V) | 2,448 × 2,048 |
| Frame Rate | 14 fps (Base, 8 bit, 1 tap, Mono/Raw) 28 fps (Base, 8 bit, 2 tap, Mono/Raw)* 35 fps (Base, 8 bit, 3 tap, Mono/Raw) *At the time of shipment |
| Minimum Illumination | 0.5 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/30 s) |
| Sensitivity | F5.6 (400 lx, Gain: 0 dB, Shutter: 1/30 s) |
| SNR | More than 50 dB (Lens close, Gain: 0 dB, 8 bit) |
| Gain | Auto, Manual: 0 dB to 18 dB |
| Shutter Speed | Auto, Manual: 60 to 1/100,000 s |
| Camera Features | Readout Modes Normal, Binning (1x2, 2x1, 2x2)*1, Partial scan |
| Readout Features | LUT (Binarization, Gamma (Arbitrary value settable)), Test pattern |
| Synchronization | Hardware trigger, Software trigger |
| Trigger Modes | OFF (Free run), ON (Edge detection, Trigger width detection), Special trigger (Burst triggerr/Bulk trigger*/Sequential trigger*) *Except XCL-CG160/CG160C |
| User Set | 16 |
| User Memory | 32 kbytes + 64 bytes × 16 channels |
| Partial Scan | W (Pixel) 16 to 2,464 H (Line) 4 to 2,056 |
| GPO | EXPOSURE/Strobe/LVAL/FVAL/Sensor lead out/Trigger through/ Pulse generation signal/User defined 1, 2, 3 (Output switching) |
| Other Features | Area gain, Defect correction, Shading correction, Temperature readout, LUT, 3 x 3 filter |
| Video Data Output | digital Mono 8, 10, 12 bit (at the time of shipping 8bit) |
| Base Clock (No. Of Taps) | 45/75 MHz switchable |
| Camera Link Tap | 1/2/3 switchable |
| Digital Interface | LVDS |
| Camera Specification | Camera Link® Version2.0 |
| Output Data Clock | 45 MHz (1,2,3 tap) 75 MHz (1,2,3 tap) |
| Digital I/O | 45 MHz (1,2,3 tap) 75 MHz (1,2,3 tap) |
| Lens Mount | C mount |
| Flange Back | 17.526 mm |
| Power Requirements | DC +12 V (10.5 V to 15.0 V), PoCL (10 V to 13.0 V) |
| Power Consumption | DC +12 V 2.7 W (max.) |
| Operating Temperature | –5 °C to +45 °C (23 °F to 113 °F) |
| Performance Guarantee Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 20% to 80% (no condensation) |
| Storage Humidity | 20% to 80% (no condensation) |
| Vibration Resistance | 10 G (20 Hz to 200 Hz 20 minutes for each direction -x, y, z ) |
| Shock Resistance | 70 G |
| Dimensions (W x H x D) | 29 × 29 × 30 mm (1 3/16 × 1 3/16 × 1 3/16 inches) (excluding protrusions) |
| Mass | Approx. 53 g (1.9 oz) |
| MTBF | 81,562 hours (Approx. 9.3 years) |
| Regulations | UL60950-1, FCC Class A, CSA C22.2-No.60950-1, IC Class A Digital Device, CE : EN61326 (Class A), AS EMC: EN61326-1, VCCI Class A, KCC, CU-TR EAC |
| Supplied Accessories | Lens mount cap (1), Safety Regulations (1) |
