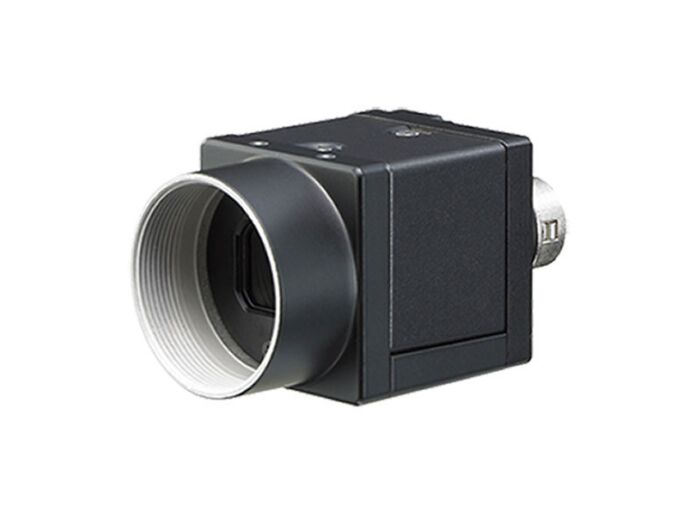

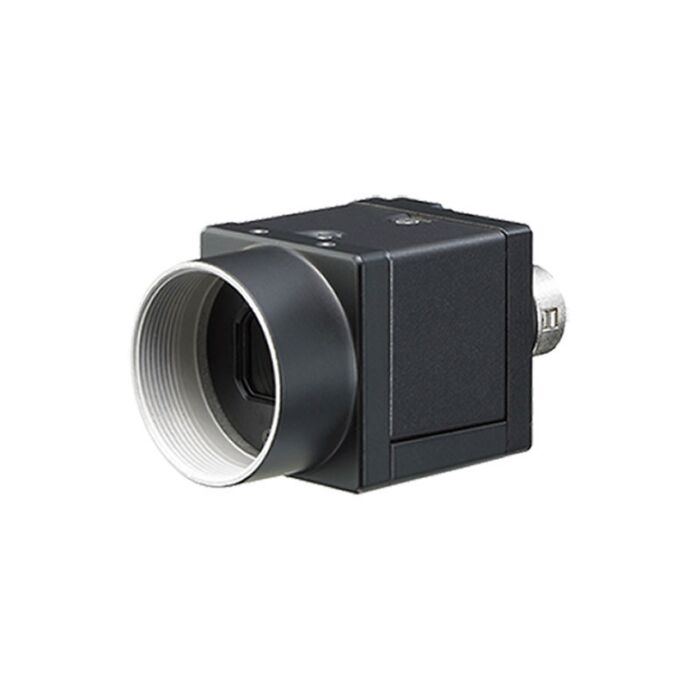

Sony XCL-C30C Color Digital PoCL CameraLink Video Camera (Discontinued)

Quick Overview

*Product is Discontinued, Call For Replacement Options

659 pixels x 494,1/3"-type progressive scan IT CCD.

Sony has made it easier than ever for customers to migrate from analog to digital with the introduction of the new COLOR PoCL camera, the XCL-C30C. Featuring VGA resolution of 659 x 494 effective pixels, this camera offers exciting new options for a wide array of applications, including Intelligent Transportation Systems, machine vision and sports shooting. The XCLC30C camera is equipped with several unique features, including Shading Correction, Defect Correction and Temperature Readout.

Features:

  • Shading Correction: Minimizes uneven image intensity caused by lighting conditions.
  • Defect Correction: Automatically minimizes defective pixels directly inside the camera.
  • Temperature readout: Eliminates the need for a separate sensor and simplifies system configuration.
  • Memory Channel: Up to 16 sets of camera parameters can be stored in addition to the factory default settings.
  • Bulk Trigger Modes: Allows the camera to capture up to 16 images in rapid succession using a single hardware or software trigger.
  • Sequential Trigger Mode: Allows the camera to capture a single image using successive setups stored in the memory channel.
Image sensor1/3-type progressive scan IT CCD
effective pixels659 x 494
Cell size (H xV)7.4 μm x 7.4 μm
Output image (H xV)1,280 x 960
SensitivityF5.6 (2000 lx, Gain: 0 dB)
Lens MountC Mount
Frame rate130 fps
GainAuto, Manual: 0 dB to +18 dB
Trigger Shutter2 s to 1/100,000 s
Minimum Illumination1.5 lx (Iris: F1.4, Gain: +18 dB, Shutter 1/90s)
Dimensions (W x H x D)29 x 29 x 30 mm (1 3/16 x 1 3/16 x 1 3/16 in)
Weight56 g (2.0 oz)
Operating Temperature-5°C to +45° C (23°F to +140°F)
Storage Temperature-30°C to +60°C (22°F to +140°F)
Operating Humidity20% to 80% (no condensation)
Storage Humidity20% to 95% (no condensation)
Vibration Resistance10 G (20 Hz to 200 Hz)
Shock Resistance70 G
