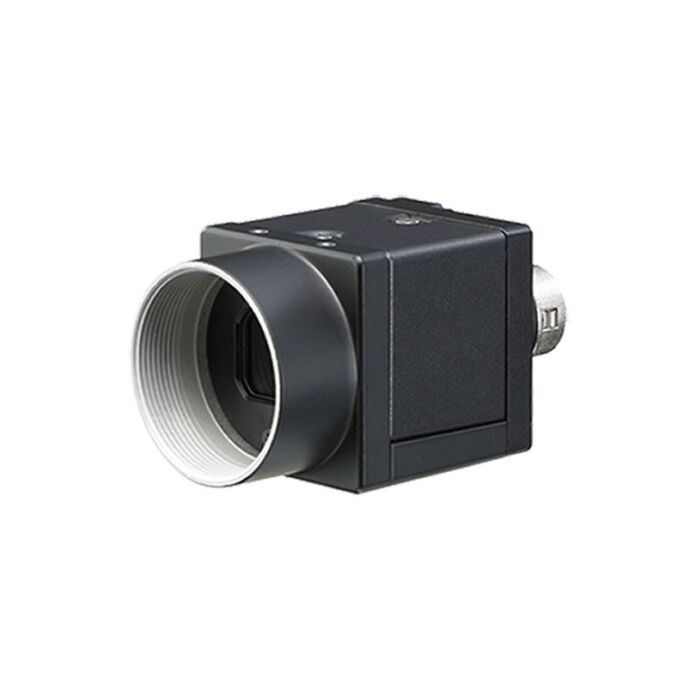

Sony XCL-C280C 2.8MP Camera Link PoCL Color Camera | Near Infrared Machine Vision Camera
*In Stock Now Only 2 Left
The Sony XCL-C280C is a 2.8 megapixel Camera Link PoCL color machine vision camera designed for high-performance industrial imaging, intelligent transportation systems, and scientific imaging applications. Featuring a 1/1.8" progressive scan CCD sensor with 1940 × 1460 resolution, the XCL-C280C delivers excellent image quality in both visible and near-infrared (NIR) environments.
The Sony XCL-C280C Camera Link camera is part of Sony’s high-performance XCL series PoCL machine vision cameras, designed to simplify the migration from analog imaging systems to high-resolution digital imaging.
Built around a 1/1.8-inch progressive scan CCD sensor, the XCL-C280C delivers 2.8 megapixel resolution (1940 × 1460) with excellent color reproduction and strong performance in near-infrared illumination environments.
With support for Power over Camera Link (PoCL), the XCL-C280C reduces cabling complexity by allowing power and data transmission through a single Camera Link cable. This makes integration easier in industrial automation, machine vision inspection systems, traffic monitoring, and scientific imaging setups.
The camera features advanced onboard image processing tools including shading correction to compensate for uneven lighting, defect correction to eliminate pixel imperfections, and memory channels capable of storing up to 16 custom camera configurations. These features allow engineers to quickly switch imaging setups without reprogramming the system.
Compact and lightweight at 29 × 29 × 30 mm, the Sony XCL-C280C integrates easily into tight spaces while maintaining industrial durability for continuous operation.
The Sony XCL-C280C is an ideal Camera Link solution for high-precision imaging systems requiring stable frame rates, flexible triggering, and reliable near-infrared performance.
Features:
- 2.8 Megapixel Resolution – 1940 × 1460 progressive scan CCD sensor
- Camera Link with PoCL – Single cable power and data transmission
- Near Infrared Sensitivity – Ideal for NIR machine vision applications
- 26 fps Frame Rate – Stable high-speed image acquisition
- Shading Correction – Compensates for uneven lighting conditions
- Defect Pixel Correction – Automatically corrects defective pixels
- Bulk Trigger Mode – Capture up to 16 images per trigger
- Sequential Trigger Mode – Multi-setup capture capability
- Memory Channels – Store up to 16 camera configurations
- Compact Industrial Design – 29 × 29 × 30 mm housing
Applications:
- Industrial Inspection
- Machine Vision
- Traffic Monitoring
- Scientific Imaging
- Sports Analysis
- Automation Systems
- Factory Vision
| Image sensor | 1/1.8-type progressive scan IT CCD |
| Effective pixels | 1,940 x 1,460 |
| Cell size (H xV) | 3.69 μm x 3.69 μm |
| Output pixels (H xV) | 1,920 x 1,440 |
| Sensitivity | F5.6 (400 lx, Gain: 0 dB) |
| Lens Mount | C Mount |
| Frame rate | 26 fps |
| Gain | Auto, Manual: 0 dB to +18 dB |
| Trigger Shutter | 2 s to 1/100,000 s |
| Partial Scan | H: 16 to 1940 V: 2 to 1460 Steps of 2 |
| Binning | 2 x 1, 1 x 2, 2 x 2 |
| Minimum Illumination (50%) | 0.5 lx (Iris: F1.4, Gain:+18 dB, Shutter 1/25 s) |
| Dimensions (W x H x D) | 29 x 29 x 30 mm (1 3/16 x 1 3/16 x 1 3/16 in) |
| Weight | 56 g (2.0 oz) |
| Operating Temperature | -5°C to +45° C (23°F to +140°F) |
| Storage Temperature | -30°C to +60°C (22°F to +140°F) |
| Operating Humidity | 20% to 80% (no condensation) |
| Storage Humidity | 20% to 95% (no condensation) |
| Vibration Resistance | 10 G (20 Hz to 200 Hz) |
| Shock Resistance | 70 G |
