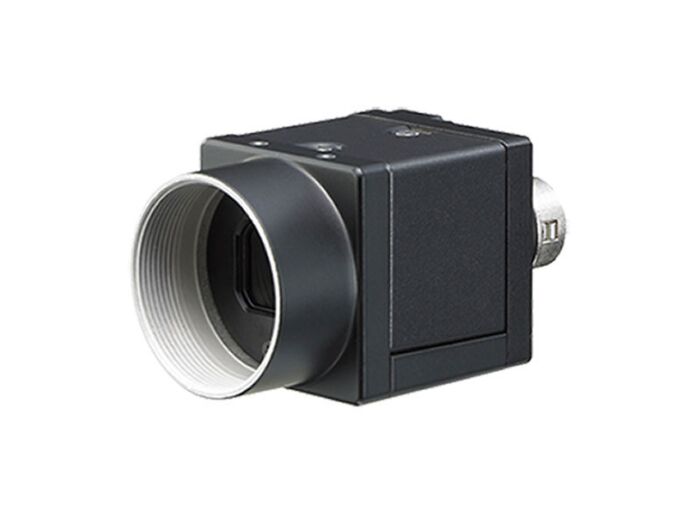

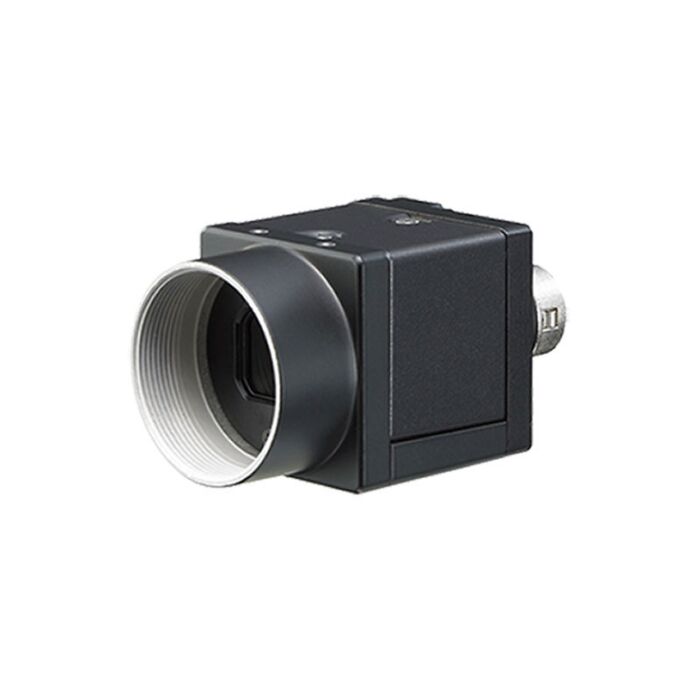

Sony XCL-C130C (XCLC130C) Color Digital PoCL CameraLink Video Camera

QUICK OVERVIEW

*Product is discontinued

1,296 x 966, 1/3-type progressive scan IT CCD.

SKU
Sony XCLC130C
Request a Quote
Email to a Friend

Sony has made it easier than ever for customers to migrate from analog to digital with the introduction of the new COLOR PoCL camera, the XCL-C130C. Featuring SXGA resolution of 1,296 x 966 effective pixels, this camera offers offer exciting new options for a wide array of applications, including Intelligent Transportation Systems, machine vision and sports shooting. The XCL-C130 camera is equipped with several unique features, including Shading Correction, Defect Correction and Temperature Readout.

Features:

  • Shading Correction: Minimizes uneven image intensity caused by lighting conditions.
  • Defect Correction: Automatically minimizes defective pixels directly inside the camera.
  • Temperature readout: Eliminates the need for a separate sensor and simplifies system configuration.
  • Memory Channel: Up to 16 sets of camera parameters can be stored in addition to the factory default settings.
  • Bulk Trigger Modes: Allows the camera to capture up to 16 images in rapid succession using a single hardware or software trigger.
  • Sequential Trigger Mode: Allows the camera to capture a single image using successive setups stored in the memory channel.
    • Image sensor1/3-type progressive scan IT CCD
    effective pixels1,296 x 966
    Cell size (H xV)3.75 μm x 3.75 μmn
    Output pixels (H xV)1,280 x 960
    SensitivityF5.6 (2000 lx, Gain: 0 dB)
    Lens MountC Mount
    Frame rate31 fps
    GainAuto, Manual: 0 dB to +18 dB
    Trigger Shutter2 s to 1/100,000 s
    White BalanceOne-push WB, Manual
    Partial ScanH: 16 to 1296 v: 2 to 1966 Steps of 2
    Binning2 x 1, 1 x 2, 2 x 2
    Minimum Illumination (50%)0.5 lx (Iris: F1.4, Gain:+18 dB, Shutter:1/30 s)
    Dimensions (W x H x D)29 x 29 x 30 mm (1 3/16 x 1 3/16 x 1 3/16 in)
    Weight56 g (2.0 oz)
    Operating Temperature-5°C to +45° C (23°F to +140°F)
    Storage Temperature-30°C to +60°C (22°F to +140°F)
    Operating Humidity20% to 80% (no condensation)
    Storage Humidity20% to 95% (no condensation)
    Vibration Resistance10 G (20 Hz to 200 Hz)
    Shock Resistance70 G
