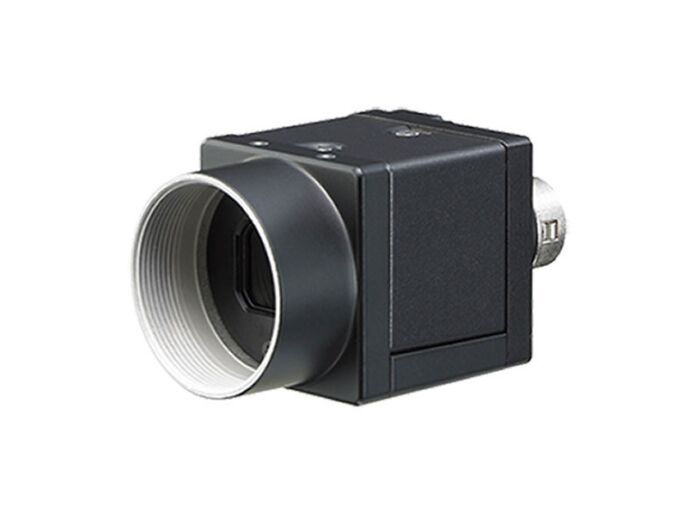

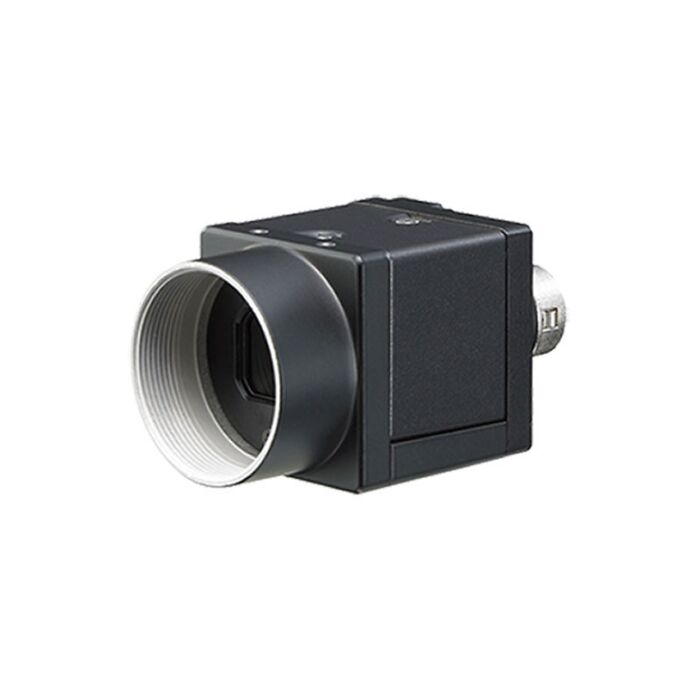

Sony XCL-C130 (XCLC130) Monochrome Digital PoCL CameraLink Video Camera Progressive Scan

Name: Sony XCL-C130 (XCLC130) Monochrome Digital PoCL CameraLink Video Camera Progressive Scan
Brand: Sony
SKU: Sony XCLC130

SKU

Sony XCLC130

Quick Overview

*Product is discontinued

1,296 x 966, 1/3-type progressive scan IT CCD.

Features:

Near-Infrared Sensitivity: Utilizing Sony's EXview HAD CCD II technology, the XCL-C280 camera captures clear images in NIR wavelengths.

Shading Correction: Minimizes uneven image intensity caused by lighting conditions.

Defect Correction: Automatically minimizes defective pixels directly inside the camera.

Temperature readout: Eliminates the need for a separate sensor and simplifies system configuration.

Memory Channel: Up to 16 sets of camera parameters can be stored in addition to the factory default settings.

Bulk Trigger Modes: Allows the camera to capture up to 16 images in rapid succession using a single hardware or software trigger.

Sequential Trigger Mode: Allows the camera to capture a single image using successive setups stored in the memory channel.

Image sensor	1/3-type progressive scan IT CCD
effective pixels	1,296 x 966
Cell size (H xV)	3.75 μm x 3.75 μmn
Output pixels (H xV)	1,280 x 960
Output pixels (H xV, Full resolution)	1,296 x 966
Frame rate	31 fps
Minimum Illumination (50%)	0.5 lx (Iris: F1.4, Gain:+18 dB, Shutter:1/30 s)
Sensitivity	F5.6 (400 Ix, Gain:0 dB)
S/N ratio	More than 50 dB
Gain	Auto, Manual: 0 dB to +18 dB
Shutter speed	2 s to 1/100,000 s
Readout features	Binnarization, Gamma (variable), Built-in test pattern, LUT
Readout modes	Normal, Binning (2 x 1, 1 x 2, 2 x 2), Partial scan
Synchronization	Hardware trigger, Software trigger
Trigger modes	Edge detection, Pulse width detection, Bulk Trigger, Sequential Trigger
Memory channel (Usersets)	16 channels
User memory	32 kbytes + 64 bytes x 16ch
Other features	Shading correction, Defect correction,Temperalure
Video Data Output	8, 10, 12-bit, digital
Digital interface	LVDS
Camera specification	PoCL, CameraLink© Version1.2
Digital input/output	TTL IN (x3),TTL OUT (x3)
Lens Mount	C Mount
Power requirements	DC +12 V (+10.5 V to +15.0 V)
Power consumption	2.4 W (typical)
Operating temperature	-5°C to +45°C (23°F to +113°F)
Performance guarantee temperature	0°C to 40°C (32°F to +104°F)
Storage temperature	-30°C to +60°C (-22°F to +140°F)
Operating humidify	20% to 80% (no condensation)
Storage humidify	20% to 95% (no condensation)
Vibration resistance	10 G (20 Hz to 200 Hz)
Shock resistance	70 G
