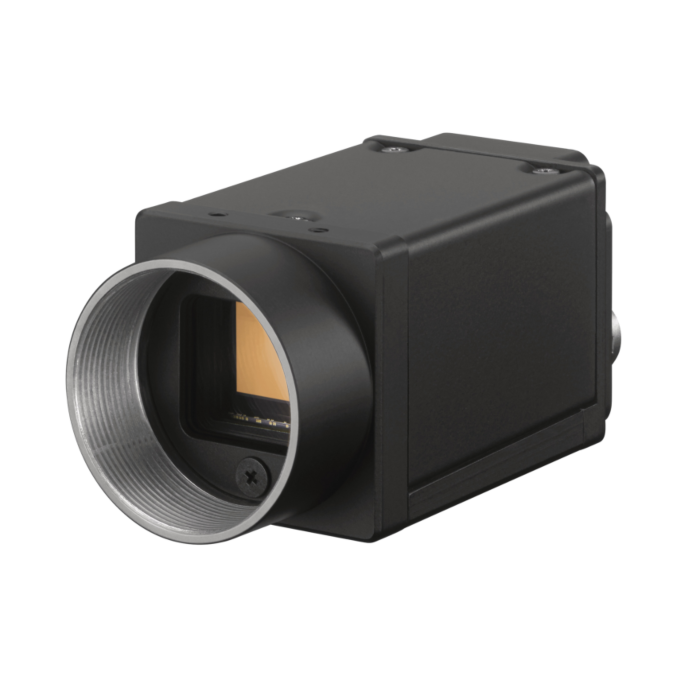

Sony XCG-CP510_XPL-SDKLJ 2/3-Type Polarized GS CMOS 5.1MP Camera For AI Systems
The Sony XCG-CP510, a 5.1-megapixel polarization camera, features a high-performance 2/3-type CMOS sensor with the Sony Pregius global shutter, delivering crisp and accurate image capture at 23 frames per second. This camera includes advanced polarized image processing capabilities through Sony’s XPL-SDKLJ software, optimized for NVIDIA Jetson AI systems, allowing it to handle complex tasks in industrial automation and vision applications. Each pixel in the sensor has one of four linear polarization filters, enabling simultaneous capture of four different polarized images for enhanced surface, reflection, and material analysis.
Designed for high-precision requirements, the XCG-CP510’s polarized imaging and DoP calculation ensure detailed inspection, particularly in automotive imaging, electronics inspection, and material handling. With edge computing capabilities, it reduces data transmission costs, allows for instantaneous processing, and supports compact system designs. Key applications include identifying smartphone use or seatbelt compliance in Intelligent Transport Systems (ITS), automotive windshield reflection cancellation, and high-detail inspection in assembly line and production environments.
Feature:
- 2/3-type CMOS sensor with Sony Pregius global shutter
- 5.1MP resolution, capturing 23 fps for high-quality imaging
- Polarization SDK for NVIDIA Jetson AI compatibility
- GigE Vision 2.0 interface with PoE/DC 12V support
- Noise reduction and image stabilization features
- Real-time processing and reflection control capabilities
Application:
- Automotive Imaging
- Electronics Inspection
- Industrial Quality Control
- Intelligent Transport Systems (ITS)
- Material Handling & Robotics
| B/W / Color | B/W |
| Image Size | 5.1 MP |
| Image Sensor | IMX250 (Polarization image sensor) 2/3-type CMOS with a global shutter function (Pregius) |
| Number of Effective Pixels (H x V) | 2,464 × 2,056 |
| Cell Size (H x V) | 3.45 μm × 3.45 μm |
| Standard Output Pixels (H x V) | 2,448 × 2,048 |
| Frame Rate | 23 fps (8 bit, Mono/Raw) |
| Minimum Illumination | 1.5 lx (iris: F1.4, Gain: +18 dB, Shutter: 1/23 s) |
| Sensitivity | F4 (400 lx, Gain: 0 dB, Shutter: 1/23 s) |
| SNR | More than 50 dB (Lens close, Gain: 0 dB, 8 bit) |
| Gain | Auto, Manual: 0 dB to 18 dB |
| Shutter Speed | Auto, Manual: 60 to 1/100,000 s |
| Camera Features | Readout Modes (Normal, Partial scan), Test pattern |
| Synchronization | Hardware trigger, Software trigger, PTP (IEEE1588) |
| Trigger Modes | OFF (Free run), ON (Edge detection, Trigger width detection), Special trigger (Burst trigger, Bulk trigger, Sequential trigger, Free set sequence) |
| User Set | 16 |
| User Memory | 64 kbytes + 64 bytes × 16 channels |
| Partial Scan | W (Pixel): 16 to 2,464; H (Line): 16 to 2,056 |
| GPO | EXPOSURE/Strobe/Sensor lead out/Trigger through/Pulse generation signal/User defined 1, 2, 3 (selectable) |
| Other Features | Area gain, Defect correction, Shading correction, Temperature readout |
| Interface | Gigabit Ethernet (1000BASE-T/100BASE-TX) |
| Video Data Output | Digital Mono8, 10, 12 bit (default setting 8 bit) |
| Camera Specification | GigE Vision® Version 2.0/1.2 |
| Digital I/O | ISO IN (x1), TTL IN/OUT (x2, selectable) |
| Lens Mount | C mount |
| Flange Back | 17.526 mm |
| Power Requirements | DC +12 V (10.5 V to 15.0 V), IEEE802.3af (37 V to 57 V) |
| Power Consumption | DC +12 V 3.3 W (max.), IEEE802.3af 3.7 W (max.) |
| Operating Temperature | –5 °C to +45 °C (23 °F to 113 °F) |
| Performance Guarantee Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 20% to 80% (no condensation) |
| Storage Humidity | 20% to 80% (no condensation) |
| Vibration Resistance | 10 G (20 Hz to 200 Hz 20 minutes for each direction -x, y, z) |
| Shock Resistance | 70 G |
| Dimensions (W x H x D) | 29 × 29 × 42 mm (1 3/16 × 1 3/16 × 1 11/16 inches) (excluding protrusions) |
| Mass | Approx. 65 g (2 oz) |
| MTBF | 62,042 hours (Approx. 7.1 years) |
| Regulations | UL60950-1, FCC Class A, CSA C22.2-No.60950-1, IC Class A Digital Device, CE : EN61326 (Class A), AS EMC: EN61326-1, VCCI Class A, KCC, CISPR22/24+IEC61000-3-2/-3 |
| Supplied Accessories | Lens mount cap (1), Safety Regulations (1) |
