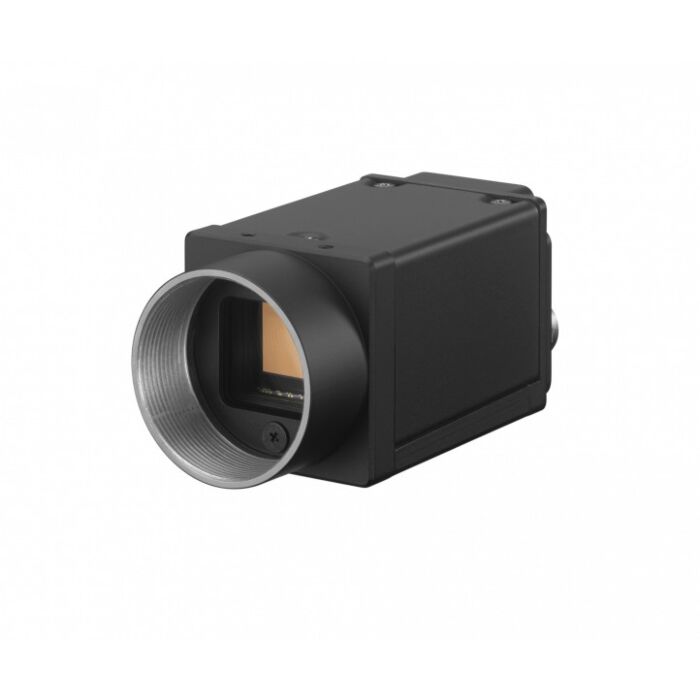

Sony XCG-CG160C 1/2.9-type Global Shutter CMOS SXGA (Color) 1.6MP GigE With POE Camera
The Sony XCG-CG160C 1.6MP GigE camera is purpose-built for industrial and machine vision environments, leveraging Sony’s IMX273 Global Shutter CMOS sensor to deliver SXGA resolution with fast, reliable image capture at 75 frames per second (fps). Its compact, durable design is perfect for high-precision tasks on production lines and in inspection applications where detailed, high-speed imaging is essential. The camera’s GigE Vision 2.0/1.2 compatibility with Power over Ethernet (PoE) simplifies installation by supporting single-cable connectivity, streamlining integration and minimizing cabling in complex setups.
This camera model also incorporates advanced features tailored for demanding imaging needs, including defect pixel correction, shading correction, and area gain controls to optimize image clarity. IEEE1588 PTP compliance allows for precise synchronization in multi-camera systems, making it an ideal choice for inspection systems, robotics, and quality assurance in sectors like electronics, automotive, and packaging. With an easy migration path from CCD to CMOS, the XCG-CG160C offers enhanced sensitivity, dynamic range, and noise reduction—upgrades that significantly improve performance in challenging industrial environments without requiring major system changes.
Features:
- Sony IMX273 1.6MP Global Shutter CMOS sensor
- 75 fps high-speed capture
- Compact form factor optimized for production lines
- GigE Vision 2.0/1.2 compatibility with PoE
- IEEE1588 PTP compliant for precise synchronization
- Advanced image processing with defect pixel and shading correction
Applications:
- Electronics inspection
- Automated assembly line monitoring
- Quality control in automotive manufacturing
- High-speed packaging inspection
- Pharmaceutical and lab automation
| Image Sensor | IMX273: 1/2.9-type CMOS Image sensors with a global shutter function (Pregius) |
| Number of Effective Pixels (H x V) | 1,456 × 1,088 |
| Cell Size (H x V) | 3.45 μm × 3.45 μm |
| Standard Output Pixels (H x V) | 1,440 × 1,080 |
| Color Filter | RGB color mosaic filter |
| Frame Rate | 75 fps (8 bit, Mono/Raw) |
| Minimum Illumination | 12 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/30 s) |
| Sensitivity | F5.6 (2000 lx, Gain: 0 dB, Shutter: 1/30 s) |
| SNR | More than 50 dB (Lens close, Gain: 0 dB, 8 bit) |
| Gain | Auto, Manual: 0 dB to 18 dB |
| Shutter Speed | Auto, Manual: 60 to 1/100,000 s |
| White Balance | Manual, One Push, Auto |
| Camera Features | Readout Modes LUT (Binarization, Gamma (Arbitrary value settable)), Test pattern |
| Synchronization | Hardware trigger, Software trigger, PTP (IEEE1588) |
| Trigger Modes | Edge detection, Pulse width detection, Bulk trigger, Sequential trigger |
| User Set | 16 |
| User Memory | 64 kbytes + 64 bytes × 16 channels |
| Partial Scan | W (Pixel) 16 to 1,456 H (Line) 16 to 1,088 |
| GPO | EXPOSURE/Strobe/Sensor lead out/Trigger through/Pulse generation signal/User defined 1, 2, 3 (Output switching) |
| Other Features | Area gain, Defect correction, Shading correction, Temperature readout, LUT, 3 x 3 filter |
| Video Data Output | digital Raw 8, 10, 12 bit (at the time of shipment Raw 8 bit) RGB, YUV422, YUV444 |
| Digital Interface | Gigabit Ethernet (100BASE-TX / 1000BASE-T) |
| Camera Specification | GigE Vision® Version 2.0/1.2 |
| Digital I/O | ISO IN (x1), TTL IN/OUT (x2, selectable) |
| Lens Mount | C mount |
| Flange Back | 17.526 mm |
| Power Requirements | DC +12 V (10.5 V to 15.0 V), IEEE802.3af (37 V to 57 V) |
| Power Consumption | DC +12 V 3.3 W (max.), IEEE802.3af 4.0 W (max.) |
| Operating Temperature | –5 °C to +45 °C (23 °F to 113 °F) |
| Performance Guarantee Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 20% to 80% (no condensation) |
| Storage Humidity | 20% to 80% (no condensation) |
| Vibration Resistance | 10 G (20 Hz to 200 Hz 20 minutes for each direction -x, y, z ) |
| Shock Resistance | 70 G |
| Dimensions (W x H x D) | 29 × 29 × 42 mm (1 3/16 × 1 3/16 × 1 11/16 inches) (excluding protrusions) |
| Mass | Approx. 65 g (2.3 oz) |
| MTBF | 58,525 hours (Approx. 6.7 years) |
| Regulations | UL60950-1, FCC Class A, CSA C22.2-No.60950-1, IC Class A Digital Device, CE : EN61326 (Class A), AS EMC: EN61326-1, VCCI Class A, KCC, CISPR22/24+IEC61000-3-2/-3 |
| Supplied Accessories | Lens mount cap (1), Safety Regulations (1) |
