Sony SRG-XP1 Compact 4K 60p POV Remote Camera With Wide Angle Lens - Black
1/1.8" 8.42 MP CMOS, 3840p/1080p/720p/480p (480p is only for HDMI), 1 lux (F1.5, 50IRE, 30 fps)
SKU

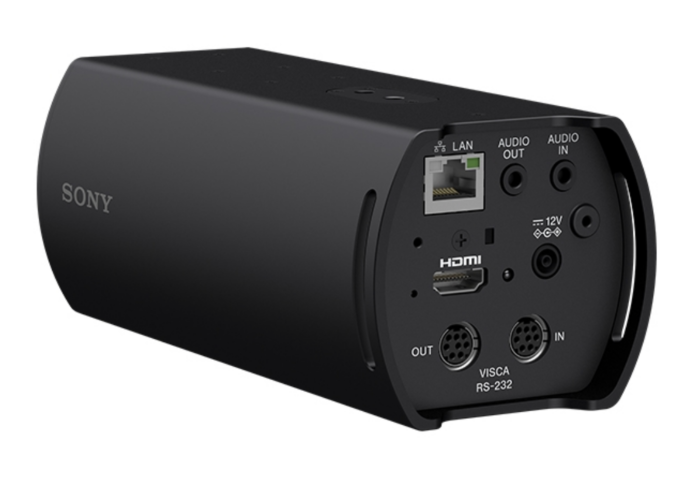

Sony SRG-XP1 Compact 4K 60p POV Remote Camera-Black
The SRG-XP1 POV (point of view) camera offers an accessible entry point into the world of 4K video production. It's ideal for 'unattended' video streaming in environments including e-sports venues and reality TV shows, classrooms, meeting space and hospital operating rooms where it can also serve as a high-quality secondary camera.
Compact dimensions and simple installation make the SRG-XP1 ideal for multi-camera setups with no need for dedicated camera operators. It can be used on walls, ceilings, tripods and shelves, as well as space-limited locations where it's costly or impractical to install large numbers of full-size cameras.
The wide angle lens covers a generous over-102° (with distortion correction: 85°) field of view (horizontal), allowing the camera to see an entire subject, even from very close range. It can also capture the entire audience in a classroom or auditorium—even from tricky positions where it's hard to install an ordinary room camera.
Streaming video, power and camera control signals are all carried over a standard Ethernet cable, reducing installation costs and simplifying integration in today's IP networked production environments.
Features:
- Robust, stylish and compact
- Wide field of view
- Multiple streaming outputs
- Easy IP connectivity, single-cable installation
- High quality 4K 60p images
- Broadcast-style tally light
- Audio input
Applications:
- Live Sports/Broadcasts
- House Of Worship
- Professional Broadcast
- Auditoriums
- Courtrooms
| Video Format |
3840p/1080p/720p/480p (480p is only for HDMI)
|
||||||
| Image Sensor |
1/1.8" 8.42 MP CMOS
|
||||||
| Frame Rate | 59.94/50/29.97/25 | ||||||
| Video Output Interface | HDMI 2.0 / Ethernet / USB 3.0 | ||||||
| Optical Zoom | n/a | ||||||
| Digital Zoom | 4x | ||||||
| Focal Length | 0.01 inches | ||||||
| Pan Tilt | n/a | ||||||
| Horizontal Viewing Angle | 68° | ||||||
| Shutter Speed | 1 to 1/10,000 sec (AF only work while exposure time < = 1/8)> | ||||||
| Min Object Distance | 4.92 ft | ||||||
| Minimum illumination | 1 lux (F1.6, 50IRE, 30 fps, auto focus), 0.1 lux for manual focus | ||||||
| Video Codec | H.265, H.264 | ||||||
| Audio Codec | AAC | ||||||
| Multiple Video Stream | Yes | ||||||
| Video Stream | RTSP / RTMP / NDI®|HX / MPEG-TS | ||||||
| Camera Control | VISCA over IP / ONVIF Profile S *TBD / VISCA / CGI command | ||||||
| Tally Light | High / Low / Off | ||||||
| Audio Input | 0.14 inches x 1 | ||||||
| POE |
Yes (IEEE802.3af)
|
||||||
| DC In | 12 V DC +/-20% | ||||||
| IR remote controller | n/a | ||||||
| Dimensions (W x H x D) *1 | 2.79 x 80.1 x 3.15 inches | ||||||
| Mass | 30.76 oz 1.91 lb |
||||||
