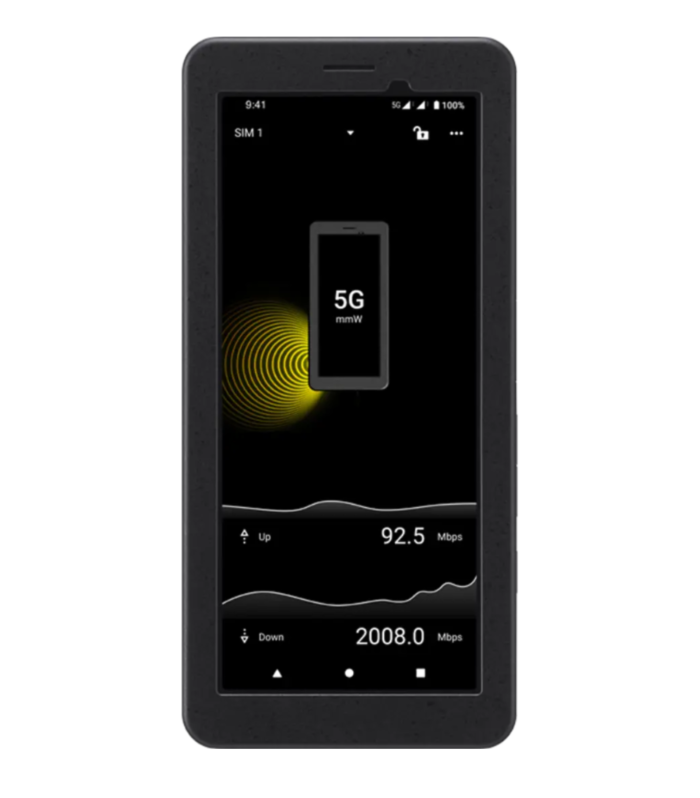

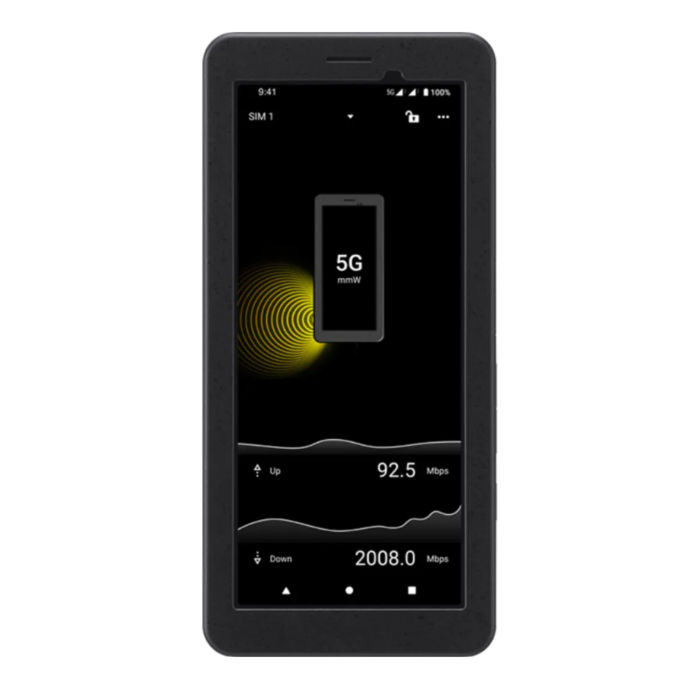

Sony PDT-FP1 Portable Data Transmitter
SKU
PDT-FP1
Quick Overview
Elevate industrial efficiency with Sony PDT-FP1. Experience high-speed data transmission, reliable connectivity, and seamless integration for enhanced machine vision. Upgrade your operations today!
Enhance NDAA Compliant Industrial Operations with Sony PDT-FP1
In the realm of industrial and machine vision applications, Aegis Electronic Group Inc. introduces the Sony PDT-FP1 Portable Data Transmitter, a pioneering solution designed to elevate operational efficiency. Boasting high-speed stable communication and a simplified user interface, the PDT-FP1 ensures seamless data transmission, crucial for real-time analysis in industrial environments.
Equipped with an optimized antenna design, this transmitter facilitates high-speed data transmission across various bands, including LTE and 5G Sub6 and mmWave, extending communication coverage by up to 10%. With dual SIM functionality, it automatically switches to the fastest available network, guaranteeing uninterrupted connectivity.
Furthermore, the PDT-FP1 features a robust heat dissipation system, allowing it to operate reliably even in harsh conditions with temperatures reaching up to 40℃ (104℉). Its uninterrupted power supply, supported by two USB Type-C terminals with Power Delivery, ensures continuous operation during critical tasks.
The device offers versatile input interfaces, including HDMI, USB-C, and LAN, facilitating seamless integration into existing systems. Additionally, the "Network Visualizer" app enables real-time monitoring of network conditions, enhancing data transfer efficiency.
Features:
- High-speed stable communication
- Optimized antenna design
- Heat dissipation system
- Dual SIM functionality
- Wide compatibility with input interfaces
- Uninterrupted power supply
Applications:
- Automated quality inspection
- Robotics guidance systems
- Object recognition and tracking
- Remote monitoring and surveillance
- Production line optimization
| General | |
| Camera type | Interchangeable lens digital camera |
| Lens Mount | E-mount |
| Camera Section | |
| Type | 1.38 in full frame (1.41 x 0.94 in), Exmor R CMOS sensor |
| Number of pixels (total) | Still images: Approx. 61.0 megapixels max. Movies: Approx. 50.8 megapixels max. |
| Color temperature range | 2500 K - 9900 K |
| Anti-Dust function | - |
| Recording System (still image) | |
| Recording format | JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), HEIF (MPEG-A MIAF compliant), RAW (Sony ARW 4.0 format compliant) |
| Image size (pixels) [3:2] | 35mm full frame L: 9504 x 6336 (60 M), M: 6240 x 4160 (26 M), S: 4752 x 3168 (15 M) |
| Image quality modes | RAW JPEG HEIF (4:2:0 / 4:2:2) RAW & JPEG RAW & HEIF |
| 14bit RAW | Yes |
| Recording System (Movie) | |
| Video Compression | XAVC S: MPEG-4 AVC/H.264 XAVC HS: MPEG-H HEVC/H.265 |
| Audio Recording Format | LPCM 2ch (48 kHz 16 bit) ※2 |
| Movie Recording Format (XAVC HS 4K) | |
| 3840 x 2160 (4:2:0, 10bit) (Approx.) | 59.94p (150 Mbps / 75 Mbps / 45 Mbps) 50p (150 Mbps / 75 Mbps / 45 Mbps) 23.98p (100 Mbps / 50 Mbps / 30 Mbps) |
| 3840 x 2160 (4:2:2, 10 bit) (Approx.) | 59.94p (200 Mbps / 100 Mbps) 50p (200 Mbps / 100 Mbps) 23.98p (100 Mbps / 50 Mbps) |
| Movie Recording Format (XAVC S 4K) | |
| 3840 x 2160 (4:2:0, 8bit) (Approx.) | 59.94p (150 Mbps) 50p (150 Mbps) 29.97p (100 Mbps / 60 Mbps) 25p (100 Mbps / 60 Mbps) 23.98p (100 Mbps / 60 Mbps) |
| 3840 x 2160 (4:2:2, 10 bit) (Approx.) | 59.94p (200 Mbps) 50p (200 Mbps) 29.97p (140 Mbps) 25p (140 Mbps) 23.98p (100 Mbps) |
| Movie Recording Format (XAVC S HD) | |
| 1920 x 1080 (4:2:0, 8 bit) (Approx.) | 119.88p (100 Mbps / 60 Mbps) 100p (100 Mbps / 60 Mbps) 59.94p (50 Mbps / 25 Mbps) 50p (50 Mbps / 25 Mbps) 29.97p (50 Mbps / 16 Mbps) 25p (50 Mbps / 16 Mbps) 23.98p (50 Mbps) |
| 1920 x 1080 (4:2:2, 10 bit) (Approx.) | 59.94p (50 Mbps) 50p (50 Mbps) 29.97p (50 Mbps) 25p (50 Mbps) 23.98p (50 Mbps) |
| Other Features | Picture Profile (S-Log3/S-Cinetone/etc) Creative Look |
| Movie Recording Format (XAVC S-I 4K) | |
| 3840 x 2160 (4:2:2, 10 bit) (Approx.) | 59.94p (600 Mbps) 50p (500 Mbps) 29.97p (300 Mbps) 25p (250 Mbps) 23.98p (240 Mbps) |
| Movie Recording Format (XAVC S-I HD) | |
| 1920 x 1080 (4:2:2, 10 bit) (Approx.) | 59.94p (222 Mbps) 50p (185 Mbps) 29.97p (111 Mbps) 25p (93 Mbps) 23.98p (89 Mbps) |
| Movie Function | |
| Proxy Recording | Yes |
| TC/UB | Yes |
| RAW Output | Yes (HDMI)*3 |
| Recording System | |
| Memory Card Slot | Slot for SD (UHS-I/II compliant) memory card |
| Focus System | |
| Type | Fast Hybrid AF (phrase-detection AF / contrast-detection AF) |
| Focus Point | Still images: Max. 693 points (phase-detection AF) Movies: Max 693 points (phase-detection AF) |
| Sensitivity Range | EV-4 to EV20 (ISO100 equivalent with F2.0 lens attached) |
| Exposure Control | |
| Metering Type | 1200-zone evaluative metering |
| Metering Sensitivity | EV-3 to EV20 (ISO100 equivalent with F2.0 lens attached) |
| Exposure Compensation | +/- 5.0 EV (1/3 EV, 1/2 EV steps selectable) |
| ISO Sensitivity | Still images: ISO 100 - 32000 (expandable to ISO 50 - 102400), AUTO (ISO 100 - 12800, selectable lower limit and upper limit) Movies: ISO 100 - 32000 equivalent, AUTO (ISO 100 - 12800, selectable lower limit and upper limit) |
| Anti-flicker Shoot. | Yes*4 |
| Viewfinder | |
| Type | - |
| LCD Screen | |
| Type | - |
| Other Features | |
| Other features | Soft Skin Effect Creative Look Custom function Picture Profile Time-lapse |
| Clear Image Zoom | |
| Still images | Approx. 2x |
| Movies | Approx. 1.5x (4K), Approx. 2x (HD) |
| Shutter | |
| Shutter Type | Mechanical shutter/Electronic shutter |
| Shutter Speed | Still images (Mechanical shutter): 1/4000 to 30 s, Bulb Still images (Electronic shutter): 1/8000 to 30 s Movies: 1/8000 to 1 s |
| Electronic Front Shutter Curtain | Yes |
| Image Stabilization | |
| Type | Not supported (image stabilization supported lens) |
| Compensation effect (still images) | - |
| Mode | Still images: On / Off Movie: On / Off |
| Flash | |
| Type | - |
| Drive | |
| Continuous drive speed (approx. max.)*5 | Mid: 3.0 fps |
| No. of frame recordable* (approx.)*5 | JPEG Extra fine L: 48 frames JPEG Fine L: 320 frames JPEG Standard L: over 1000 frames RAW: 36 frames RAW & JPEG: 32 frames RAW (Lossless Compressed): 16 frames RAW (Lossless Compressed) & JPEG: 15 frames RAW (Uncompressed): 14 frames RAW (Uncompressed) & JPEG: 13 frames |
| Pixel Shift Multi Shooting | - |
| Accessibility | |
| Functions | Screen Reader Focus Magnifier Focus Map (Movie) Subject Recognition in AF Custom function Enlarge Menu Screen |
| Interface | |
Multi / Micro USB terminal*6 | - |
| USB Type-C® Terminal | Yes (SuperSpeed USB 5 Gbps (USB 3.2) compatible) |
| Wireless LAN (built-in) | Yes (Wi-Fi Compatible, IEEE 802.11b/g/n (2.4 GHz band))*7 |
| Bluetooth | Yes (Bluetooth Standard Ver. 4.2 (2.4 GHz band)) |
| HDMI output | HDMI micro connector (Type-D) 3840 x 2160 (59.94p / 50p / 29.97p / 25p / 23.98p) / 1920 x 1080 (59.94p / 50p / 23.98p) / 1920 x 1080 (59.94i / 50i), YCbCr 4:2:2 10 bit / RGB 8bit*9 *3 3848 x 2168 (60p / 50p / 30p / 25p / 24p), Raw 16 bit*3 |
| Multi Interface Shoe*10 | - |
| Mic Terminal | - |
| Headphone Terminal | - |
| Remote Control (Wireless) | Yes (Power & Control terminal) |
| DC input | Yes (Power & Control terminal) |
| LAN terminal | - (USB-LAN connection is available)*11 |
| USB Streaming | |
| Video Data Format | MJPEG YUV420*12 |
| Video Resolution | 3840 x 2160 (15p / 30p) 3840 x 2160 (12.5p / 25p) 1920 x 1080 (30p / 60p) 1920 x 1080 (25p / 50p) 1280 x 720 (30p) 1280 x 720 (25p) |
| Audio Data Format | - |
| Audio | |
| Microphone | - |
| Speaker | - |
| Lens Compensation | |
| Lens Compensation | Shading, Chromatic Aberration, Distortion, Breathing (Movie) |
| Power | |
| Battery | - |
| Power Requirements | DC 10 to 18 V |
| USB Power Supply | - |
| Power Consumption | |
| Without display output | Still images: Approx. 3.8 W (with FE 28-70 mm F3.5-5.6 OSS lens attached) Movies: Approx. 6.5 W (with FE 28-70 mm F3.5-5.6 OSS lens attached) |
| Weight | |
| Body only | Approx. 243 g |
| Body only (oz.) | Approx. 8.6 oz |
| Dimensions | |
| Dimensions (W x H x D) | Approx. 100.0 x 74.0 x 42.5 mm |
| Dimensions (W x H x D) (in) | Approx. 4 x 3 x 1 11/16 inches |
| Operating Temperature | |
| Operating Temperature | 0 - 40 ℃ / 32 - 104 °F |
| Supplied Accessory | |
| Kit Lens | - |
| Supplied Accessory | Body cap Power & Control Cable |
