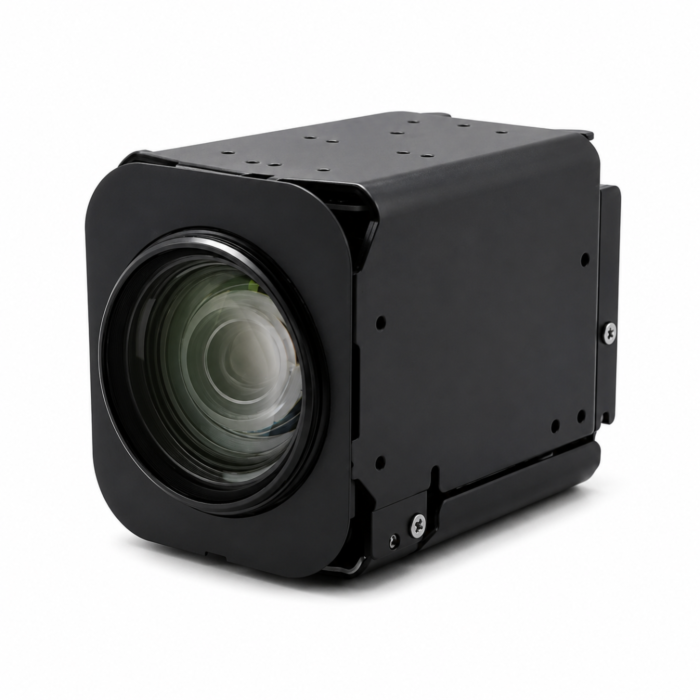

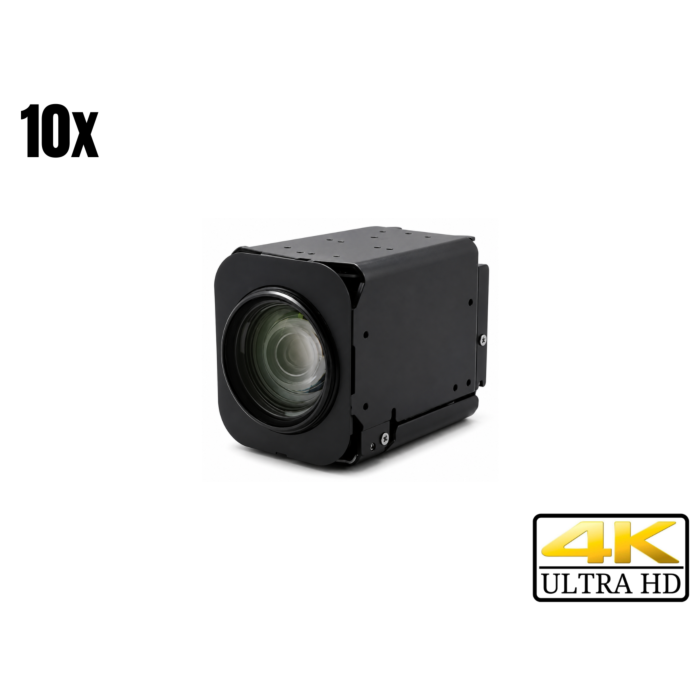

Sony FCB-ER9100 10x 4K60P CMOS Block Camera
Sony FCB-ER9100 10x 4K60P CMOS Block Camera with 4K/60p ultra-high-definition output, 10x optical zoom, bright F1.8 wide-angle 4K lens, 1/2.8" STARVIS™ CMOS sensor, advanced image processing and Super+ Image Stabilizer.
The Sony FCB-ER9100 is a compact 4K block camera module built for OEM vision systems that demand high resolution, smooth motion capture, and accurate color reproduction in a small, integration-ready footprint. Combining 4K/60p output, 10x optical zoom, and a bright F1.8 lens, the FCB-ER9100 delivers detailed, stable imagery across a wide range of distances and lighting conditions.
In fields such as UAVs, robotics, industrial inspection, and medical imaging, high-precision and high-stability image acquisition technology has become the core driving force for industry upgrading. As a 4K P60 ultra-high-definition camera equipped with 10x optical zoom, the Sony FCB-ER9100 delivers exceptional imaging capabilities, flexible zoom performance, and intelligent function design.
Key Features:
- 4K/60p ultra-high-definition output for sharp, fluid imaging in high-speed and detail-critical applications
- 10x optical zoom with up to 120x total zoom with digital zoom
- Bright F1.8 wide-angle 4K lens
- 1/2.8" STARVIS™ CMOS sensor with approximately 8.39 million effective pixels
- Advanced image processing
- Noise Reduction, Wide Dynamic Range, Visibility Enhancer, and Defog
- Super+ Image Stabilizer for stable imaging in moving or vibration-prone environments
- Compact form factor for easy embedding in space- and weight-constrained equipment
- Lead-free and halogen-free circuit boards
Applications:
- Remote visual inspection
- UAV and drone payloads
- Inspection and security robotics
- Perimeter surveillance
- Video conferencing
- Medical and surgical imaging
- Industrial inspection
- Security monitoring
*Pre-release product information. Specifications are based on the latest available Sony FCB-ER9100 technical manual and may be updated.
| Imager | 1/2.8 Type STARVIS CMOS Sensor |
| Picture elements | Approx. 8390K pixels |
| Lens | f = 4.0 mm (WIDE) to 40.0 mm (TELE), F1.8 to F3.2 |
| Zoom movement speed (Reference value) | WIDE – TELE T.B.D. sec (Focus Tracking On) T.B.D. sec (Focus Tracking Off) WIDE – Digital TELE (Digital 12×) T.B.D. sec (29.97p/59.94p mode) T.B.D. sec (25p/50p mode) Digital WIDE – Digital TELE (Digital 12×) T.B.D. sec (29.97p/59.94p mode) T.B.D. sec (25p/50p mode) |
| Focus Movement time (Reference value) | ∞ to Near T.B.D. sec |
| Zoom | Optical zoom 10× |
| Digital Zoom | 12× |
| Angle of view (H) (Reference value) | Approx. T.B.D. degrees (Wide end), approx. T.B.D. degrees (Tele end) |
| Min. working distance | 10 mm (Wide end), 800 mm (Tele end) |
| Sync system | Internal |
| Min. illumination (Reference value) | In the case of ICR-Off T.B.D. lx (1/30 sec, 50%, High Sensitivity mode On) T.B.D. lx (1/30 sec, 50%, High Sensitivity mode Off) T.B.D. lx (1/4 sec, 50%, High Sensitivity mode On) T.B.D. lx (1/4 sec, 50%, High Sensitivity mode Off) In the case of ICR-On T.B.D. lx (1/30 sec, 50%, High Sensitivity mode On) T.B.D. lx (1/30 sec, 50%, High Sensitivity mode Off) T.B.D. lx (1/4 sec, 30%, High Sensitivity mode On) |
| Image S/N | 50 dB (Weight On) |
| Back light compensation | On/Off |
| Electronic shutter speed | 1/1 sec to 1/10000 sec (22 steps) |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Gain | Auto/Manual 0 to 50.0 dB (0 to 28 step) Max. Gain Limit 10.7 to 50.0 dB (6 to 28 step) |
| Wide Dynamic Range Mode | On/Off |
| Noise Reduction | In the case of the 2D/3D combination On/Off (level 5 to 1 / Off, 6 steps) In the case of the 2D/3D independent setting 2D: Level 7 to 1/Off, 8 steps 3D: Level 5 to 1/Off, 6 steps |
| Defog | On/Off (Low, Mid, High) |
| Aperture control | 16 steps |
| Preset | 256-POSITIONS |
| Camera control IF | VISCA protocol (CMOS 3.3 V level, 5.5 V tolerant) 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit, 1 bit |
| Video Output | Digital (TMDS) |
| Storage temperature/Humidity | –20 °C to +60 °C (–4 °F to +140 °F) / 20% to 95% Absolute humidity: 36 g/m3 |
| Operating temperature/Humidity | –5 °C to +45 °C (23 °F to 113 °F) / 20% to 80% Absolute humidity: 36 g/m3 |
| Power requirements | 7 V to 12 V DC |
| Power consumption | T.B.D. W (7.0 W under excessive load*) |
| Mass | Approx. T.B.D. g (xxx lb xxx oz) |
| Dimensions | 50 × 58 × 80 mm (2 × 2 3/8 × 3 1/4 in.) (w/h/d) |
*Monitoring Mode: 2160p/60, Wide-D Off, VE Off, Image Stabilizer On, AE Full Auto, Auto Focus, zoom lens is in motion
