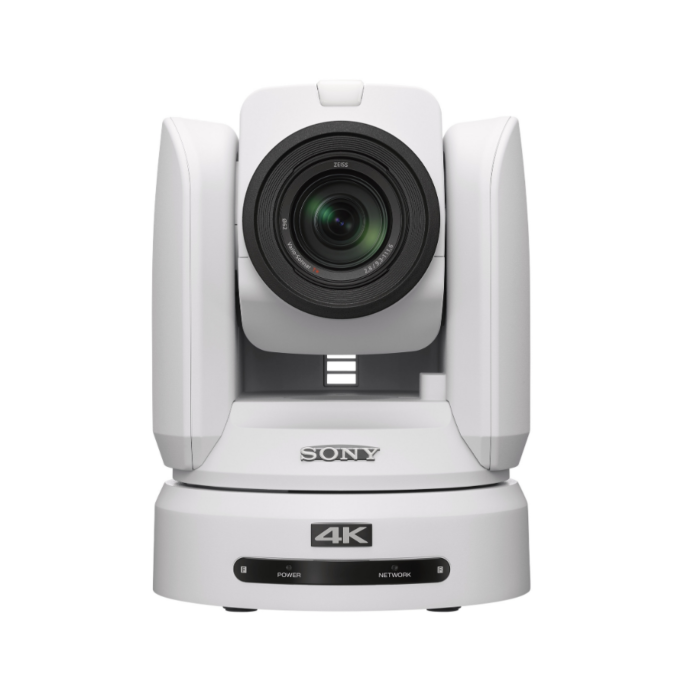

Sony BRC-X1000 (BRCX1000) 12x Optical Zoom 4K/HD PTZ camera - White
The BRC-X1000 is Sony's first 4K remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.1-type Exmor R CMOS, Clear Image Zoom 18x (4K), 24x(HD), 1.7 lx minimum illumination.
The BRC-X1000 (BRCX1000) is the first Sony 4K remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections. Designed for remote operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios, and on-air suites, auditoriums, houses of worship, courtrooms, or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.
The 1-inch type Exmor® R CMOS image sensor captures detail-packed 4K footage at 30p with four times the pixel count of Full HD, and excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention. Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 18x (4K), 24x (HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table-top, or tripod mounting. There's also a broad range of video interfacing and remote control possibilities—plus support for PoE+ and genlock—for smooth integration into any broadcast, professional, or corporate AV environment.
Other BRC-X1000 features include but are not limited to:
Applications:
| Image Sensor | 1-type Exmor R CMOS | ||||||
| Image Sensor (Number of Effective Pixels) | Approx. 1420 Megapixels | ||||||
| Signal System | 2160/29.97P,1080/59.94P,1080/59.94I,720/59,94P, 2160/25P,1080/50P,1080/50I, 720/50P | ||||||
| Minimum Illumination | 1.7Lx (50IRE, 1/30s, Iris/Gain Auto) | ||||||
| Gain | Auto/Manual (-3dB to +33dB) | ||||||
| Shutter Speed | 1/10000s to 1/8 (59.94/29.97) 1/10000s to 1/6 (50/25) | ||||||
| Exposure Control | Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), EV compensation, Back light, Spot light | ||||||
| White Balance | Auto1/Auto2/One Push/Indoor/Outdoor/Manual | ||||||
| Optical Zoom | 12x | ||||||
| Clear Image Zoom | 2x *1.5x at 4K resolution | ||||||
| Focusing System | Auto/Manual | ||||||
| Horizontal Viewing Angle | 64.6° (Wide-end) | ||||||
| Focal Length | f=9.3 to 111.6mm F2.8(Wide) ,F4.5(Tele) | ||||||
| Pan/Tilt Angle | Pan: ±170° Tilt: +90°/-30° | ||||||
| Pan/Tilt Speed | Pan: 0.3° to 60°/s Tilt: 0.3° to 60°/s | ||||||
| Preset Position | 16* | ||||||
| Day/Night | Yes | ||||||
| Flicker Cancel | On/Off | ||||||
| 4K Video Output | Dual link 3G-SDI x2 and HDMI | ||||||
| HD Video Output | 3G-SDI x2 and HDMI | ||||||
| Camera Control Interface | RS-422(VISCA) VISCA Over IP | ||||||
| External Sync. Input | Yes | ||||||
| Power Requirements | DC 10.8V to 13.2V, PoE+(IEEE802.3at compliant) | ||||||
| Operating Temperature | 0 °C to 40 °C - 32 °F to 104 °F | ||||||
| Dimensions (W x H x D)*1 | Approx. 198 x 260 x 238mm (without projecting object) Approx. 7 7/8 x 10 1/4 x 9 3/8 inch (without projecting object) | ||||||
| Mass | Approx. 9lb 7.7oz | ||||||
| Body Color | Black | ||||||
| Ceiling Mount | Yes | ||||||
