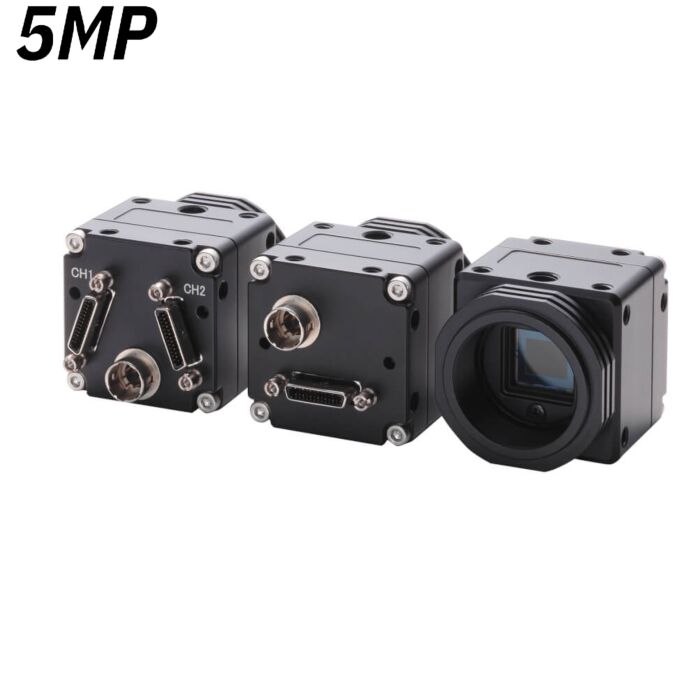

Omron STC-510PCL 5MP CL Color Camera (PoCL) CMOS Sensor Sony IMX250 (Discontinued)
SKU
STC-510PCL
Quick Overview
*Product is Discontinued, Call For Replacement Options
The STC-SPC510PCL is a High-Speed CMOS 5M model has added toSentech's Camera Link series. Sony Pregius Sensor provides high-quality images (CMOS Sensor: Sony IMX250)
Omron's STC-SPC510PCL is capable of capturing moving objects without any issue due to the camera has Global shutter sensor. Supported PoCL type, external power supply is unnecessary.
Features:
- 2448(H) x 2048(V)
- 3.45μm x 3.45μm
- 163.4 fps
- 2/3“ Sensor
- Lens Mount : C-Mount
- Global Shutter
- Supported PoCL
- 35 x 35 x 40.7 mm (excluding connectors)
Applications:
- Machine Vision
- ITS
- Security
- Industrial Imaging
- Industrial Inspection
| Model Number | STC-SPB510PCL |
| Image Sensor | 2/3” 5.07M Progressive CMOS (Sony IMX250) |
| Shutter Type | Global |
| Effective Pixels | 2448 (H) x 2048 (V) |
| Cell Size | 3.45 (H) x 3.45 (V) µm |
| Sync System | Free run, External trigger Maximum |
| Frame Rate | 163.4 fps (8bit, 10Tap, 85MHz) 66 fps (10bit, 4Tap, 85MHz) 66 fps (12bit, 4Tap, 85MHz) |
| Video Format | 8 bit / 10bit / 12bit output |
| Noise Level | Less than TBD LSBs (Gain 0 db, 8bit) Less than TBD LSBs (Gain 0 db, 10bit) Less than TBD LSBs (Gain 0 db, 12bit) |
| Sensitivity | TBD Lux (Color), TBD Lux (Monochrome) |
| Exposure time | 20.1μseconds to 16.777seconds (8bit) 26.5μseconds to 16.777seconds (10bit) 26.5μseconds to 16.777seconds (12bit) |
| TBD g Compliance | RoHS Compliant |
