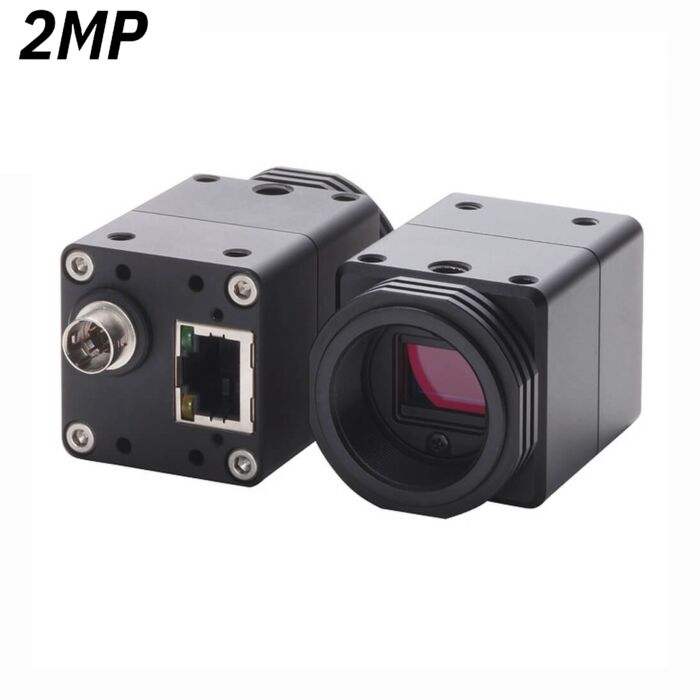

Omron STC-SC202POE 2MP Color GigE Camera (CCD Sensor: ICX274AQ) (Discontinued)
SKU
STC-SC202POE
Quick Overview
1624 pixels x 1236 pixels, 1/1.8" PS IT CCD, 15 fps, Power over Ethernet Gigabit Ethernet Camera. Available in Color (CCD Sensor: ICX274AQ)
*Product is discontinued, Replacement Option: STC-MCS202POE
The STC-SC202POE is part of Sentech's Brand New Power over Ethernet GigE camera series. It features a 1/1.8" color UXGA sensor, 15fps and communication over a 6 pin Hirose or Ethernet connector. The STCSC202POE boasts a compact 35(w) x 35(H) x 55.9 (D) mm size, a user-programmable Area of Interest (AOI) and a Gamma Table that can be imported. This camera meets all industry standards for GigE Vision® and GenICam™, and is compatible with all standard industry drivers. The GigE PoE series is available now at an extremely low cost.
Features:
| STC-SC202POE Specifications | |
| Imager | 1/1.8” interline UXGA color progressive CCD: ICX274AQ |
| Total Picture Element | 1688 (H) x 1246 (V) |
| Active Picture Element | UXGA: 1624 (H) x 1236 (V) |
| Chip Size | 8.5 (H) x 6.8 (V) mm |
| Cell Size | 4.4 (H) x 4.4 (V) um |
| Scanning System | Progressive |
| Vertical Frequency (Frame Rate) | 15.31668 Hz at full resolution; 0.29261 to 61.26674 Hz changeable via the communication; Maximum frame rate is dependent on the AOI setting; Maximum frame rate of the camera (61.26674 Hz) is 104 vertical resolution AOI setting. |
| Horizontal Frequency | 19.1761 Hz |
| Pixel Frequency | 38.818175 MHz |
| Noise Level | |
@ 8bit output | ≤ 3 Digit (Gain 0 dB) |
@ 10bit output | ≤ 12 Digit (Gain 0 dB) |
@ 12bit output | ≤ 48 Digit (Gain 0 dB) |
| Minimum Scene Illumination | 7.27 Lux at F1.2, 15.31668 Hz |
| Sync System | Internal |
| Video Output | Digital 8, 10 or 12 bit Raw data or RGB 8 bit |
| Interface | PoE : IEEE802.3af CLASS2 (1000BASE-T) |
| Protocol | GigE Vision® 1.2 and GenICam™ 2.0 compliant |
| Exposure Time | Preset continuous mode: 10 seconds to 16,777,215 seconds Preset trigger mode: 10 seconds to 16,777,215 seconds Pulse width mode: 10 seconds to Unlimited |
| ALC | Electronic iris and AGC (ON/OFF) |
| Gain | 0 to 20.4 dB |
| Gamma | Gamma 1.0 (Factory default) or uploadable gamma table |
| AOI Function | Programmable AOI setting via the communication |
| Smear Reduction | Selectable ON/OFF via the communication |
| Color Interpolation | Available on RGB Output |
| White Balance Function | Auto, Manual, Push to Set White Balance are available on both raw data and RGB outputs |
| Operation Mode | Edge preset trigger, Pulse width trigger (unlimited long exposure) |
| Communication | UART communication through Ethernet port |
| I/Os | One opt isolated input and two open collector outputs |
| Power | |
Input Voltage | +10.8 to +26.4Vdc through power/IO connector or Power Over Ethernet; (Auto detection with power/IO connector prioritized) |
Consumption | 12V: 3.0W / 2.9W, PoE: 3.3W / 3.3W |
| Dimensions | 35 (W) x 35 (H) x 57.3 (D) mm excluding connectors |
| Optical Filter | IR Cut Filter on |
| Optical Center Accuracy | Positional accuracy in H and V directions: +/- 0.3 mm; Rotational accuracy of H and V: +/- 1.5 deg. |
| Material | Aluminum (AC) |
| Lens Mount | C mount |
| Connectors | RJ45 connector; Power/IO connector: HR10A-10R-6PB (Hirose) or equivalent |
| Camera Mount Screws | Two 1/4” Tripod screw holes: (One on each top and bottom plate), Twelve M4 screws holes: (Four on each top and bottom plate, two on each side plate) |
| Weight | Approx. 130 |
| Operating Temperature | |
Minimum | Environmental Temperature -5°C |
Maximum | Environmental Temperature: 35 deg. C or camera housing temperature (Top Plate) : 65 deg. C |
| Storage Temperature | Environmental Temperature: -30°C to 65°C |
| Vibration | 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, 3 directions 30 min. each |
| Shock | Acceleration 38G, half amplitude 6ms, 3 directions 3 times each |
| Standard Compliancy | EMS: EN61000-6-2, EMI: EN55011 |
| RoHS | RoHS Compliant |
