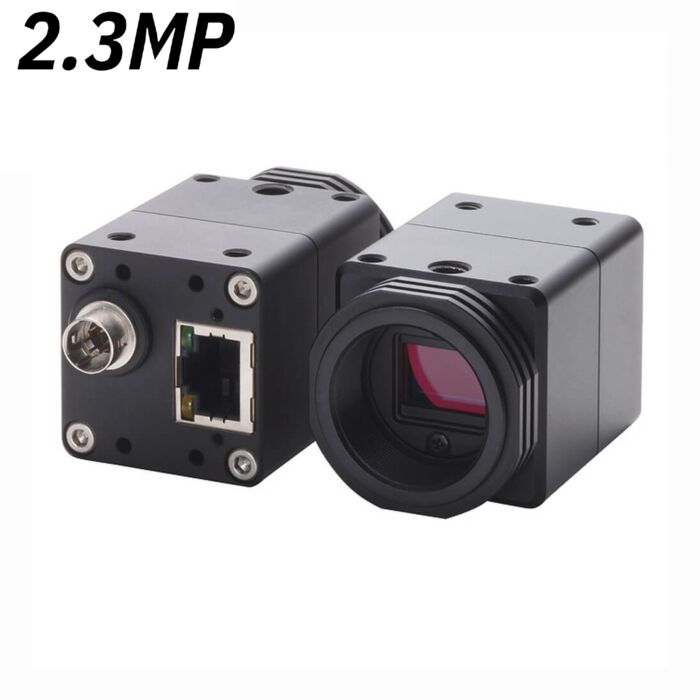

Omron STC-SBS231POE (STCSBS231POE) 2.3MP GigE, Monochrome Camera (Discontinued)
SKU
STC-SBS231POE
Quick Overview
*Product is Discontinued, Call For Replacement Options
1/1.2" 2.3 MP Monochrome Progressive CMOS, 41.6 fps, 5.86 (H) x 5.86 (V) μm (CMOS Sensor: Sony IMX174)Omron is releasing a brand new GigE Vision, 2.3 MP mono GigE Vision camera. The STC-SBS231POE features 41.6 FPS, and a dazzling 2.3 MP resolution. Utilizing CMOS Global Shutter, the STC-SBS231POE is capable of capturing moving objects without any motion blur. By utilizing the GigE Vision interface, speed and power have never been easier to use.
Features:
Applications:
| Image Sensor | 1/1.2" 2.35 MP Mono CMOS (SONY: IMX174) |
| Active Picture Element | 1920 (H) x 1200 (V) |
| Cell Size | 5.86 (H) x 5.86 (V) μm |
| Scanning System | Progressive |
| Scanning Mode | Full Scanning (Full resolution) / ROI |
| Frame Rate | Mono8/10/12 |
| ADC bit depth | 12bit, 10bit |
| Video Output Format | Mono8/10/12 |
| Noise Level | - |
| - @ 8 Bit Output | ≤ 1.5 Digit (Gain 0 dB) |
| - @ 10 Bit Output | ≤ 6 Digit (Gain 0 dB) |
| - @ 12 Bit Output | ≤ 24 Digit (Gain 0 dB) |
| Sensitivity | 580 Lux |
| ALC | Auto shutter / Auto gain (AGC) / Manual (Default: Auto shutter OFF, AGC OFF) |
| Electronic Shutter | 2bit: Edge preset trigger, Free run: 34 useconds to 16,777,215 useconds; Pulse width trigger: 25 useconds to 16,777,215 useconds; 8bit,10bit: Edge preset trigger, Free run: 39 useconds to 16,777,215 useconds; Pulse width trigger: 20 useconds to 16,777,215 useconds; |
| Gain | - |
| - Analog | 0 to 24 dB (Default: 0dB) |
| - Digital | 0 to 6 dB (Default: 0dB) |
| ROI | Horizontal: 16 to 1920 pixels / Vertical: 2 to 1200 pixels (Default: 1920 x 1200), Adjustable steps for the image size: 8 pixels in horizontal direction and 2 lines in vertical direction, Adjustable steps for the offset: 8 pixels in horizontal direction and 2 lines in vertical direction |
| Gamma | Gamma 1.0 (Factory default) or uploadable gamma table |
| Binning Function | Not supported |
| Decimation Function | Individual x2 Horizontal, Vertical Decimation |
| Mirror Image | Horizontal / Vertical / Horizontal and Vertical (Default: OFF) |
| ROI Function | Variable ROI setting via the communication |
| White Balance | Auto / Manual / One-shot (Default: Manual) |
| Operational Mode | Free-run / Edge-Preset Trigger / Pulse Width Trigger (Default: Free-run) |
| Interface | IEEE802.3af CLASS2 (1000BASE-T) |
| Protocol | GigE Vision® 1.2 and GenICam™ Standard Version 2.1 (SFNC 1.4) |
| I/O | One opt-isolated input and two open collector outputs |
| Communication | UART Communication through Ethernet port |
| Power | - |
| - Input Voltage | + 10.8 ~ 26.4 Vdc |
| - Consumption | - Consumption (Max/Default) |
| Dimensions | 35 (W) x 35 (H) x 53.7 (D) mm * |
| Optical Filter | - |
| Optical Center Accuracy | Positional Accuracy in H and V directions: +/- 0.3 mm, Rotational accuracy of H and V: +/- 1.5 deg. |
| Material | Aluminum Alloy (AC) |
| Lens Mount | C-Mount |
| Connectors | RJ45 connector, Power- I/O connector: HR10A-10R-6PB (Hirose) or equivalent |
| Camera Mount Screws | Two 1/2'' Tripod screw holes (one each on top and bottom plate) Twelve M4 screws holes (four each on top and bottom plate, two each on both side plate) |
| Weight | Approx. 100g |
| Operating Temperature | - |
| - Minimum | Environmental Temperature: -0°C |
| - Maximum | Camera housing temperature (top plate) shall not exceed 60⁰C (This corresponds to an environmental temperature of approximately 40⁰C) |
| Storage Temperature | Environmental Temperature: -20°C to 65°C |
| Storage Humidity | < 85% |
| Vibration | 20 Hz ~ 200 Hz ~ 20 Hz (5 min. /cycle), Acceleration 10G, XYZ 3 directions 30 minutes each |
| Shock | Acceleration 38G, half amplitude 6ms, XYZ 3 directions 3 times each |
| Standard Compliancy | EMS: EN61000-6-2, EMI: EN55011 |
| RoHS | RoHS Compliant |
