Omron STC-SBA503POE 5MP GigE, Monochrome Camera (Discontinued)
*Product is Discontinued, Call For Replacement Options
The STC-SBA503POE is part of Omron/Sentech's Brand New Power over Ethernet GigE cameras, featuring an Aptina CMOS Sensor (CMOS Sensor: Aptina MT9P031/12STM)

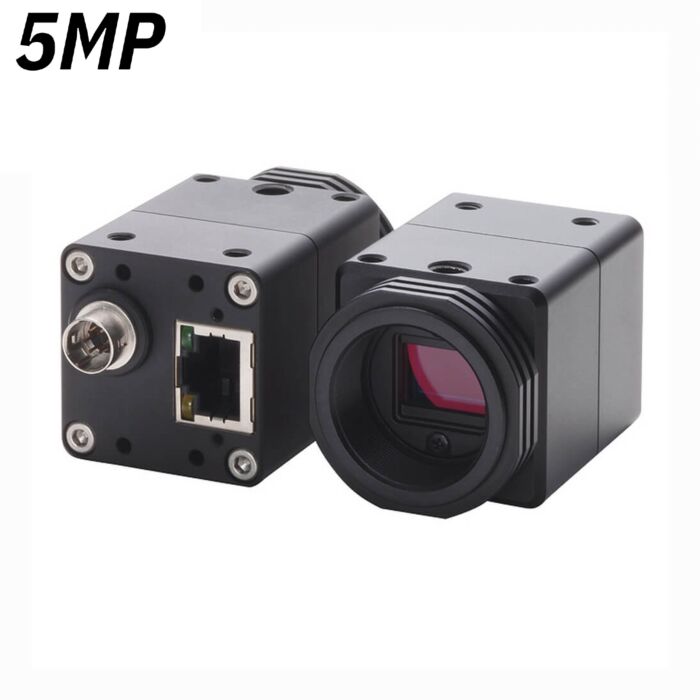

The Omron/Sentech STC-SBA503POE features a 1/2.5" monochrome QSXGA sensor, 15 fps, and communication over a 12 pin Hirose or Ethernet connector. The STC-SCA503POE boasts a compact 35(w) x 35(H) x 53.5 (D) mm.
Features:
- 1/2.5" CMOS Sensor
- 5MP-VGA Scalable Resolution
- GigE Vision 1.2 GenLCam 1.4 Compliant
Applications:
- Machine Vision
- Industrial Inspection
- ITS
- Security
- Medical Imaging
Imaging
Model No | STC-SBA503POE |
Image Sensor | 1/2.5" 5 MP CMOS; (Aptina: MT9P031/12STM) |
Active Picture Element | 2592 (H) x 1944 (V) |
Cell Size | 2.2 (H) x 2.2 (V) µm |
Scanning System | Full scanning, Variable ROI |
Function
Shutter Type | Rolling Shutter / Global Reset |
Scan Mode | Full Scan / AOI |
Vertical Frequency (Frame Rate) | QSXGA: 2592 (H) x 1944 (V): 14 FPS |
Video Output | Mono 8, Mono 10, Mono 10 Packed, Mono 12, Mono 12 Packed |
- Noise Level: @ 10 bit output | <= 13 Digit (Gain 0 dB) |
Minimum Scene Illumination | 0.1 Lux @ F1.2, 14 Hz |
ALC | AE and AGC (ON/OFF) (adjustable via the communication), (Default: AE OFF, AGC ON) |
Exposure Time | Preset continuous mode: 32 useconds to 16,777,215 mseconds, Preset trigger mode: 32 useconds to 16,777,215 mseconds, TriggerWidth (Pulse width) mode: 32 useconds to Non-limit mseconds |
Gain | - |
- Analog (Gain) | 0 ~ 7.51 dB |
- Digital (Gain) | Up to 18.69 |
Gamma | Gamma 1.0 (Factory default) or downloadable gamma table (Default:1) |
AOI Function | AOI (H: 32 to 2592 Pixel / V: 32 to 1944 Line) Unit： H 8 Pixel / V 2 Line |
Binning | H: 1/2, V: 1/2, 1/4 |
Decimation(Skipping) | Horizontal 1/2, 1/3, 1/4, 1/5, 1/6, 1/7, Vertical 1/2, 1/3, 1/4, 1/5, 1/6, 1/7 |
Flip Image | Horizontal / Vertical / Horizontal and Vertical |
Pixel Blemish Correction | Maximum 64 points (Default:ON) |
White Balance | Auto, Manual, Push to Set, White Balance are available, on both raw data and RGB outputs (Default:OFF) |
Operating Mode | Free Run, Edge preset trigger, Trigger Width (Pulse width) (Default:OFF) |
Protocol | IEEE802.3 (1000BASE-T) |
Communication | GigE Vision® 1.2 and GenICam™ 1.4 Compliant |
I/Os | One opt-isolated input and two open collector outputs(+3.3V) |
Power | - |
- Input Voltage | +10.8 to +26.4 Vdc (IO Connector) or Power Over Ethernet(IEEE802.3af compliance) |
- Consumption | Power over Ethernet: Less than 3.0 W, +12Vdc: Less than 3.2 W |
Mechanical
Dimensions | 35 (W) x 35 (H) x 53.5 (D) mm excluding connectors |
Optical Filter | No Filter |
Optical Center Accuracy | Positional accuracy in H and V directions:: ±0.3 mm, Rotational accuracy of H and V: ±1.0 deg |
Material | Aluminum (AC) |
Lens Mount | C Mount |
Connectors | RJ45 connector, Power- I/O connector: HR10A-10R-6PB (Hirose) or equivalent |
Camera Mount Screws | Two 1/4'' Tripod screw holes (one each on top and bottom plate) Twelve M4 screws holes (four each on top and bottom plate, two each on both side plate) |
Weight | Approx. 97g |
Environmental
Operating Temperature | - |
- Minimum | Environmental Temperature: -5°C |
- Maximum | Camera housing temperature (top plate) shall not exceed 65°C (This corresponds to an environmental temperature of approx. 40°C) |
Storage Temperature | Environmental Temperature -30 ~ 65°C |
Vibration | 20 Hz ~ 200 Hz ~ 20 Hz (5 min. /cycle), Acceleration 10G, XYZ 3 directions 30 minutes each |
Shock | Acceleration: 38G, half amplitude 6 ms, 3 times, XYZ each direction |
Standard Compliancy | EMS: EN61000-6-2, EMI: EN55011 |
RoHS | RoHS Compliant |
