Omron STC-SB33USB-B 0.3MP USB 2 Monochrome Camera
SKU
Sentech STC-SB33USB-B
Quick Overview

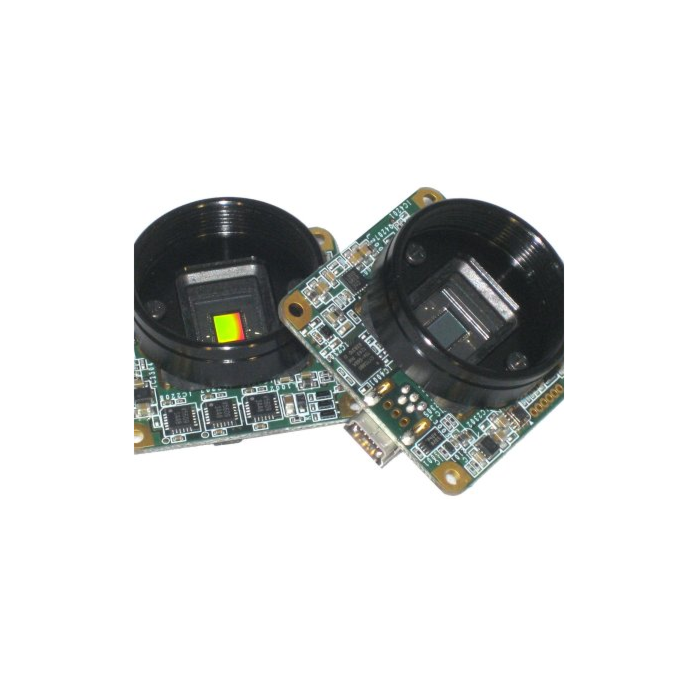

The STC-SB33USB-B is NDAA Compliant an ultra-compact, progressive scan, VGA, USB camera with a 1/3” monochrome CCD.
It features 60fps, hardware and software triggering image capture, digital zoom and a feature-rich user based menu setup and control. The STC-SB33USB-B is a board model available with rear or side mini-USB connectors.
Ultra-Compact Size |
1/3" CCD Image Sensor, VGA (0.3 Megapixel) |
Hardware & Software Trigger |
Name | Specifications |
|---|---|
Image Sensor | 1/3" interline VGA monochrome progressive CCD: ICX424AL(Sony) |
Total Picture Element | 692(H) x 504(V) |
Effective Picture Element | 659(H) x 494(V) |
Chip Size | 5.79(H) x 4.89(V) mm |
Cell Size | 7.40(H) x 7.40(V) μm |
Scanning System | Progressive |
Resolution | 640(H) x 480(V) (Full scanning) 640(H) x 224(V) (1/2 partial scanning) 640(H) x 80(V) (1/4 partial scanning) |
Scanning Method | Full scanning, 1/1 partial scanning, 1/2 partial scanning, 1/4 partial scanning, Variable partial scanning, Binning scanning, Binning 1/1 partial scanning, Binning 1/2 partial scanning, Binning 1/4 partial scanning, Binning variable partial scanning |
Maximum Frame Rate | - |
- Full Scanning | 59.94 fps (Normal） / 29.97 fps （1/2clock) / 14.98 fps (1/4clock) / 89.91 fps (3/2clock) |
- 1/2 Partial Scanning | 120.11 fps (Normal） / 60.05 fsp (1/2clock) / 30.02 fps (1/4clock) / 180.165 fps (3/2clock) |
- 1/4 Partial Scanning | 240.22 fps (Normal) / 120.11 fps (1/2clock) / 60.055 fps (1/4clock） / 360.33 fps |
Pixel Frequency | 24.5454 MHz (Normal） / 12.2727 MHz (1/2clock） / 6.13635 MHz (1/4clock） / 36.818 MHz (3/2clock) |
Video Output | 8bit / 10bit /12bit |
Minimum Scene Illumination | TBD |
Sync System | Internal |
Electronic Shutter | Auto / Manual (software selectable) |
- Normal | 1/36,818,182 to 1/22.40 seconds(default 1/29.18 seconds) |
- 1/2 Clock | 1/18,409,091 to 1/11.20 seconds |
- 1/4 Clock | 1/9,204,545 to 1/5.60 seconds |
Gain | Auto / Manual (software selectable,default: x3.55) |
Gamma | Manual (software selectable,default: 1) |
White Balance | - |
Trigger Mode | Free-run / Edge preset trigger / Pulse width trigger / Start & stop trigger (software selectable) (Hardware trigger and Software trigger are available) |
Camera Reset | Support on Pin 5 |
LED Indicator | Green(Flicker):Power-On, Green:Camera works |
Pixel Blemish Correction | 64 Points (default:off) |
Input / Output | USB2.0 High speed |
Power | - |
- Input Voltage | +5 V through USB connector (+4.4 to +5.25V) |
- Consumption | less than 2.0 W |
Dimensions | Board Type::36(W) x 36(H) x 15.3(D) CS-Mount(without USB connector) |
Lens Mount | CS mount / MicroLens Mount / None Mount |
Weight | approximately 15g |
Interface Connector | - |
- Angle | USB: mini-B USB connector IO Connector ：SM05B-SRSS-TB (JST) 5pin |
Operating Temperature | 0 to 40 deg. C |
Storage Temperature | -30 to 65 deg. C |
Vibration | 20Hz to 200Hz to 20Hz (5min./cycle), acccelaration 10G, 3 directions 30 min. each |
Shock | Acceleration 70G, half amplitude 6ms, 3 directions 3 times each |
Standard Compliancy | TBD |
RoHS | RoHS Compliant |
