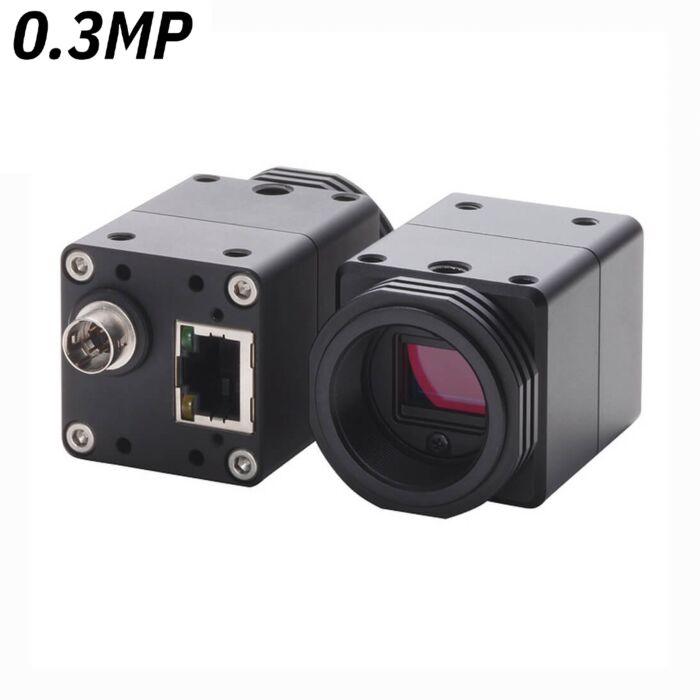

The STC-SB33POEHS boasts a compact 35(w) x 35(H) x 55.9 (D) mm size and features a 1/3" monochrome VGA sensor, 120fps and communication over a 6 pin Hirose or Ethernet connector (CCD Sensor: ICX424AL)
The Omron Sentech STC-SB33POEHS is a compact 0.3 megapixel high-speed GigE Vision industrial camera designed for demanding machine vision and automation applications. Built around the Sony ICX424AL monochrome CCD sensor, this camera delivers up to 120 frames per second at VGA resolution, providing reliable high-speed image acquisition for inspection, measurement, and motion analysis.
The camera supports Power over Ethernet (PoE), simplifying installation by delivering both power and data through a single Ethernet cable. With GigE Vision® and GenICam™ compliance, the STC-SB33POEHS integrates easily with standard machine vision software platforms and industrial imaging systems.
Its programmable Area of Interest (AOI) allows users to increase frame rates by capturing only critical image regions, while a downloadable gamma table and advanced exposure controls enable precise image tuning for specialized imaging environments.
Features:
- User Programmable AOI
- High Speed Power Over Ethernet
- 0.3 Megapixel Resolution with 120 fps
Applications:
- Industrial machine vision inspection
- Factory automation systems
- Motion analysis and tracking
- High-speed part inspection
- Semiconductor inspection
- Packaging and label verification
- OEM embedded vision systems
- Scientific imaging and laboratory research
| Imager | 1/3" interline VGA: monochrome progressive scan CCD: ICX424AL |
| Total Picture Element | 692 (H) x 504 (V) |
| Active Picture Element | VGA: 648 (H) x 494 (V) |
| Chip Size | 5.79 (H) x 4.89 (V) mm |
| Cell Size | 7.4 (H) x 7.4 (V) um |
| Scanning System | Progressive |
| Vertical Frequency | 120 Hz at full resolution; 0.96036 to 480.4355 Hz changeable via the communication; Maximum frame rate is dependent on the AOI setting; Maximum frame rate of the camera (480.4355 Hz) is 104 vertical resolution AOI setting |
| Horizontal Frequency | 62.93705 Hz |
| Pixel Frequency | 49.09090 MHz |
| Noise Level | |
@ 8bit output | <= 3 Digit (Gain 0 dB) |
@ 10bit output | <= 12 Digit (Gain 0 dB) |
@ 12bit output | <= 48 Digit (gain 0 dB) |
| Minimum Scene Illumination | 0.58 Lux at F1.2, 89.91172 Hz |
| Sync System | Internal |
| Video Output | Digital 8 ,10 ,12 bit Raw Data |
| Interface | PoE: IEEE802.3af CLASS3 (1000BASE-T) |
| Protocol | GigE Vision 1.2 and GeniCam 2.0 compliant |
| Exposure Time | Preset continuous mode: 10 seconds to 16,777,216 seconds; Preset trigger mode: 10 seconds to 16,777,216 seconds; Pulse width mode: 10 seconds to Unlimited. |
| ALC | Electronic iris and AGC (ON/OFF) |
| Gain | 0 to 20.4 dB |
| Gamma | Gamma 1.0 (Factory default) or downloadable gamma table |
| AOI Function | Programmable AOI setting via the communication |
| Smear Reduction | Selectable ON/OFF via the communication |
| Color Interpolation | N/A |
| White Balance Function | N/A |
| Trigger Mode | Edge preset trigger, pulse width trigger (unlimited exposure time) |
| Communication | UART communication through Ethernet Port |
| I/Os | One opt isolated input and two open collector outputs |
| Power | |
Input Voltage | +10.8 to +26.4Vdc through power/IO connector or Power Over Ethernet; (Auto detection with power/IO connector prioritized) |
Consumption | 12V: 3.2W / 2.9W, PoE: 3.4W / 3.1W |
| Dimensions | 35 (W) x 35 (H) x 57.3 (D) mm excluding connectors |
| Optical Filter | No filter |
| Optical Center Accuracy | Positional accuracy in H and V directions: +/- 0.3 mm; Rotational accuracy of H and V: +/- 1.5 deg. |
| Material | Aluminum (AC) |
| Lens Mount | C Mount |
| Connectors | RJ45 connector; Power/IO connector: HR10A-10R-6PB (Hirose) or equivalent |
| Camera Mount Screws | Two ¼” Tripod screw holes (one each on top and bottom plate); Twelve M4 screw holes (four each on top, bottom, and two each on both side plates) |
| Weight | Approx. 130 |
| Operating Temperature | |
Minimum | Environmental Temperature: -5 deg. C |
Maximum | Environmental Temperature: 35 deg. C or camera housing temperature (Top Plate) : 65 deg. C |
| Storage Temperature | Environmental Temperature: -30 to 65 deg. C |
| Vibration | 20Hz to 200Hz to 20Hz (5min/cycle), acceleration 10G, 3 directions 30 min. each |
| Shock | Acceleration 38G, half amplitude 6ms, 3 directions, 3 times each |
| Standard Compliancy | EMS: EN61000-6-2, EMI: EN55011 |
| RoHS | RoHS compliant |
