Omron STC-MCCM200U3V (STCMCCM200U3V) 2MP USB3, Color Camera

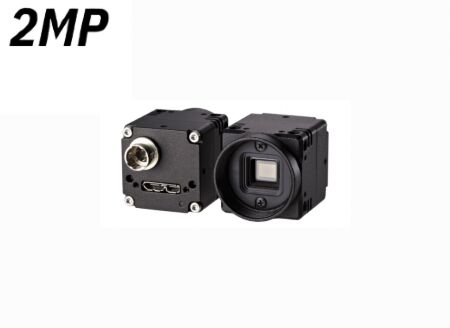

The Omron/Sentech STC-MCCM200U3V color camera features a 2/3" CMOSIS Sensor, 2 MP resolution, 167 fps, and an ultra compact 28 (W) x 28 (H) x 40 (D) mm size (CMOSIS: CMV2000)
SKU
STC-MCCM200U3V

The Omron/Sentech STC-MCCM200U3V combines high megapixel resolution with fast frame rate in order to provide the best machine vision camera on the market.


Features:

  • USB3 Vision Compliant
  • 167FPS
  • Global Shutter
  • Up to 64 Pixel Blemish Static Correction


Applications:

  • Machine Vision
  • Security
  • Factory Automation
  • Industrial Imaging
  • ITS

 Imaging

Model No

STC-MCCM200U3V

Image Sensor

2/3" 2MP Color CMOS (CMOSIS: CMV2000)

Active Picture Element

2048 (H) x 1088 (V)

Cell Size

5.5 (H) x 5.5 (V) μm

  Function

Scanning System

Full scanning, Variable ROI

Shutter Type

Global Shutter

Scanning Mode

Full Scanning, Variable ROI (Horizontal and Vertical)

Maximum Frame Rate (Full Scanning Mode)

2M: 2048 x 1080: 167fps (Raw 8bit); Frame rate will drop if connected with the USB 2.0 port

Maximum Frame Rate (AOI Mode)

1280 x 1024: 177fps, 640 x 480: 370fps, Minimum AOI (32 x 32): 3500 fps

Sync System

Internal

Video Output Format

RAW 8bit / 10bit / 12bit (Default Raw 8bit)

S/N Ratio

Less than TBD digit (Gain 0 dB)

Minimum Scene Illumination

120

Electronic Shutter

Preset Free-run Mode: Exposure Time 22 μsec to16 sec (in full scanning mode); Preset Trigger Mode: Exposure Time 22 μsec to 16 sec (in full scanning mode)

Gain

-

- Analog (Gain)

Not supported

- Digital (Gain)

0 ~ 13.9 dB (Default 0dB)

Offset (Analog)

0 to 255 digit (for 12bit/pix data) 8bit: 0 to 15digit

ROI

ROI (Horizontal:32 to 2048 pixels / Vertical:32 to 1088 lines); (Default: 2048 x 1088) Adjustable Steps for offset: 2 pixels in horizontal direction and 2 lines in vertical direction Adjustable Steps for image size: 16 pixels in horizontal direction and 4 lines in vertical direction Adjustable Steps for ROI 8 Region, 16 pixels in horizontal direction and 4 lines in vertical direction

Binning Function

N/A

Decimation Function

x2, x4 Vertical Decimation

ALC

AE, AGC (Default AE:OFF, AGC:OFF

White Balance

Auto, Manual, One Push (Default: Manual)

HDR

Not supported

Mirror Image

Horizontal / Vertical / Horizontal and Vertical (Default: OFF)

Pixel Defect Correction

Up to 64 pixels (Default: ON)

Operational Mode

Free-run / Edge-Preset Trigger / Pulse Width Trigger

User Setting Storage

Supported

Interface

USB 3.0 Super Speed (USB 3.0 Micro B)

Input / Output

Three GPIO, One Camera Hardware Reset

Power

-

- Input Voltage

+5V (typ.) (Conform to USB Standard)

- Communication

Less than TBD W

  Mechanical

Dimensions

C Mount: 28 (W) x 28 (H) x 40 (D) mm *excluding the connectors

Lens Mount

C Mount

Optical Center Accuracy

Positional Accuracy in H and V directions: +/- 0.31 mm, Rotational accuracy of H and V: +/- 1.5 deg.

Weight

Approx. 52g

Interface Connector

USB Connector: USB 3.0 MicroB type / I/O Connector: HR10A-7R-6PB (Hirose) or equivalent

  Environmental

Operating Temperature

-

- Minimum

Environmental Temperature: -5°C

- Maximum

Camera housing temperature (top plate) shall not exceed 55°C

Storage Temperature

Environmental Temperature: -30 to +65 ºC, Environmental Humidity: 0 to 85%

Vibration

20 Hz ~ 200 Hz ~ 20 Hz (5 min. /cycle), Acceleration 10G, XYZ 3 directions 30 minutes each

Shock

Acceleration 38G, half amplitude 6ms, XYZ 3 directions 3 times each

Standard Compliancy

TBD (EMS: EN61000-6-2, EMI: EN55011)

RoHS

RoHS Compliant
