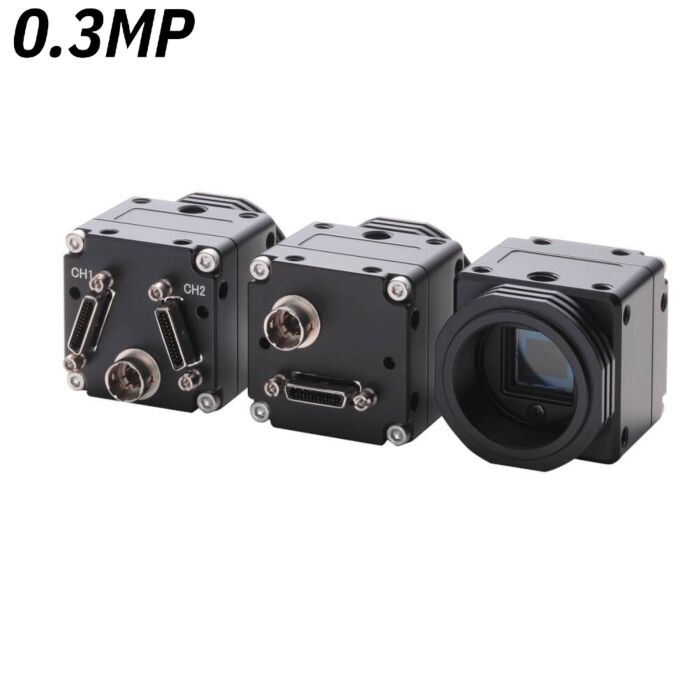

The Sentech STC-MC32PCL is a CCD camera link 1/2" color camera (CMOS Sensor: Sony ICX414AL)
SKU
STC-MC32PCL

The Sentech STC-MC32PCL is part of the CL CCD line of cameras available for purchase.



Features:

  • CameraLink CCD model (standard model)
  • Smallest and lightest compact camera link camera
  • 1/2 inch VGA CCD device adopted
  •

    Applications:

  • Industrial IMaging
  • Industrial Inspection
  • Machine Vision
  • Model STC-MC32PCL (color) STC-MB32PCL (black and white)
    Image sensor 1/2 inch color CCD (made by Sony:)

    1/2 inch black and white CCD (made by Sony: ICX414AL)

    Total number of pixels 692 (H) x 504 (V)
    Effective number of pixels VGA class: 648 (H) x 494 (V)
    Chip size (mm) 5.79 (H) x 6.15 (V) mm
    Cell size (μm) 9.9 (H) x 9.9 (V) μm
    Imaging method progressive
    Partial scan Full scan, 1/2 scan, 1/4 scan,
    Optional partial scan (minimum number of lines: 232)

    Binning, binning, partial scan,
    Binning 1/2 partial scan,
    Binning 1/4 partial scan,
    Binning arbitrary partial scan (minimum number of lines: 232)

    Full scan, 1/2 scan, 1/4 scan,
    Optional partial scan (minimum number of lines: 232)
    Vertical frequency (frame rate) 31.47 (30 fps) / 62.94 (60 fps) / 94.784 (90 fps) Hz
    Horizontal frequency 15.7343 (30 fps) / 31.4685 (60 fps) / 47.2028 (90 fps) kHz
    Pixel frequency 12.2727 (30 fps) / 24.5454 (60 fps) / 36.8181 (90 fps) MHz
    S / N ratio (standard deviation) When outputting 10 bits: <= 10 Digit (Gain 0 dB)
    Minimum subject illumination 0.1 Lux or less at F1.2 0.1 Lux or less at F1.2
    Video output 8/10/12 bit Raw, RGB Data (Base configuration)
    Number of taps 1 tap
    Shutter speed OFF, 1/3 to 1 / 40,000 seconds (arbitrary H and CLK units) (30 fps)
    OFF, 1/7 to 1 / 80,000 seconds (arbitrary H and CLK units) (60 fps)
    OFF, 1/11 to 1 / 120,000 seconds (arbitrary H and CLK units) (90 fps)
    ALC Supported (AE, AGC), (Default: AE: OFF, AGC: OFF)
    gain 0 to 27 dB
    Gamma characteristics 1.0, 0.45
    White balance Manual, Auto -
    Pixel defect correction Up to 64 points
    Power supply 12 Vdc (via camera link connector)
    Current consumption 2.0 W or less
    Trigger mode Edge preset trigger (V reset, non reset), pulse width trigger (V reset, non reset)
    Communication function RS232 compliant (via camera link connector)
    Dimensions (W) x (H) x (D) 28 (W) x 28 (H) x 40 (D) mm * Connector not included → Drawing (PDF)
    Optical filter No IR cut filter No IR cut filter
    Optical axis accuracy Position accuracy in H, V direction: ± 0.31 mm, Rotation accuracy of effective pixel plane in H, V direction: ± 2.1 °
    Material Outer case: aluminum alloy, pedestal: polycarbonate ABS
    Lens mount C mount
    External connector Camera Link Connector: Miniature Connector (SDR)
    Input / output signal connector: HR10A-7R-6PB (made by Hirose) equivalent
    Camera mounting pedestal 4 side mounting possible (underside: 4 points, 3 side: 3 points screwing)
    weight About 42 g
    Guaranteed operating temperature Ambient temperature: 0 to + 50 ° C, Humidity: 0 to 85% RH (without condensation)
    storage temperature Ambient temperature: -25 ° C to +65 ° C, Humidity: 0 to 90% RH (no condensation)
    Vibration resistance 20 Hz to 200 Hz to 20 Hz (5 minutes / cycle), acceleration 10 G, 30 minutes in each direction
    Shock resistance Acceleration 70 G, 6 ms (sine half wave), 3 times in each direction of XYZ
    standard EMS: EN61000-6-2, EMI: EN55011 (Class A)
    Regulatory chemical substance correspondence RoHS compliant
