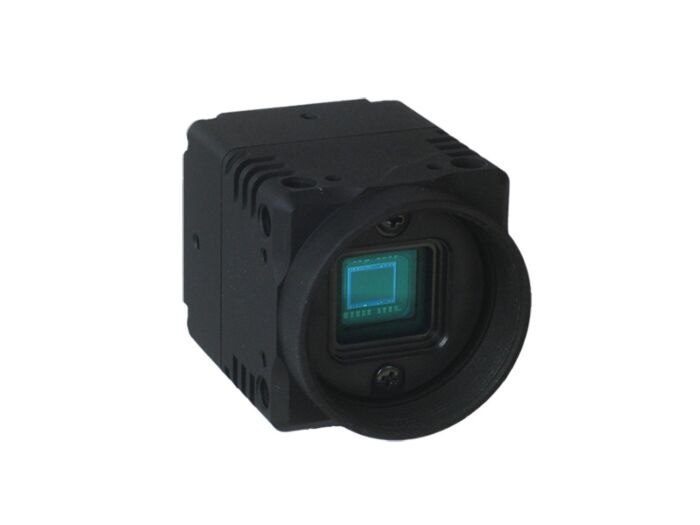

Omron STC-MC133USB SXVGA Color Camera (Discontinued)
SKU
STC-MC133USB
Quick Overview
*Please note this product is subject to tariff fee*
The STC-MC133USB is an ultra-compact, progressive scan, SXVGA, USB camera with a 1/3” color CCD.
*Product is discontinued, Replacement Option: STC-MCS163U3V
It features 22 fps, hardware and software triggering image capture, digital zoom and a feature-rich user based menu setup and control.
1/3" CCD Image Sensor, SXGA (1.25 MP) |
Ultra-Compact Size |
Hardware & Software Trigger |
Name | Specifications |
|---|---|
Model No | STC-MC133USB |
Image Sensor | 1/3” Interline SXVGA color progressive CCD: ICX445AQ (Sony) |
Total Picture Element | 1348 (H) x 976 (V) |
Effective Picture Element | 1296 (H) x 966 (V) |
Chip Size | 6.26 (H) x 5.01 (V) mm |
Cell Size | 3.75 (H) x 3.75 (V) µm |
Scanning System | Progressive |
Resolution | 1280 (H) x 960 (V) (Full scanning) 1280 (H) x 440 (V) (1/2 partial scanning) 1280 (H) x 168 (V) (1/4 partial scanning) |
Scanning Methods | Full scanning, 1/1 partial scanning, 1/2 partial scanning, 1/4 partial scanning, Variable partial scanning |
Maximum Frame Rate | |
- Full Scanning | 22.40 fps (Normal) / 11.20 fps (1/2 clock) / 5.60 fps (1/4 clock) |
- 1/2 Partial Scanning | 44.81 fps (Normal) / 22.40 fps (1/2 clock) / 11.20 fps (1/4 clock) |
- 1/4 Partial Scanning | 89.80 fps (Normal) / 44.90 fps (1/2 clock) / 22.45 fps (1/4 clock) |
Pixel Frequency | 36.818 MHz (Normal) / 18.409 MHz (1/2 clock) / 9.20453 MHz (1/4 clock) |
Video Output | 8bit / 10bit / 12bit |
Minimum Scene Illumination | 11 Lux at F1.2 |
Sync System | Internal |
Electronic Shutter | Auto / Manual (software selectable) |
- Normal | 1/36,818,182 to 1/22.40 seconds |
- 1/2 Clock | 1/18,409,091 to 1/11.20 seconds |
- 1/4 Clock | 1/9,204,545 to 1/5.60 seconds |
Gain | Auto / Manual (software selectable) |
Gamma | Manual (software selectable) |
White Balance | Auto / Manual / One shot (software selectable) |
Trigger Mode | Free-run / Edge preset trigger / Pulse width trigger / Start & stop trigger (software selectable) |
Input / Output | USB 2.0 High Speed |
Power | - |
- Input Voltage | +5 Vdc through USB connector (+4.4 to +5.25V) |
- Consumption | < 300 mA |
Dimensions | 28 (W) x 28 (H) x 37 (D) mm (excluding connector) |
Lens Mount | CS mount |
Weight | Approximately 45g |
Interface Connector | USB: mini-B USB connector IO signal: 6pin connector (HR10A-7R-6PB or equivalent) |
Temperature | - |
- Operational | 0 ~ 40 deg. C |
- Storage | -30 ~ 65 deg. C |
Vibration | 20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each |
Shock | Acceleration 70G, half amplitude 6 ms, 3 directions 3 times each |
Standard Compliancy | EMS: En61000-6-2, EMI: EN61000-6-3 (Class B) |
RoHS | RoHS Compliant |
