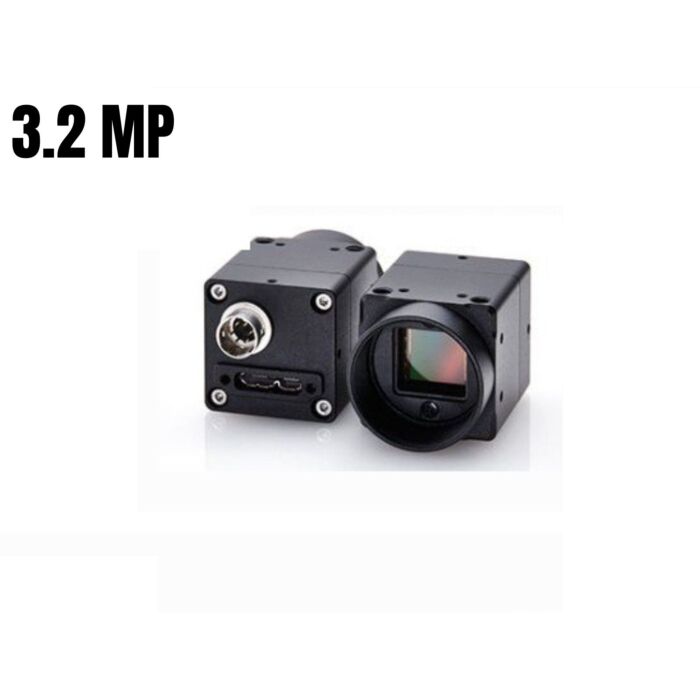

Omron STC-MBS322U3V (STCMBS322U3V) 3.2MP USB3 Monochrome Camera
SKU
STC-MBS322U3V
$1,431.75
Quick Overview
*Please note tariff fee is included in price*
The STC-MBS322U3V color camera features a IMX252 3.2MP global shutter sensor with 120fps. This camera combines high megapixel resolution with blazingly fast frame rate in order to provide the best machine vision camera on the market.
STC-MBS322U3V-SE Models Also Available
These Omron cameras are perfect for applications requiring high quality with it's IMX252 3.2MP global shutter sensor with 120fps.
Features:
- USB3 Vision Compliant
- 121.0 fps
- 1/1.8” 3.2M Progressive B\W CMOS
- Sony: IMX252LLR-C
| Image Sensor | 1/1.8” 3.2M Progressive Monochrome CMOS (Sony: IMX252LLR-C |
| Shutter Type | Global |
| Active Picture Element | 2048 (H) x 1536 (V) |
| Cell Size | 3.45 (H) x 3.45 (V) µm |
| Sync System | Free run, External trigger (Hardware, Software) |
| Maximum Frame Rate (Full Scan) | - |
| -8Bit Output | 121.0 fps |
| -10Bit Output | 60.5 fps |
| -10bit Packed output | 91.6 fps |
| -12Bit Output | 60.5 fps |
| -12bit Packed output | 80.2 fps |
| ADC bit width | 10bit / 12bit |
| Video Format | 8/10/12 bit output (Support packed on 10bit, 12bit) |
| Noise Level | - |
| -8Bit Output | - |
| -10bit / 10bit Packed Output | ≤ 12 LSBs (Gain 0 dB) |
| -12bit / 12bit Packed Output | ≤ 48 Digit (gain 0 dB) |
| Sensitivity | 1240 Lux |
| Exposure Time | - |
| -8Bit Output | 19.0μseconds to 22 seconds |
| -10Bit Output | 24.3μseconds to 44 seconds |
| -10bit Packed output | 20.7μseconds to 29 seconds |
| -12Bit Output | 24.3μseconds to 44 seconds |
| -12bit Packed output | 21.7μseconds to 33 seconds |
| Gain | - |
| -Analog (Gain) | 0 to 24 dB |
| -Digital (Gain) | 0 to 6 dB |
| Black Level | - |
| -8Bit Output | 0 to 31 |
| -10bit / 10bit Packed Output | 0 to 127 |
| -12bit / 12bit Packed Output | 0 to 511 |
| White Balance | N/A |
| ROI (AOI) | Horizontal: 64 to 2448 (2432 on Packed) / Vertical: 32 to 2048 Adjustable Steps for offset:16 pixels in horizontal direction (64 pixels on Packed) / 4 lines in vertical direction Adjustable Steps for offset: 4 pixels in horizontal direction / 4 lines in vertical direction |
| Multi ROI | 16 Regions (Horizontal 4 regions x Vertical 4 regions) |
| Gamma | Gamma Table =0.1 to 4.0 |
| Binning | Individual x2 Horizontal, Vertical Binning (Horizontal: Average, Vertical: Addition) |
| Decimation | Individual x2 Horizontal, Vertical Decimation |
| Image Flip | Horizontal / Vertical / Horizontal and Vertical / OFF |
| Pixel Defect Correction | Up to 64 points |
| Auto Image Control | - |
| -Auto Exposure | Support |
| -Auto Gain | Support |
| -Auto White Blance | Support |
| Operating Mode | Free-run / Edge-preset Trigger / Pulse width Trigger / Start Stop Trigger |
| User Setting Storage | Support |
| Communication | Via USB3.0 bus |
| Interface | USB 3.0 Super Speed (USB 3.0 Micro B) |
| Protocol | USB3 Vision® 1.0.1, GenICam Standard Version (SFNC 2.2, PFNC 2.0) compliant and Sentech’s unique protocol (on Normal SDK, Trigger SDK) |
| Input/Output | Three GPIO, One Camera Hardware Reset |
| Power | - |
| -Input Voltage | +5 Vdc through USB connector |
| Consumption | -Consumption |
