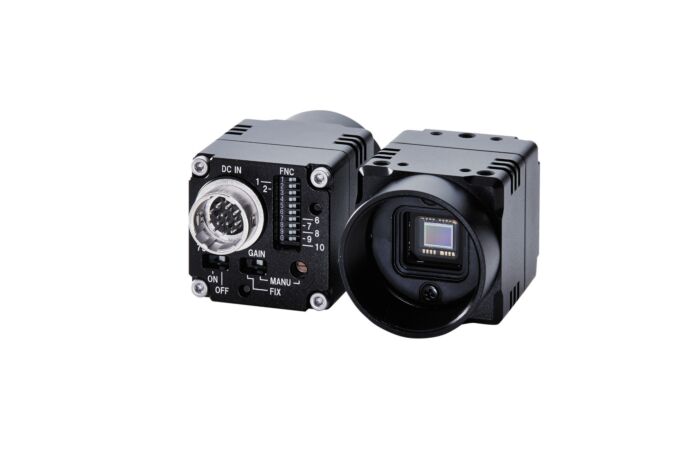

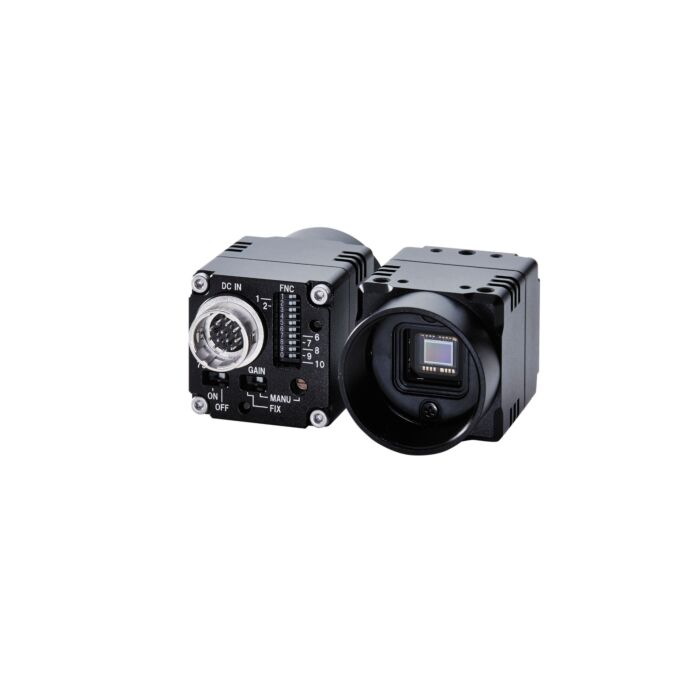

Omron STC-MB83A Progressive Scan EIA Monochrome Cased Camera (CMOS Sensor: Sony ICX204AL) (Discontinued)
Sentech's MB83A is a 1/3", monochrome, progressive scan, cube camera with 1024 x 768 resolution. (CMOS Sensor: Sony ICX204AL)
*Product is discontinued, Replacement Option: STC-MB33SS
The STC-MB83A (STCMB83A) features an XGA sensor with a scan rate of 29 fps, analog output and variable integration shutter trigger.
Features:
- 1/3" CCD Image Sensor, EIA
- 29 FPS
- 770 TV Line
Applications:
- Remote Viewing
- Surveillance
- Inspection
- Industrial
- Security
Imaging
Model No | STC-MB83A |
Image Sensor | 1/3" Progressive Monochrome CCD (Sony: ICX204AL) |
Effective Picture Element | 1034 (H) x 779 (V) |
Active Picture Element | XGA Class 1024 (H) x 768 (V) |
Chip Size | 5.8 (H) x 4.92 (V) mm |
Cell Size | 4.65 (H) x 4.65 (V) µm |
Function
Scanning System | Full scanning, Variable ROI |
Scanning Method | - |
- *1: un-support on 90fps | Full scanning, Partial full scanning, 1/2partial scanning,1/4 partial scanning, Variable partial scanning, Binning 1/2 partial scanning, Binning 1/4 partial scanninG Binning variable partial scanning |
Vertical Frequency (Frame Rate) | 29 Hz |
Horizontal Frequency | 23.23 kHz |
Pixel Frequency | 29.5 MHz |
Resolution | 770 TV Line |
S/N Ratio | 56 dB (GAIN 0dB) |
Minimum Scene Illumination | 0.12 Lux @ F1.2 |
Sync System | Internal / External (Auto Select) |
Video Output | 1.0 Vp-p / 75 Ω, DC coupling |
Shutter Speed | - |
- Dip Switch | OFF, 1/200, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/8,000, 1/20,000 second |
- Communication | OFF, 1/7 ~ 1/80,000 seconds (Variable at every H and clock) |
ALC | Support(AE,AGC), (Defalut: AE:OFF, AGC:OFF ) |
Gain | 0 to 27 dB (Default: 0 dB) |
Gamma | 1 / 0.45 (Default: 1) |
Operational Mode | Edge Preset Trigger (V-reset, Non-Reset) Pulse Width Trigger (V-reset, Non-Reset) |
Pixel Defect Correction | Up to 64 pixels (Default: ON） |
Field update Function | Support |
Communication | RS232 via 12 Pin Connector |
Power | - |
- Input Voltage | DC12V +/- 10% |
- Consumption | Less than 1.8 W |
Mechanical
Dimensions | 28 (W) x 28 (H) x 40 (D) mm (excluding the connector) |
Lens Mount | C Mount |
Optical Filter | No IR cut filter |
Optical Center Accuracy | Positional Accuracy in H and V Directions: +/- 0.31 mm, Rotational accuracy of H and V: +/- 2.1 deg. |
Material | - |
- Case | Aluminum alloy |
- Tripod | Polycarbonate ABS |
Interface Connector | HR10A-10R-12PB (Hirose) or equivalent |
Tripod | Tripod can be attached to 2 plates (4 screws on the bottom plate, 3 screws on the top plate) |
Weight | Approximately 42 g |
Environmental
Operating Temperature | Environmental Temperature: 0 to +50 deg. C, Environmental Humidity: 0 to 85% |
Storage Temperature | Environmental Temperature: -25 to +65 deg. C, Environmental Humidity: 0 to 90% |
Vibration | 20 Hz ~ 200 Hz ~ 20 Hz (5 min. /cycle), Acceleration 10G, XYZ 3 directions 30 minutes each |
Shock | Acceleration 70G, half amplitude 6 ms, XYZ 3 directions 3 times each |
Standard Compliancy | EMS :EN61000-6-2, EMI :EN61000-6-3 (Class A) |
RoHS | RoHS Compliant |
