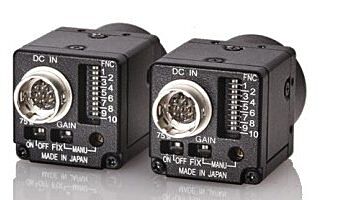

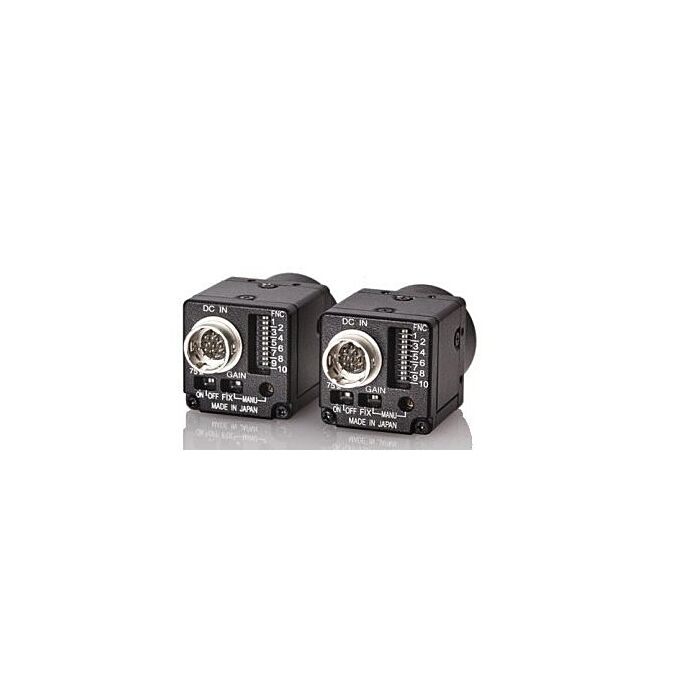

Omron STC-MB32A (STCMB32A) Progressive Scan Monochrome Cased Camera (Discontinued)
*Product is Discontinued, Call For Replacement Options
The Omron STC-MB32A is a 1/2", monochrome, progressive scan, cube camera with 648 x 494 resolution. (CMOS Sensor: Sony ICX414AL)This series features a VGA sensor with a scan rate of 30, 60 and 90fps, analog output and variable integration shutter trigger.
Features:
Applications:
Imaging
Model No | STC-MB32A |
Image Sensor | 1/2" Progressive Monochrome CCD (Sony: ICX414AL) |
Effective Picture Element | 659 (H) x 494 (V) |
Active Picture Element | VGA: 648 (H) x 494 (V) |
Chip Size | 7.48 (H) x 6.15 (V) mm |
Cell Size | 9.9 (H) x 9.9 (V) μm |
Function
Scanning System | Full scanning, Variable ROI |
Scanning Method | - |
- *1: un-support on 90fps | Full scanning, Partial full scanning, 1/2partial scanning,1/4 partial scanning, Variable partial scanning, Binning 1/2 partial scanning, Binning 1/4 partial scanninG Binning variable partial scanning |
Vertical Frequency (Frame Rate) | 31.47 (30 fps) / 62.94 (60 fps) / 94.784 (90 fps) Hz |
Horizontal Frequency | 15.7343 (30 fps) / 31.4685 (60 fps) / 47.2028 (90 fps) kHz |
Pixel Frequency | 12.2727 (30 fps) / 24.5454 (60 fps) / 36.8181 (90 fps) MHz |
Resolution | 480 TV Lines |
S/N Ratio | 56 dB (GAIN 0dB) |
Minimum Scene Illumination | 0.1 Lux at F1.2 |
Sync System | Internal / External (Auto Select) |
Video Output | 1.0 Vp-p / 75 Ω, DC coupling |
Shutter Speed | - |
- Dip Switch | OFF, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 seconds (30fps) OFF, 1/200, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/8,000, 1/20,000 seconds (60fps) OFF, 1/300, 1/750, 1/1,500, 1/3,000, 1/6,000, 1/12,000, 1/30,000 seconds (90fps) |
- Communication | OFF, 1/3 ~ 1/40,000 seconds (Variable at every H and clock) (30 fps) OFF, 1/7 ~ 1/80,000 seconds (Variable at every H and clock) (60 fps) OFF, 1/11 ~ 1/120,000 seconds (Variable at every H and clock) (90 fps) |
ALC | Support(AE,AGC), (Defalut: AE:OFF, AGC:OFF ) |
Gain | 0 to 27 dB (Default: 0 dB) |
Gamma | 1 / 0.45 (Default: 1) |
Operational Mode | Edge Preset Trigger (V-reset, Non-Reset) Pulse Width Trigger (V-reset, Non-Reset) |
Pixel Defect Correction | Up to 64 pixels (Default: ON） |
Field update Function | Support |
Communication | RS232 via 12 Pin Connector |
Power | - |
- Input Voltage | DC12V +/- 10% |
- Consumption | Less than 2.5 W |
Mechanical
Dimensions | 28 (W) x 28 (H) x 40 (D) mm (excluding the connector) |
Lens Mount | C Mount |
Optical Filter | No IR cut filter |
Optical Center Accuracy | Positional Accuracy in H and V Directions: +/- 0.31 mm, Rotational accuracy of H and V: +/- 2.1 deg. |
Material | - |
- Case | Aluminum alloy |
- Tripod | Polycarbonate ABS |
Interface Connector | HR10A-10R-12PB (Hirose) or equivalent |
Tripod | Tripod can be attached to 2 plates (4 screws on the bottom plate, 3 screws on the top plate) |
Weight | Approximately 42 g |
Environmental
Operating Temperature | Environmental Temperature: 0 to +50 deg. C, Environmental Humidity: 0 to 85% |
Storage Temperature | Environmental Temperature: -25 to +65 deg. C, Environmental Humidity: 0 to 90% |
Vibration | 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, XYZ 3 directions 30 min. each |
Shock | Acceleration 70G, half amplitude 6 ms, XYZ 3 directions 3 times each |
Standard Compliancy | EMS: EN61000-6-2, EMI: EN55011 (Class B) |
RoHS | RoHS Compliant |
