Omron STC-MB152PCL CCD Camera Link 1/2" Monochrome Camera (Discontinued)
SKU
STC-MB152PCL
Quick Overview
*Please note this product is subject to tariff fee*

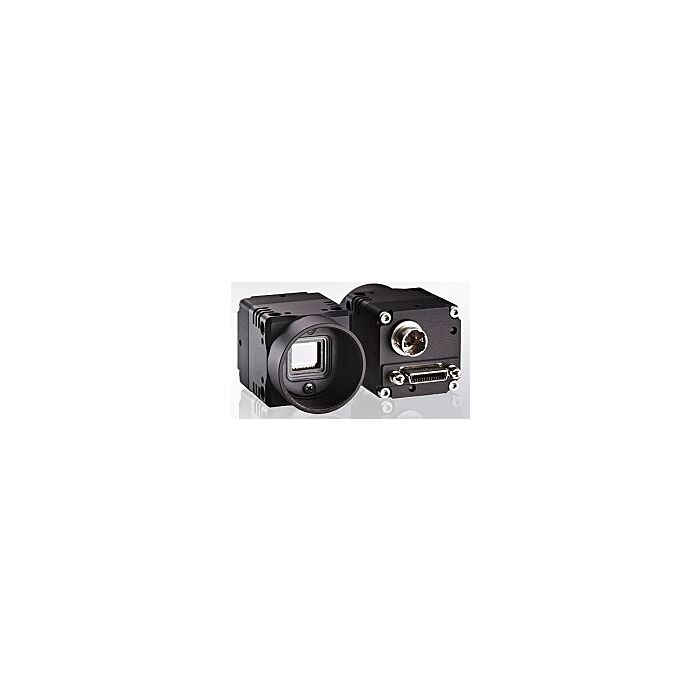

Sentech's STC-MB152PCL is a CCD Camera Link 1/2" monochrome camera and is RS232 compliant through a Camera Link connector.
*Product is discontinued, Replacement Option: STC-SPB163PCL
The STC-MB152PCL has 1 frame (free-run mode), trigger mode, and a C-Mount.
Features:
Applications:
| Model | STC-MC152PCL (color) | STC-MB152PCL (black and white) | |
| Image sensor | 1/2 inch square pixel type SXGA progressive color CCD (Sony made: ICX205AK) spectral distribution graph | 1/2 inch square pixel type SXGA progressive black and white CCD (Sony: ICX205AL) spectral distribution graph | |
| Total number of pixels | 1434 (H) x 1050 (V) | ||
| Effective number of pixels | SXGA class: 1360 (H) x 1040 (V) | ||
| Chip size (mm) | 7.60 (H) x 6.20 (V) mm | ||
| Cell size (μm) | 4.65 (H) x 4.65 (V) μm | ||
| Imaging method | progressive | ||
| Partial scan | Full scan, 1/2 scan, 1/4 scan, optional partial scan (minimum number of lines: 232) Binning, binning partial scan, | Full scan, 1/2 scan, 1/4 scan, optional partial scan (minimum number of lines: 232) | |
| Vertical frequency (frame rate) | 19.26 Hz | ||
| Horizontal frequency | 20.57 KHz | ||
| Pixel frequency | 36.8181 MHz | ||
| S / N ratio (standard deviation) | When outputting 10 bits: <= 10 Digit (Gain 0 dB) | ||
| Minimum subject illumination | 0.1 Lux or less at F1.2 | 0.1 Lux or less at F1.2 | |
| Video output | 8/10/12 bit Raw, RGB Data (Base configuration) | ||
| Number of taps | 1 tap | ||
| Shutter speed | OFF, 1/5 to 1 / 120,000 seconds (arbitrary H and CLK units) | ||
| ALC | Supported (AE, AGC), (Default: AE: OFF, AGC: OFF) | ||
| gain | 0 to 27 dB | ||
| Gamma characteristics | 1.0, 0.45 | ||
| White balance | Manual, Auto | - | |
| Pixel defect correction | Up to 64 points | ||
| Power supply | 12 Vdc (via camera link connector) | ||
| Current consumption | 3.0 W or less | ||
| Trigger mode | Edge preset trigger (V reset, non reset), pulse width trigger (V reset, non reset) | ||
| Communication function | RS232 compliant (via camera link connector) | ||
| Dimensions (W) x (H) x (D) | 28 (W) x 28 (H) x 40 (D) mm * Connector not included → Drawing (PDF) | ||
| Optical filter | No IR cut filter | No IR cut filter | |
| Optical axis accuracy | Position accuracy in H, V direction: ± 0.31 mm, Rotation accuracy of effective pixel plane in H, V direction: ± 2.1 ° | ||
| Material | Outer case: aluminum alloy, pedestal: polycarbonate ABS | ||
| Lens mount | C mount | ||
| External connector | Camera link connector: Miniature connector (SDR) I / O signal connector: HR10A-7R-6PB (made by Hirose) equivalent | ||
| Camera mounting pedestal | 4 side mounting possible (underside: 4 points, 3 side: 3 points screwing) | ||
| weight | About 40 g | ||
| Guaranteed operating temperature | Ambient temperature: 0 to + 50 ° C, Humidity: 0 to 85% RH (without condensation) | ||
| storage temperature | Ambient temperature: -25 ° C to +65 ° C, Humidity: 0 to 90% RH (no condensation) | ||
| Vibration resistance | 20 Hz to 200 Hz to 20 Hz (5 minutes / cycle), acceleration 10 G, 30 minutes in each direction | ||
| Shock resistance | Acceleration 70 G, 6 ms (sine half wave), 3 times in each direction of XYZ | ||
| standard | EMS: EN61000-6-2, EMI: EN55011 (Class A) | ||
| Regulatory chemical substance correspondence | RoHS compliant | ||
