Omron STC-HD93SDI 1/3" HD CCD Camera (Discontinued)
*Product is discontinued, Replacement Option: STC-HD213SDI
1280 pixels x 720p, 1/3" CCD, 60 fps, HD-SDI, Cased High Definition Block Camera. Available in Color Video Output DVI Model- DVI 1.0 conformity RGB, 1280 (H) x 720 (V),59.94Hz / 60Hz / 50Hz / 29.97Hz / 30Hz / 25Hz SDI Model - HD-SDI (SMPTE292M Compliant) YPbPr, 1280 (H) x 720 (V), 60 Hz / 59.94 Hz / 50 Hz Min Illumination: 4 Lux at F1.2 at 50 % IRE, AGC ON and 1/60 seconds shutter speed with IR cut filter (CMOS Sensor: Sony ICX692AQA)

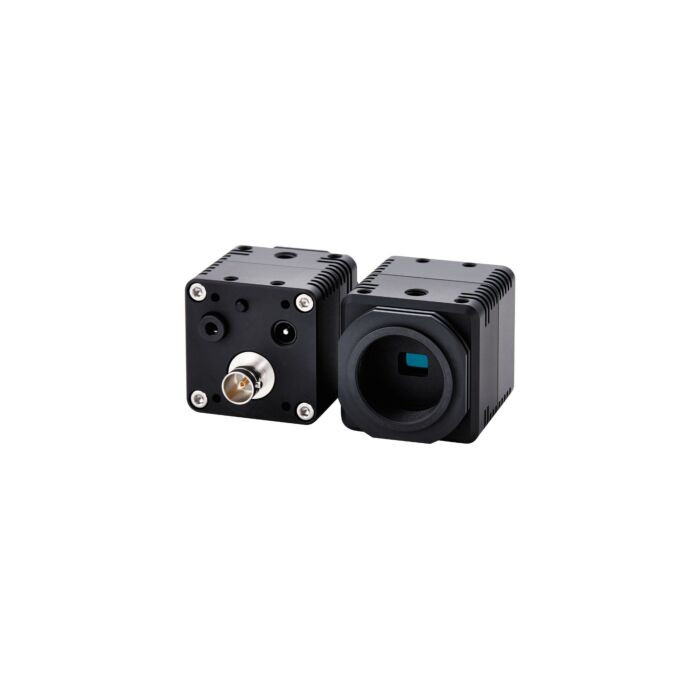

The STC-HD93SDI is our first HD Digital output cased camera, ideal for applications requiring direct-connect monitor viewing with High Definition resolution. This CCD based camera outputs a true HD 720p, 16x9 image at 60fps. It also features the capability to program 28 individual DSP profiles and has a programmable on-camera push-button for manual control. The STC-HD93SDI also boasts an ultra-compact size of 40 (W) x 40 (H) x 45.8 (D) mm.
Features:
Applications:
| Image Sensor | 1/3" interline SXGA CCD: ICX692AQA |
| HD Active Picture Element | 1280 (H) x 720 (V) |
| Chip Size | 6.04 (H) x 4.0 (V) mm |
| Cell Size | 4.08 (H) x 4.08 (V) µm |
| Minimum Scene Illumination | 4 Lux at F1.2 at 50 % IRE, AGC ON and 1/60 seconds shutter speed with IR cut filter |
| Resolution | 600 TV lines |
| Sync System | Internal |
SDI Model | HD-SDI (SMPTE292M Compliant) YPbPr, 1280 (H) x 720 (V), 60 Hz / 59.94 Hz / 50 Hz |
| ALC | Can be configured via the UART communication with auto electronic shutter and AGC |
| Shutter Speed | Adjustable shutter speed via the UART communication Up to 1/100,000 seconds at 60 Hz / 59.94 Hz or up to 1/83,947 seconds at 50 Hz |
| Gain | AGC or Fixed gain selectable via the UART communication Gain range: 0 to 18.3 dB |
| Digital Gain | Up to 5.9866 dB |
| Gamma | 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma Selectable gamma via the UART communication |
| White Balance | Auto white balance / manual white balance / push to set white balance Selectable white balance via the UART communication |
| Mirror Image | Normal image and horizontal flip are selectable mirror image via the UART |
| DSP Preset | Twenty eight DSP presets Selectable picture mode via the UART communication |
| Line Generator | Both horizontal and vertical with all available colors Adjustable thickness via the UART communication |
| Shadow Mask Generator | Both horizontal and vertical with shading level adjustment via the UART communication |
| Communication | +3.3V UART communication via 3.5Φ stereo jack |
| Character Generator | Built-in character generation function via the UART communication |
| Pixel Blemish Collection | Up to 64 pixel blemish static collection |
Input Voltage | +9 to +15 Vdc (Typical: +12 Vdc) |
Input Voltage | Less than 2.8W |
| Dimensions | 40 (W) x 40 (H) x 45.8 (D) mm |
| Optical Filter | IR cut filter on |
| Lens Mount | C mount/CS-mount |
Video Output | SDI Output：BNCconnector |
Power Input | 12V power jack |
External Control | 3.5Φ stereo jack with SW board |
Communication | 3.5Φ stereo jack |
| Button | Primary SW Initial press button function: push to set white balance Initial hold button function: Auto white balance (Function is selectable via the UART communication) |
| Weight | Approximate 120g |
| Operating Temperature | 0 to +40 deg. C |
| Storage Temperature | -30 to +65 deg. C |
| Vibration | 20Hz to 200Hz to 20Hz (5min./cycle), acceleration: 10G, 30 min., XYZ each directions |
| Shock | Acceleration: 38G, half amplitude 6ms, 3 times XYZ each directions |
| Standard Compliancy | EMS: EN61000-6-2, EMI: 55011 |
| RoHS | RoHS compliance |
