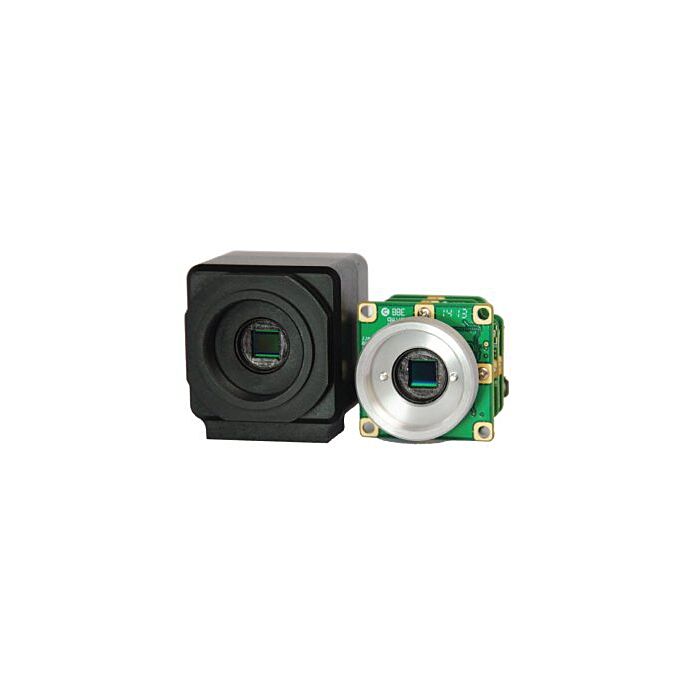

Omron STC-HD223B-CS (STCHD223BCS) 1/2.33" 1080p HDMI Camera
*Please note tariff fee is included in price*
The STC-HD233B-CS is NDAA Compliant our first CMOS HD Digital output cased CS-Mount camera, ideal for applications requiring direct-connect monitor viewing with High Definition resolution. This CMOS based camera outputs a true HD 1080p, 16x9 image at 60fps.The STC-HD223B-CS features the capability to program 28 individual DSP profiles and has a programmable on-camera push-button for manual control. The STC-HD233 also boasts an ultra-compact size of 40 (W) x 40 (H) x 51.1 (D) mm.
Features:
Applications:
Imaging
Model No | STC-HD223 |
Image Sensor | 1/2.33” 14 MP CMOS Sensor ( 4416 (H) x 3312 (V) ) |
HD Active Picture Elements | 1920 (H) x 1080 (V) / 1280 (H) x 720 (V) |
Scanning System | Full scanning, Variable ROI |
Image Size | 6.23 (H) x 4.65 (V) mm |
Function
Pixel Size | 1.4 (H) x 1.4 (V) um |
S/N Ratio | 35 dB |
Minimum Scene Illumination | 650 mV / Lux - sec |
Sync System | Internal |
Video Output | DVI 1.0 conformity RGB, 1920 (H) x 1080 (V) 60 / 50 / 30 Hz, 1280 (H) x 720 (V) 60 / 50 Hz |
Mechanical
Camera functions | - |
- Exposure Control | Shutter: 14.81 usec ~ 16.67 msec Configurable via UART communication |
- Gain Control | Gain: 1x ~ 60.24x Configurable via UART communication |
- White Balance | Auto, manual, or push to set white balance available Configurable via UART communication |
- Auto Band Filter | Configurable via UART communication |
- Auto Black Level Calibration | Configurable via UART communication |
- Gamma | 0.3 to 1.0 Configurable via UART communication |
- Binning | 2 x 2 Binning Configurable via UART communication |
- Mirror Image | Normal Image / Horizontal Flip / Vertical Flip / Horizontal & Vertical Flip Configurable via UART communication |
- Pixel Defect Correction | Automatic detection and correction Configurable via UART communication |
- UART Communication | +3.3V UART communication via 3.5 Φ stereo jack Speed: 9,600 bps |
Power | - |
- Input Voltage | +9 ~ +15 Vdc (Typical: +12 Vdc) |
- Consumption | 120 |
Dimensions | 40 (W) x 45 (H) x 41.1 (D) mm |
Optical Filter |
|
Lens Mount | CS-Mount (Cased & Board Cameras) No Lens Mount (Board Cameras) |
Interface Connector | - |
- Video Output | HDMI Connector |
- Power Input | 12V power jack |
- Communication | 3.5φ stereo jack |
Weight | Approx. 88g |
Environmental
Temperature | - |
- Operational | 0 to 50 deg. C |
- Storage | -30 ~ 65°C |
Standard Compliance | FCC Compliant |
RoHS | RoHS Compliant |
