Omron STC-HD203DV-CS (STCHD203DVCS) 1/2.8" CMOS Progressive Scan Camera

Omron STC-HD203DV (STCHD203DV) 1/2.8" CMOS Progressive Scan Cased Camera with 1080p HD Output

Sentech's STC-HD203 DV is a 60 fps, 1920 H x 1080 V, C-Mount, True 16 x 9 Format, Rolling Shutter, DVI Output (via HDMI Connector) camera ideal for applications requiring direct-connect monitor viewing with High Definition resolution.

*Product is discontinued, Replacement Option: STC-HD213DV

SKU
STC-HD203DV

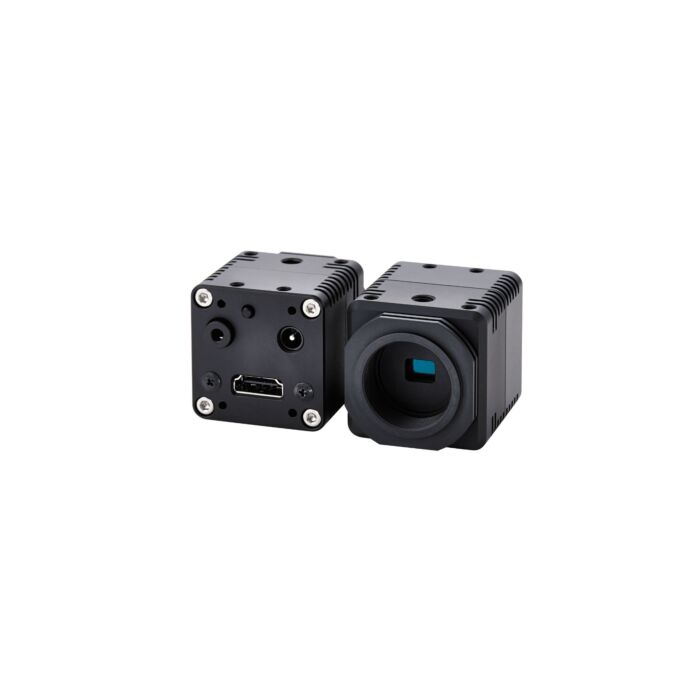

The STC-HD203DV is Sentech's brand new HD1080p digital output camera. The STC-HD203DV features a True 1080p HD resolution, direct connect to monitor via HDMI, 8 user preset picture modes, and Rolling Shutter. The STC-HD203DV comes in an ultra-compact 40 (W) x 40 (H) x 51.1(D) mm size and features a 1/2.8" Sony CMOS sensor.

Features:

  • 1/2.8" CMOS Sensor
  • Outputs 1080p and 720p
  • Supports Full HD at up to 60p
  • Programmable DSP Profiles


Applications:

  • Direct-connect monitor
  • Inspection
  • Microscopy
Image Device 1/2.8" 230Mega pixel CMOS (SONY: IMX136), Rolling Shutter
Active Picture Element 1936 (H) x 1096(V)
HD Active Picture Element 1920 (H) x 1080 (V)
Optical Size 5.44 (H) x 3.09 (V) mm
Cell Size 2.8 (H) x 2.8 (V) µm
Scanning Method Progressive
Minimum Scene Illumination TBD
Sync System Internal
Video Output -
DVI Model DVI 1.0 conformity RGB, 1080P60,1080P59.94, 1080P50, 1080P30,1080P29.97, 1080P25, 720P60, 720P59.94, 720P50 (Defalut:1080P60)
SDI Model 3G-SDI(SMPTE424M Compliant), 4:2:2 YCbCr 10bit 1080P60/59.94/50 HD-SDI (SMPTE292M Compliant) 4:2:2 YCbCr 10bit 1080P30/29.97/25 720P60/59.94/50
ALC Can be configured via the UART communication with auto electronic shutter and AGC
Shutter Speed Adjustable shutter speed via the UART communication (AEE)  (Default: Auto)
Extended Extend shutter frame unit (Up to2.55 sec)
High Speed Up to 1/10,000 seconds
Gain AGC or Fixed gain selectable via the UART communication 0 to 45 dB
Gamma Selectable gamma through 5 preset (one preset is manual, / 0.45 / 0.6 / 0.8 / 1) Selectable gamma via the UART communication (Default: manual)
White Balance Auto white balance / manual white balance / push to set white balance Selectable white balance via the UART (Default: Auto white balance)
Wide Dynamic Range Wide Dynamic Range OFF/ON (Defalut:OFF) WDR enable via the UART communication
Mirror Image Normal image / horizontal flip / vertical flip / horizontal vertical flip(180 degree rotation) Default: Normal image
Picture Modes 8 user preset mode, Normal picture mode or pseudo color mode can be selectable Selectable picture mode via the UART communication (Default: Preset 0)
Line Generator Both horizontal and vertical with all available colors (Line number: 2) Adjustable thickness via the UART communication ( Default: Disable)
Shadow Mask Generator Both horizontal and vertical with shading level adjustment via the UART communication( Default: Disable)
Freeze Image Selectable Live image or freeze image via the UART communication
Communication +3.3V UART communication via 3.5Φ stereo jack(Baud rate: 38,400bps, 19,200bps, 9,600bps)
Character Generation Built-in character generation function via the UART communication
Pixel Blemish Collection Support
Power -
Input Voltage +9 to +15 Vdc (Typical: +12 Vdc)
Consumption 4.4W(preliminary)
Dimensions 40 (W) x 40 (H) x 51.1(D) mm (Excluding the connector)
Optical Filter IR cut filter with OPLF
Material Aluminum (AC)
Lens Mount C mount (Recommendation F: more than 2.0))
Interface Connector -
Video Output DVI Output:HDMI connector,SDI Output:BNC connector
Power Input +9 to +15 Vdc (Typical: +12 Vdc)
External Control 3.5Φ stereo jack with SW board
Communication 3.5Φ stereo jack
Weight Approximately 116g
Operating Temperature -0 to 40 deg. C
Storage Temperature -30 to 65 deg. C
Vibration 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, XYZ 3 directions 30 min. each)
Shock Acceleration 38G, half amplitude 6ms, XYZ 3 directions 3times each
Standard Compliancy EMS: EN61000-6-2, EMI: EN55022 (Class B)
RoHS RoHS compliant
