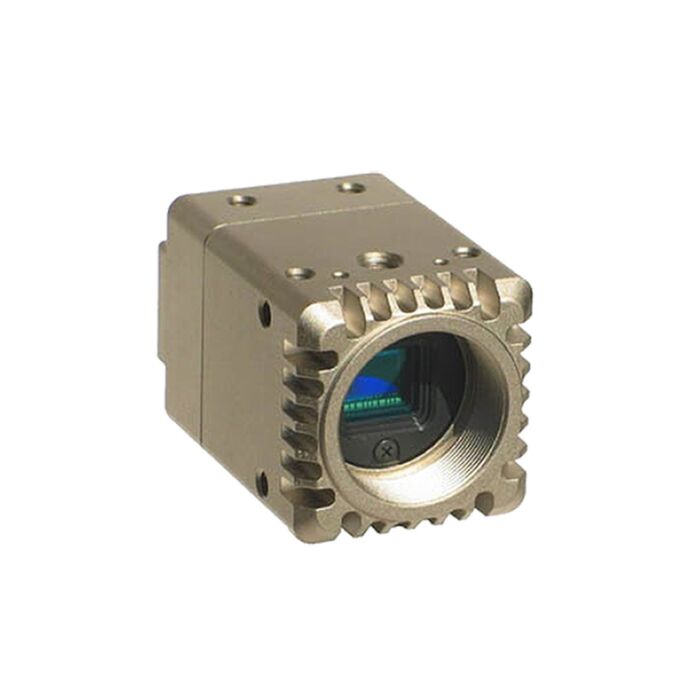

Omron STC-GE83A 0.8MP GigE, Monochrome Camera
SKU
STC-GE83A-Sentech EOL
Quick Overview
1024 pixels x 768 pixels, 1/3" PS IT CCD, 36 fps, Gigabit Ethernet Camera. Available in Monochrome (Black & White)
The STC-GE83A is part of Sentech's Standard GigE camera line. It features a 1/3" monochrome XGA sensor, 36fps and communication over a 6 pin Hirose or Ethernet connector. The STC-GE83A boasts precision housing with accurate CCD alignment, a DC Auto Iris Lens Driver, a user-programmable Area of Interest (AOI) and a Gamma Table that can be imported. This camera meets all industry standards for GigE Vision® and GenICam™.
Features:1/3" CCD Image Sensor XGA (0.8 Megapixel), 90fps User-Programmable Area of Interest (AOI) Low Light Applications Remote Viewing Industrial Inspection
Features:
Applications:
| STC-GE83A Specifications | |
| Imager | 1/3” Interline XGA monochrome progressive CCD: ICX204AL |
| Total Picture Element | 1077 (H) x 788 (V) |
| Active Picture Element | XGA: 1024 (H) x 768 (V) |
| Chip Size | 5.5 (H) x 4.92 (V) mm |
| Cell Size | 4.65 (H) x 4.65 (V) µm |
| Scanning System | Progressive |
| Vertical Frequency (Frame Rate) | 36.42113 Hz at full resolution 0.44238 to 150.21358 Hz adjustable via the communication Max. frame rate depends on the AOI setting Max. frame rate of the camera(150.21358) is 146 vertical resolution AOI setting |
| Horizontal Frequency | 28.9907 kHz |
| Pixel Frequency | 36.818175 MHz |
| Noise Level | |
@ 8bit output | ≤ 3 Digit (Gain 0 dB) |
@ 10bit output | ≤ 12 Digit (Gain 0 dB) |
@ 12bit output | ≤ 48 Digit (Gain 0 dB) |
| Minimum Scene Illumination | 0.95 Lux at F1.2, 36.42113 Hz |
| Sync System | Internal |
| Video Output | Digital 8, 10 or 12 bit Raw Data or RGB 8 bit |
| Interface | IEEE802.3 (1000BASE-T) |
| Protocol | GigE Vision® 1.2 and GenICam™ 2.0 compliant |
| Exposure Time | Preset continuous mode: 10 useconds to 16,777,216 useconds Preset trigger mode: 10 useconds to 16,777,216 useconds Pulse width mode: 10 useconds to Unlimited |
| ALC | Auto iris lens, electronic iris and AGC (ON / OFF) |
| Gain | 0 to 20.4 dB |
| Gamma | Gamma 1.0 (Factory default) or uploadable gamma table |
| AOI Function | Programmable AOI setting via the communication |
| Smear Reduction | Selectable ON / OFF via the communication |
| Color Interpolation | N/A |
| White Balance Function | N/A |
| Trigger Mode | Edge preset trigger, Pulse width trigger (unlimited long exposure) |
| Communication | UART communication through Ethernet port |
| I/Os | One opto-isolated input and two LVTTL outputs |
| Auto IRIS lens control | DC IRIS control input with video level target, peak/average and zone weight settings via the communication |
| Power | |
Input Voltage | +10.8 to +26.4 Vdc |
Consumption | < 5.0 W |
| Dimensions | 35 (W) x 35 (H) x 50.6 (D) mm excluding connectors |
| Optical Filter | No filter |
| Optical Center Accuracy | Positional accuracy in H and V directions: +/- 0.3 mm Rotational accuracy of H and V: +/- 1.5 deg. |
| Material | Aluminum (AC) |
| Lens Mount | C mount |
| Connectors | RJ45 connector Power/IO connector: HR10A-7R-6PB (Hirose) or equivalent DC IRIS lens connector: M1951 (EMUDEN) or equivalent |
| Camera Mount Screws | Two 1/4” Tripod screw holes: (One on each top and bottom plate), Twelve M4 screws holes: (Four on each top and bottom plate, two on each side plate) |
| Weight | Approximately 120g |
| Operating Temperature | |
Minimum | Environmental temperature -5 deg. C |
Maximum | Camera housing temperature (top plate) shall not exceed 65 deg.. C (This corresponds to an environmental temperature of approximately 35 deg. C) |
| Storage Temperature | Environmental temperature -30 ~ 65 deg. C |
| Vibration | 20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each |
| Shock | Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each |
| Standard Compliancy | EMS: EN61000-6-2, EMI: EN55011 |
| RoHS | RoHS Compliant |
