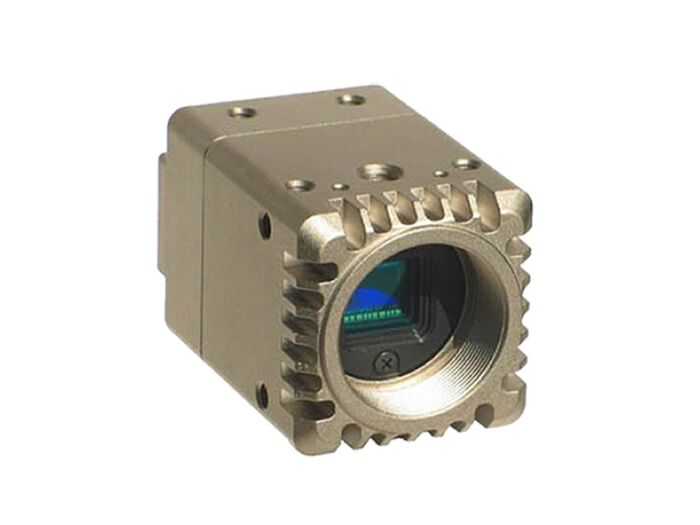

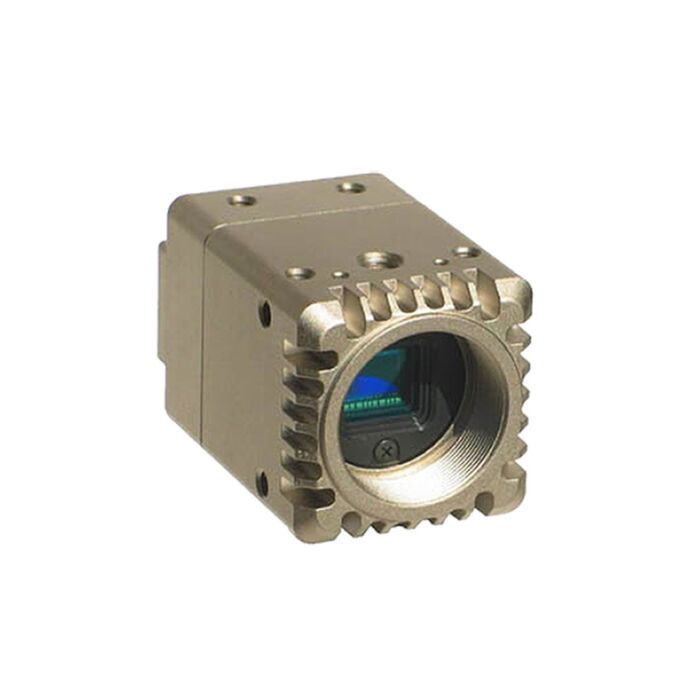

Omron STC-GE202A 2MP Monochrome GigE Camera
SKU
STC-GE202A-Sentech EOL
Quick Overview
*Please note this product is subject to tariff fee*
1624 pixels x 1236 pixels, 1/1.8" PS IT CCD, 15 fps, Gigabit Ethernet Camera. Available in Monochrome (Black & White)The STC-GE202A is part of Sentech's Standard GigE camera line. It features a 1/1.8" monochrome UXGA sensor, 15fps and communication over a 6 pin Hirose or Ethernet connector. The STCGE202A boasts precision housing with accurate CCD alignment, a DC Auto Iris Lens Driver, a user-programmable Area of Interest (AOI) and a Gamma Table that can be imported. This camera meets all industry standards for GigE Vision® and GenICam™.
Features:
- 1/1.8" CCD Image Sensor
- UXGA (2 Megapixel), 15fps
- User-Programmable Area of Interest (AOI)
| Image Sensor | 1/1.8” Interline UXGA monochrome progressive CCD: ICX274AL |
| Total Picture Element | 1688 (H) x 1246 (V) |
| Active Picture Element | UXGA: 1624 (H) x 1236 (V) |
| Chip Size | 8.5 (H) x 6.8 (V) mm |
| Cell Size | 4.4 (H) x 4.4 (V) µm |
| Scanning System | Progressive |
| Vertical Frequency (Frame Rate) | 15.31668 Hz at full resolution 0.29261 to 61.26674 Hz adjustable via the communication Max. frame rate depends on the AOI setting Max. frame rate of the camera(61.26674) is 230 vertical resolution AOI setting |
| Horizontal Frequency | 19.1761 kHz |
| Pixel Frequency | 36.818175 MHz |
| Noise Level | |
@ 8bit output | ≤ 3 Digit (Gain 0 dB) |
@ 10bit output | ≤ 12 Digit (Gain 0 dB) |
@ 12bit output | ≤ 48 Digit (Gain 0 dB) |
| Minimum Scene Illumination | 0.16 Lux at F1.2, 15.31668 Hz |
| Sync System | Internal |
| Video Output | Digital 8, 10 or 12 bit Raw Data or RGB 8 bit |
| Interface | IEEE802.3 (1000BASE-T) |
| Protocol | GigE Vision® 1.2 and GenICam™ 2.0 compliant |
| Exposure Time | Preset continuous mode: 10 useconds to 16,777,216 useconds Preset trigger mode: 10 useconds to 16,777,216 useconds Pulse width mode: 10 useconds to Unlimited |
| ALC | Auto iris lens, electronic iris and AGC (ON / OFF) |
| Gain | 0 to 20.4 dB |
| Gamma | Gamma 1.0 (Factory default) or uploadable gamma table |
| AOI Function | Programmable AOI setting via the communication |
| Smear Reduction | Selectable ON / OFF via the communication |
| Color Interpolation | N/A |
| White Balance Function | N/A |
| Trigger Mode | Edge preset trigger, Pulse width trigger (unlimited long exposure) |
| Communication | UART communication through Ethernet port |
| I/Os | One opto-isolated input and two LVTTL outputs |
| Auto IRIS lens control | DC IRIS control input with video level target, peak/average and zone weight settings via the communication |
| Power | |
Input Voltage | +10.8 to +26.4 Vdc |
Consumption | < 5.0 W |
| Dimensions | 35 (W) x 35 (H) x 50.6 (D) mm excluding connectors |
| Optical Filter | No filter |
| Optical Center Accuracy | Positional accuracy in H and V directions: +/- 0.3 mm Rotational accuracy of H and V: +/- 1.5 deg. |
| Material | Aluminum (AC) |
| Lens Mount | C mount |
| Connectors | RJ45 connector Power/IO connector: HR10A-7R-6PB (Hirose) or equivalent DC IRIS lens connector: M1951 (EMUDEN) or equivalent |
| Camera Mount Screws | Two 1/4” Tripod screw holes: (One on each top and bottom plate), Twelve M4 screws holes: (Four on each top and bottom plate, two on each side plate) |
| Weight | Approximately 120g |
| Operating Temperature | |
Minimum | Environmental temperature -5 deg. C |
Maximum | Camera housing temperature (top plate) shall not exceed 65 deg.. C (This corresponds to an environmental temperature of approximately 35 deg. C) |
| Storage Temperature | Environmental temperature -30 ~ 65 deg. C |
| Vibration | 20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each |
| Shock | Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each |
| Standard Compliancy | EMS: EN61000-6-2, EMI: EN55011 |
| RoHS | RoHS Compliant |
