Omron STC-E43A Machine Vision Analog Camera (CMOS Sensor: Sony ICX408AL)
SKU
STC-E43A
Quick Overview
CMOS Sensor: Sony ICX408AL NDAA Compliant

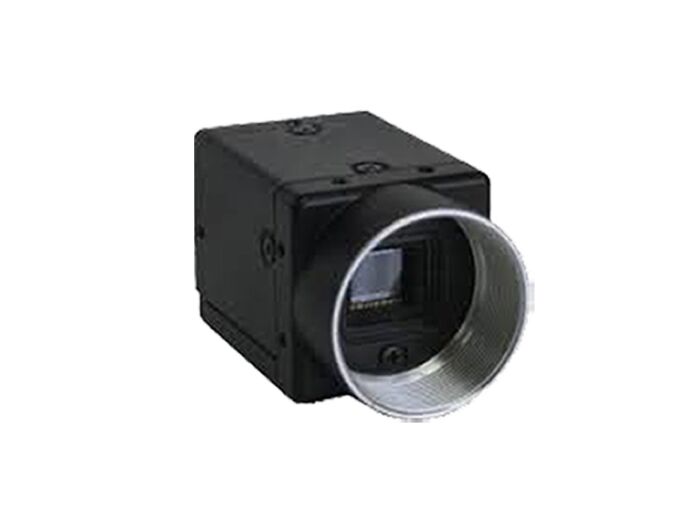

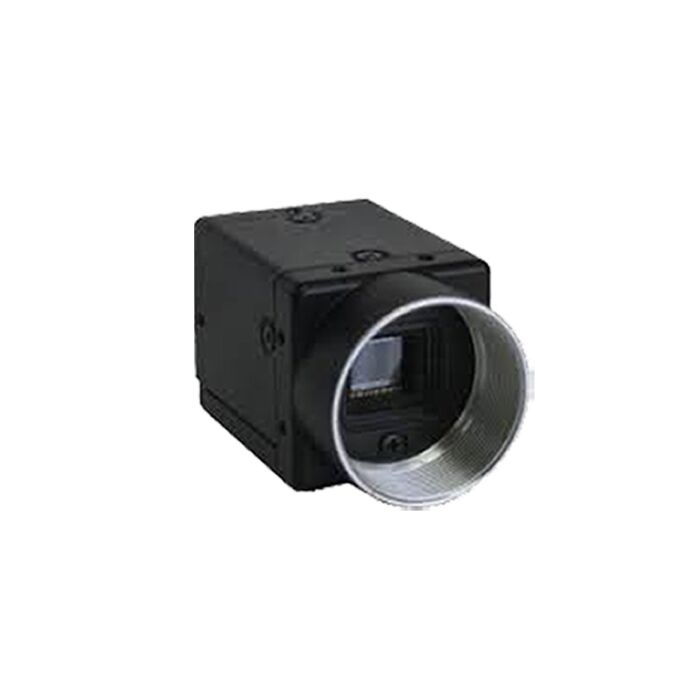

The STC-E43A camera is anindustrial grade 2:1 Interlace camera, with a 1/3" monochrome CCD. These camera is designed and machined with very tight tolerances to have optimal CCD centering quality. This camera is extremely reliable, provides a high quality image and is very cost-effective. The size of this camera is extremely small, the housing has manual dip switches for on-the-fly adjustments, and the camera can be controlled via RS232 software.
| Specifications | |
| Image Sensor | 1/3" interline B/W EIA CCD: ICX408AL |
| Scanning system | 2:1 Interlace |
| Total picture elements | 811 (H) x 508 (V) |
| Effective picture elements | 768 (H) x 494 (V) |
| Chip size | 5.59 (H) x 4.68 (V) |
| Cell size | 6.35 (H) x 7.40 (V) |
| Vertical frequency (Frame rate) | 15.734 kHz |
| Horizontal frequency | 59.94Hz |
| Pixel frequency | 14.318MHz |
| S/N ratio (standard deviation) | 56 dB (GAIN 0dB) |
| Minimum scene illumination | 0.75 Lux @ F12 |
| Sync. System | Internal / External |
| Video output | 1.0 Vp-p / 75Ω, DC Coupling (0V) |
| Shutter Speed | Dip Switch: F, 1/50, 1/100, 1/120/, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/8,000, 1/10,000, 1/20,000, 1/100,000 sec |
| Gain | 0 to 27 dB |
| Gamma | 1 / 0.45 |
| Communication | RS232 via Camera Link connector |
| Optical filter | No IR cut filter |
| Optical center accuracy | Position accuracy in H and V directions: +/- 0.31mm Rotation accuracy of H and V:+/- 2.1 deg. |
| Lens mount | C Mount |
| Input voltage | DC12V ± 10% |
| Consumption | Less than 1.8W |
| Operational Temp | Temperature: -5 to 50 deg. C, RH: 0 to 85% (No condensation) |
| Storage Temp | Temperature: -30 to 65 deg. C, RH: 0 to 90% (No condensation) |
| Dimensions | 28 (W) x 28 (H) x 46.3 (D) mm including lens mount and the connector |
| Weight: | Approximately 52g (Camera: 43g, tripod: 9g) |
