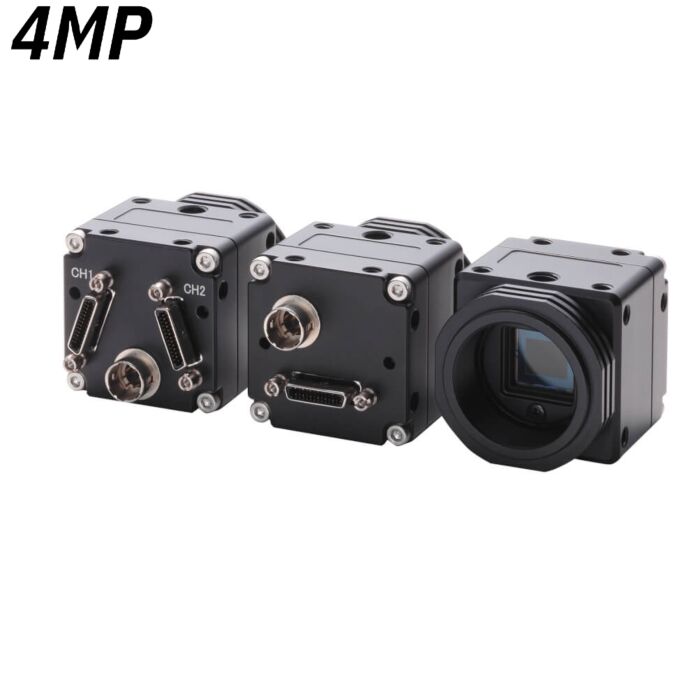

Omron STC-CMC401PCL (STCCMC401PCL) 4MP Mini CL Camera (PoCL) (CMOS Sensor: CMOSIS: CMV4000)
The STC-CMB401PCL also provides full triggering capabilities, a configurable AOI (Area of Interest) and comes in an ultra-small package of 40 (W) x 40 (H) x 40.5 (D) mm.
Features:
Imaging
Model No | STC-CMC401PCL |
Imager | 1" 4 MP Color Progressive CMOS (CMOSIS: CMV4000) |
Active Picture Element | 2048 (H) x 2048 (V) |
Chip Size | 11.264 (H) x 5.984 (V) mm |
Cell Size | 5.5 (H) x 5.5 (V) μm |
Function
Scanning System | Full scanning, Variable ROI |
Scanning Method | Full scanning, Variable AOI |
Pixel Frequency of the Sensor | - |
- 1X2-1Y (8bit/10bit): | 10.625MHz (2,048 x 1,088), 21.250MHz (1,024 x 1,088), 42.500MHz ( 512 x 1,088) |
- 1X4-1Y (8bit/10bit): | 21.250MHz (2,048 x 1,088), 42.500MHz (1,024 x 1,088) |
- 1X8-1Y (8bit): | 42.500MHz (2,048 x 2,048) |
- 1X8-1Y (8bit): | 48.000MHz (2,040 x 2,048) |
Frame rate Vertical frequency of the Camera Link output | - |
- 1X2-1Y (8bit/10bit): | 73.8fps (2,048 x 1,088),147.6fps (1,024 x 1,088),295.1fps (512 x 1,088) |
- 1X4-1Y (8bit/10bit): | 147.6fps (2,048 x 1,088), 295.1fps (1,024 x 1,088) |
- 1X8-1Y (8bit): | 295.1fps (2,048 x 1,088) |
- 1X8-1Y (8bit): | 333.3fps (2,040 x 1,088) |
Horizontal frequency of the Camera Link output | - |
- 1X2-1Y (8bit/10bit): | 82kHz (2,048 x 1,088), 164kHz (1,024 x 1,088), 329kHz (512 x 1,088) |
- 1X4-1Y (8bit/10bit): | 164kHz (2,048 x 1,088), 329kHz (1,024 x 1,088) |
- 1X8-1Y (8bit): | 329kHz (2,048 x 1,088) |
- 1X10-1Y (8bit): | 372kHz (2,040 x 1,088) |
Pixel frequency o the Camera Link output | - |
- 1X2-1Y (8bit/10bit): | 85MHz / 42.5MHz |
- 1X4-1Y (8bit/10bit): | 85MHz / 42.5MHz |
- 1X8-1Y (8bit): | 85MHz / 42.5MHz |
- 1X10-1Y (8bit): | 85MHz / 42.5MHz |
Noise level (8bit output) | Less than 3 digit (Gain 0 dB) |
Dynamic Range | 60 bD |
Minimum Scene Illumination | 1 Lux @ f1.2 |
Sync System | Internal |
Video Output | - |
- @ 8 Bit Output | 10TAP / FULL / MEDIUM / BASE configuration |
- @ 10 Bit Output | MEDIUM / BASE configuration |
Shutter Speed | 45 seconds to 21u seconds (Variable at line), from 22 u seconds (Variable at usec) |
Digital Gain | 1x ~ 5x |
Gamma | 1.0 |
Power | - |
- Input Voltage | 12Vdc ± 10% (PoCL or Power/IO connector) |
- Consumption | Less than 3.0 W |
Operating Mode | Free Run, Edge Preset Trigger (V-reset) Pulse Width Trigger (V-reset) |
Communication | RS232 via CameraLink® connector |
Mechanical
Dimensions | 40 (W) x 40 (H) x 40.5 (D) mm (Excluding the connector) |
Optical Filter | No IR cut filter |
Material | Aluminum (AC) |
Lens Mount | C Mount |
Interface Connector | Camera Link connector: SDR connector x 2 Power/IO connector: HR10A-7R-6PB (Hirose) or equivalent |
Weight | Approximately 90g |
Environmental
Operating Temperature | -5 ~ 40°C |
Storage Temperature | -30 ~ 65°C |
Vibration | 20 Hz ~ 200 Hz ~ 20 Hz (5 min. /cycle), Acceleration 10G, XYZ 3 directions 30 minutes each |
Standard Compliancy | EMS: EN61000-6-2, EMI: EN55022 (Class B) |
RoHS | RoHS Compliant |
