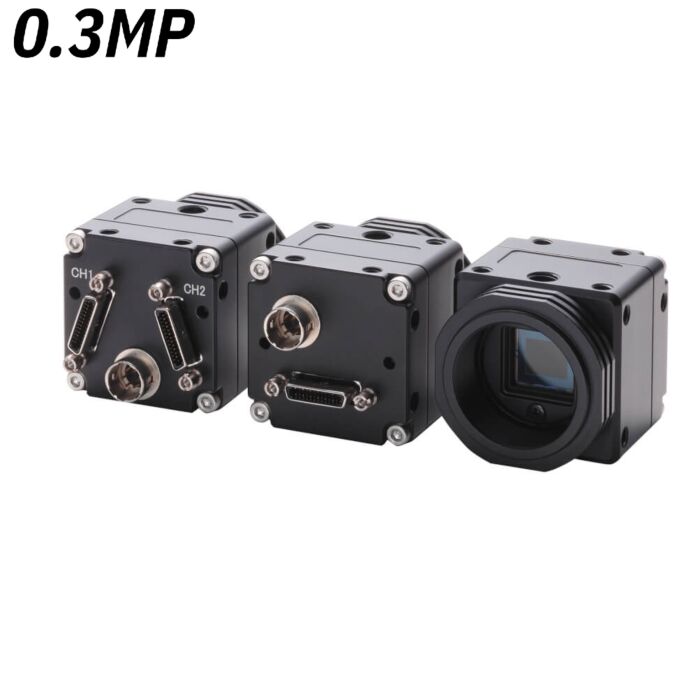

Omron STC-CMC33PCL (STCCMC33PCL) 0.3MP Mini CL Color Camera
This monochrome camera utilizes the CMOSIS VGA 1/3” sensor which outputs full resolution at 480 fps. The STC-CMB33PCL also provides full triggering capabilities, a configurable AOI (Area of Interest) and comes in an ultra-small package of 40 (W) x 40 (H) x 40.5 (D) mm.
Features:
- 1/3" CMOS Sensor, High-Speed Data Rate
- Power Over Camera Link or Hirose Connector
- High-Performance Machine Vision
- Full Triggering Functionality
Applications:
- Machine Vision
- Factory Automation
- Industrial Imaging
Imaging
|
Model No |
STC-CMB33PCL |
|
Image Sensor |
1/3" Meg monochrome progressive CMOS (CMOSIS: CMV300) |
|
Active Picture Element |
642 (H) x 484 (V) |
|
Cell Size |
7.4 (H) x 7.4 (V) µm |
Function
|
Scanning Method |
Full scanning, Variable AOI Binning scanning |
|
Pixel Frequency of the Sensor |
40 MHz |
|
Frame rate Vertical frequency of the Camera Link output |
- |
|
- 1X2-1Y (8bit/10bit/12bit): |
480Hz |
|
Scanning System |
Full scanning, Variable ROI |
|
- 1X3-1Y (8bit/10bit/12bit): |
480Hz |
|
- 1X2-1Y (8bit/10bit/12bit): |
84MHz |
|
- 1X3-1Y (8bit/10bit/12bit): |
56MHz |
|
Noise level (8bit output) |
Less than 3 digit (Gain 0 dB) |
|
Sync System |
Internal |
|
Video Output |
- |
|
- 8bit/10bit/12bit |
MEDIUM / BASE configuration |
|
Shutter Speed |
16.777 seconds to 20u seconds (Variable at usec) |
|
Digital Gain |
1x ~ 5x |
|
Gamma |
1.0 |
|
Power |
- |
|
- Input Voltage |
12Vdc ± 10% (PoCL or Power/IO connector) |
|
- Consumption |
Less than 1.8 W |
|
Digital Gain |
1x ~ 5x |
|
Gamma |
1.0 |
|
Power |
- |
|
- Input Voltage |
12Vdc ± 10% (PoCL or Power/IO connector) |
|
- Consumption |
Less than 3.0 W |
|
Operating Mode |
Free Run, Edge Preset Trigger (V-reset) Pulse Width Trigger (V-reset) |
|
Communication |
RS232 via CameraLink® connector |
Mechanical
|
Dimensions |
40 (W) x 40 (H) x 40.5 (D) mm (Excluding the connector) |
|
Optical Filter |
No IR cut filter |
|
Material |
Aluminum (AC) |
|
Lens Mount |
C Mount |
|
Interface Connector |
Camera Link connector: SDR connector x 2 Power/IO connector: HR10A-7R-6PB (Hirose) or equivalent |
|
Weight |
Approximately 90g |
|
Dimensions |
40 (W) x 40 (H) x 38 (D) mm (Excluding the connector) |
|
Optical Filter |
No IR cut filter |
|
Material |
Aluminum alloy |
|
Lens Mount |
C Mount |
|
Interface Connector |
Camera Link connector: SDR connector IO connector: HR10A-7R-6PB (Hirose) or equivalent |
|
Weight |
Approximately 94g |
Environmental
|
Operating Temperature |
-5 ~ 40°C |
|
Storage Temperature |
-30 ~ 65°C |
|
Vibration |
20 Hz ~ 200 Hz ~ 20 Hz (5 min. /cycle), Acceleration 10G, XYZ 3 directions 30 minutes each |
|
Standard Compliancy |
EMS: EN61000-6-2, EMI: EN55022 (Class B) |
|
RoHS |
RoHS Compliant |
|
Operating Temperature |
-5 ~ 40°C |
|
Storage Temperature |
-30 ~ 65°C |
|
Vibration |
10Hz to 150Hz to 10Hz (8min./cycle), acceleration 5G, XYZ 3 directions 80 min. each) |
|
Shock |
Acceleration 38G, half amplitude 6ms, XYZ 3 directions 3 times each |
|
Standard Compliancy |
EMS: EN61000-6-2, EMI: EN55022 (Class B) |
|
RoHS |
RoHS, REACH compliance |
