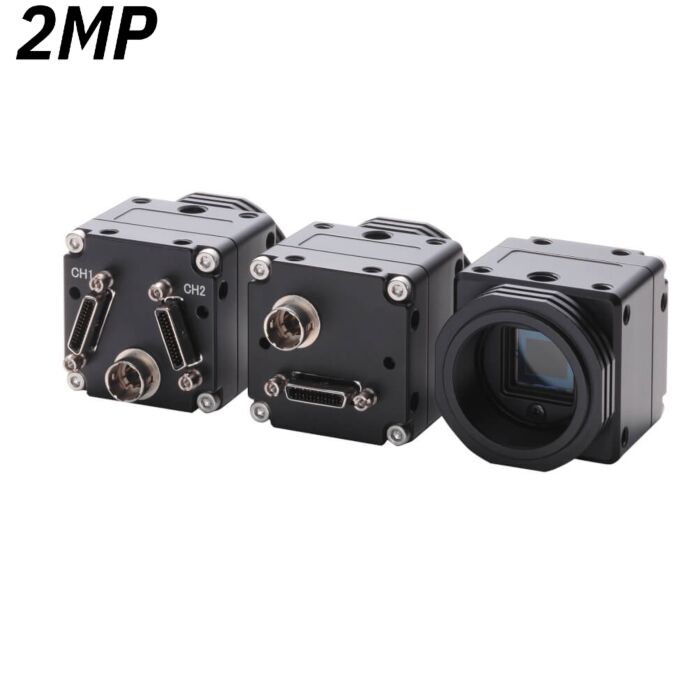

Omron STC-CMB200PCL 2MP Mini CL Camera
*Please note tariff fee is included in price*
The STC-CMB200PCL is NDAA Compliant part of the new mini high-speed, CMOSIS Camera Link Camera series. This monochrome camera utilize the famous CMOSIS 2 Megapixel sensor which outputs full resolution at 333 fps (CMOS Sensor: CMOSIS CMV2000)Compact High-Speed Imaging with Omron's STC-CMB200PCL
Omron's STC-CMB200PCL 2MP Mini Camera Link Camera stands out in the realm of high-performance imaging with its advanced CMOSIS CMV2000 sensor. This camera is engineered to deliver exceptional image clarity and speed, capturing full-resolution images at a remarkable 333 frames per second. With a global shutter mechanism, it excels in recording fast-moving objects without distortion, making it indispensable for dynamic environments.
Designed as part of Omron's new mini high-speed series, the STC-CMB200PCL combines a compact form factor with powerful performance. Its smaller size (40 x 40 x 40.5 mm) and low power consumption (less than 3W) make it an ideal choice for space-constrained and energy-efficient applications. The camera's robust features include a 2048 x 1088 resolution, 5.5 μm pixel size, and versatile Camera Link interface, ensuring seamless integration into various industrial systems.
The STC-CMB200PCL is perfect for applications such as traffic monitoring, security surveillance, automotive cameras, and educational tools. Its flexibility and high-speed capability make it a valuable asset in diverse machine vision and industrial scenarios.
Features:
- Resolution: 2048 x 1088 pixels
- Frame Rate: 333 fps
- Global Shutter: For accurate motion capture
- Dimensions: 40 x 40 x 40.5 mm
- Low Power Consumption: Less than 3W
- Camera Link Interface: Base/Medium/Full/10Tap
Applications:
- Traffic Monitoring
- Security Surveillance
- Automotive Cameras
- Educational Tools
- Industrial Inspection
| Image Sensor | Type 2/3" 2M CMOS (CMOSIS CMV2000) |
| Shutter Type | Global Shutter |
| Effective Pixels | 2048 (H) x 1088 (V) |
| Cell Size | 5.5 (H) x 5.5 (V) μm |
| Frame Rate | 333fps |
| Noise Levels | 3 digits or less (8-bit, Gain 0 dB) |
| Video Format | 8/10 bit Raw Data, RGB 8 bit (Color) 8/10 bit Raw Data (Monochrome, IR) |
| Interface | CameraLink Base/Medium/Full/10Tap |
| Exposure Time | 25μsec ～ 45 sec |
| ALC | AGC ON/OFF and Electronic Iris |
| Digital Gain | 1 ～ 5 dB |
| Gamma | 1.0 (fixed) |
| White Balance | Auto / Manual / Push to Set (Color Models Only) |
| Operating Mode | Edge Preset Trigger / Pulse Preset Trigger |
| Communication | RS232 communication (via Camera Link connector) |
| Power Consumption | less than 3W |
| Dimensions | 40 (W) x 40 (H) x 40.5 (D) mm (excluding connector) |
| Optical Filter | N/A |
| Lens Mount | C Mount |
| External Connector | Miniature Connector (SDR) |
| Power & Signal Connector | HR10A-7R-6PB (Hirose) or equivalent |
| Camera Mounting | 1/4" tripod mounting screw holes (1 on bottom surface) |
| M4 Mounting Screws | 4 mounting screws on the top and bottom of the camera |
| Weight | 102g |
| Compliance | RoHS Compliant |
