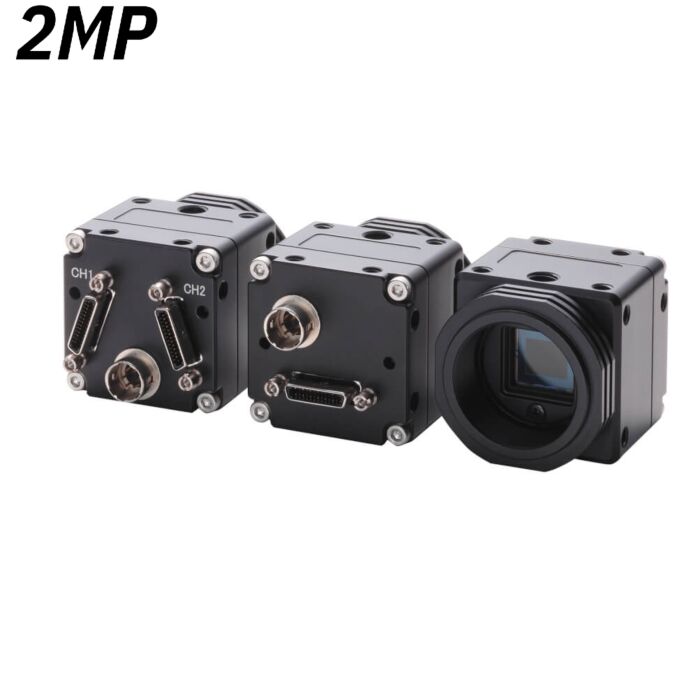

Omron STC-CMB200PCL-NIR (STCCMB200PCLNIR) 2MP Mini CL Camera (Near Infrared)
SKU
STC-CMB200PCL-NIR
$1,288.00
Quick Overview
*Please note tariff fee is included in price*
The STC-CMB200PCL-NIR is NDAA Compliant part of the new mini high-speed, CMOSIS Camera Link Camera series. This monochrome camera utilizes the famous CMOSIS 2 Megapixel sensor which outputs full resolution at 333 fps.Sentech is proud to introduce the brand new Mini C-MOSIS Camera Link series. These cameras feature global shutter, which will allow them to safely record moving objects. The 2M & 4M models are available in Near IR versions. These models are the second generation C-MOSIS Camera Link cameras, and have a smaller size, lower power consumption, and are a lower cost.
Features:
- 2048(H) x 1088(V) 333fps
- 5.5μm x 5.5μm 2/3” Sensor
- Global Shutter
- PoCL / External Power Supply
- 40 x 40 x 40.5 mm (excluding connector)
Applications:
- Traffic Camera
- Security
- Education
- In Car Camera
- Meetings
- Industrial
| Image Sensor | Type 2/3" 2M CMOS (CMOSIS CMV2000) |
| Shutter Type | Global Shutter |
| Effective Pixels | 2048 (H) x 1088 (V) |
| Cell Size | 5.5 (H) x 5.5 (V) μm |
| Frame Rate | 333fps |
| Noise Levels | 3 digits or less (8-bit, Gain 0 dB) |
| Video Format | 8/10 bit Raw Data, RGB 8 bit (Color) 8/10 bit Raw Data (Monochrome, IR) |
| Interface | CameraLink Base/Medium/Full/10Tap |
| Exposure Time | 25μsec ～ 45 sec |
| ALC | AGC ON/OFF and Electronic Iris |
| Digital Gain | 1 ～ 5 dB |
| Gamma | 1.0 (fixed) |
| White Balance | Auto / Manual / Push to Set (Color Models Only) |
| Operating Mode | Edge Preset Trigger / Pulse Preset Trigger |
| Communication | RS232 communication (via Camera Link connector) |
| Power Consumption | less than 3W |
| Dimensions | 40 (W) x 40 (H) x 40.5 (D) mm (excluding connector) |
| Optical Filter | N/A |
| Lens Mount | C Mount |
| External Connector | Miniature Connector (SDR) |
| Power & Signal Connector | HR10A-7R-6PB (Hirose) or equivalent |
| Camera Mounting | 1/4" tripod mounting screw holes (1 on bottom surface) |
| M4 Mounting Screws | 4 mounting screws on the top and bottom of the camera |
| Weight | 102g |
| Compliance | RoHS Compliant |
