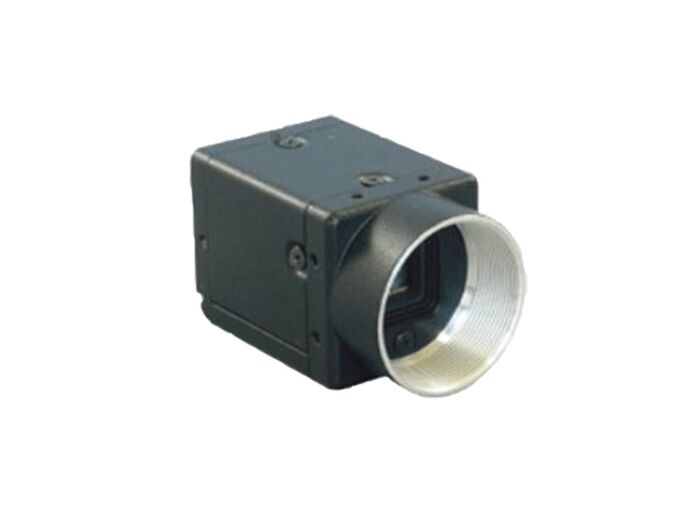

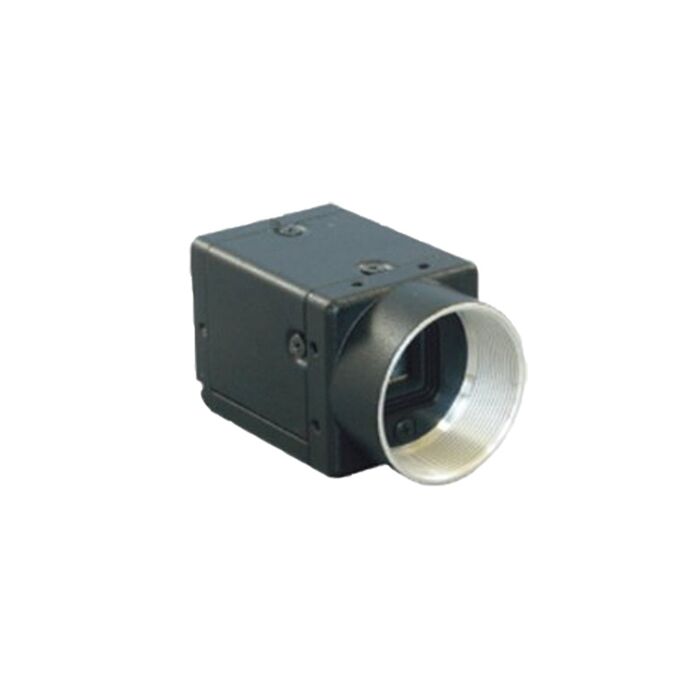

Omron STC-CLC83A Machine Vision Camera Progressive Scan Cased Cameras

1077 x 788 Total Pixels, 1/3" Interline CCD, C-Mount.
SKU
STC-CLC83A

The STC-CLC83A is a full featured, cost effective XGA progressive scan digital Camera Link® cube camera with 1/3" CCD with Color. Featuring a full frame 30fps XGA output, partial scanning, triggering, and reset capabilities.

Features:

  • 1/3" CCD Image Sensor
  • XGA, Progressive Scan, 30fps
  • Compact Housing with Precise Optical Design

  • Applications:

  • Security
  • Inspection
  • Industrial
  • Machine Vision
  • Image Sensor 1/3" interline XGA colorprogressive CCD: ICX204AK
    Total picture elements 1077 (H) x 788 (V)
    Effective picture elements 1034 (H) x 779 (V), XGA: 1024 (H) x 768 (V)
    Chip size μm5.8 (H) x 4.92 (V) mm
    Cell size 4.65 (H) x 4.65 (V) μm
    Scanning system Progressive
    Scanning method Full scanning, Partial full scanning, 1/2 partial scanning, 1/4 partial scanning, Variable partial scanning
    Vertical frequency (Frame rate) 29.59 Hz
    Horizontal frequency 23.23 kHz
    Pixel frequency 29.5 MHz
    S/N ratio (standard deviation) <= 10 Digit (Gain 0 dB)
    Minimum scene illumination 2 Lux at F1.4
    Sync. System Internal / External
    Video output Digital 8 or 10 bit Camera Link (Base configuration)
    Tap 1 Tap
    Shutter Speed OFF, 1/2 to 1/100,000 sec. (Variable at every H and clock)
    Gain 0 to 27 dB
    Gamma 1.0
    Input voltage DC12V ± 10%
    Consumption Less than 1.8 W
    Trigger mode Edge preset trigger (V-reset, Non-reset)
    Pulse width trigger (V-reset, Non-reset)
    Communication RS232 via Camera Link connector
    Dimensions 28 (W) x 28 (H) x 46.5 (D) mm including lens mount and the connector
    Optical filter No IR cut filter
    Optical center accuracy Positional accuracy in H and V directions: +/- 0.31 mm
    Rotational accuracy of H and V:+/- 2.1 deg.
    Case Front, base and rear: Aluminum die cast (ADC12)Cover: Steel sheet covered with zinc
    CaseTripod Polycarbonate ABS
    Lens mount C Mount
    Interface connector HR10A-7R-6PB (Hirose) or equivalent
    Tripod Tripod can be attached to 4 plates(4 screws on the bottom plate, 3 screws on the other 3 plates)
    Operational Temp Temperature: -5 to 50 deg. C, RH: 0 to 85% (No condensation)
    Storage Temp Temperature: -30 to 65 deg. C, RH: 0 to 90% (No condensation)
    Vibration 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, 3 directions 30 min. each
    Shock Acceleration 70G, half amplitude 6ms, 3 directions 3times each
    Standard compliancy EMS: EN61000-6-2, EMI: EN55011 (Class B)
    RoHS RoHS compliance
