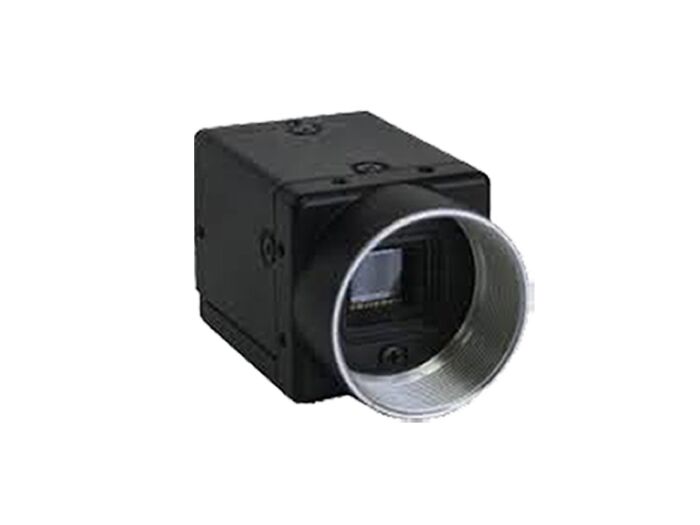

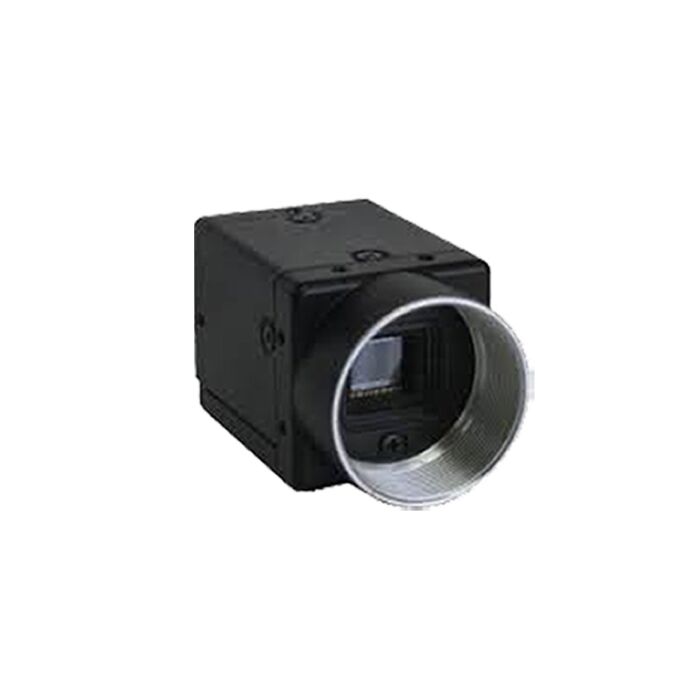

Omron STC-CLC33A Machine Vision Camera Progressive Scan Cased Cameras
SKU
STC-CLC33A-Sentech EOL
Quick Overview
*Please note this product is subject to tariff fee*
692 x 504 Total Pixels, 1/3" interline VGA Color Progressive CCD, C-Mount.The STC-CLC33A (STCCLC33A) is a full featured, low cost VGA progressive scan digital Camera Link® cube camera with 1/3" CCD with RGB Primary Color Filter. Featuring a full frame 90fps VGA output, partial scanning, triggering, and reset capabilities.
Features:
- 1/3" CCD Image Sensor
- VGA, Progressive Scan, 90fps
- Compact Housing with Precise Optical Design
Applications:
- Security
- Inspection
- Industrial
- Machine Vision
| Image Sensor | 1/3" interline VGA monochrome progressive CCD:ICX424AQ |
| Signal Format | Progressive |
| Effective Picture Element | 692 (H) x 504 (V) |
| Active Picture Element | 648 (H) x 494 (V) |
| Chip Size | 5.79 (H) x 4.89 (V) mm |
| Cell Size | 7.4 (H) x 7.4 (V) µm |
| Horizontal Drive Frequency | 36.8181MHz |
| Horizontal Frequency | 15.7343 (30fps) / 31.4685 (60fps) / 47.2028 (90fps) kHzNo |
| Vertical Frequency | 31.47 (30fps) / 62.94 (60fps) / 94.784 (90fps) Hz |
| Minimum Illumination | 2 Lux @ F1.4 |
| Sync System | Internal/External |
| Scanning System | Progressive |
| Scanning Method | Full scanning,Partial full scanning,1/2 partial scanning,1/4 partial scanning,Variable partial scanning |
| Frame Rate | 90fps (At Full Scan) |
| Gamma | 1 |
| Gain | AGC/Adjustable Fixed Gain |
| Electronic Shutter | Variable, Can be set at H and Clock |
| Trigger Shutter | Pulse Width Trigger(V Reset, Non Reset) Edge Preset Trigger (V Reset, Non Reset) |
| Video Output | Digital 8 or 10 bit Camera Link (Base configuration) |
| Lens Mount | C Mount |
| Power Supply | 12V DC |
| Power Consumption | Less than 1.8 W |
| Performance Temperature | 0°C ~ +40°C (-32° F ~ + 104°F) |
| Operating Temperature | -5 to 50 deg. C, RH: 0 to 85% (No condensation) |
| Storage Temperature | -30 to 65 deg. C, RH: 0 to 90% (No condensation) |
| Weight | Approximately 52 g (Camera: 43 g, tripod: 9 g) |
| Dimensions | 28 (W) x 28 (H) x 46.5 (D) mm including lens mount and the connector |
