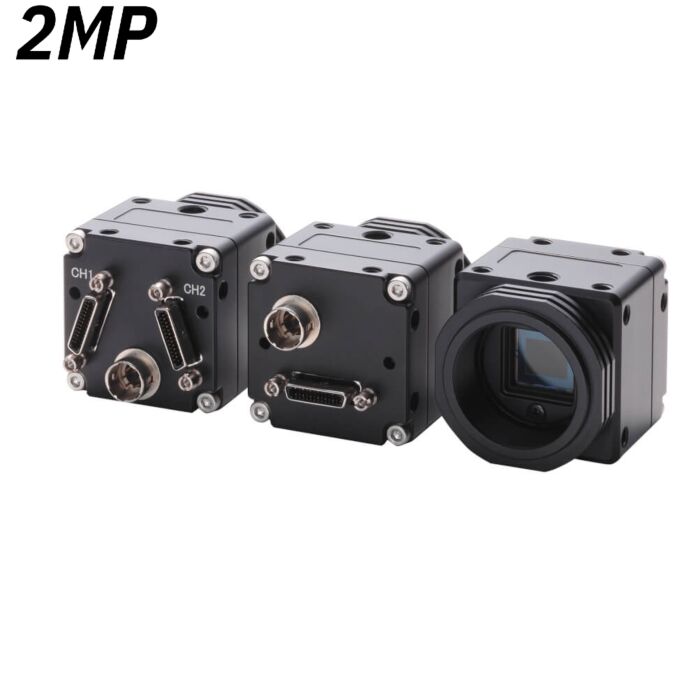

Omron STC-CL232A 2MP CL UXGA Camera CMOS Sensor Sony ICX274AL (Discontinued)
SKU
STC-CL232A
Quick Overview
*Product is Discontinued, Call For Replacement Options
Progressive Scan Cased Camera Link Camera (CMOS Sensor: Sony ICX274AL)
The STC-CL232A (STCCL232A) is a full featured, cost effective UXGA progressive scan digital Camera Link cube camera with 1/1.8" Monochrome CCD. Featuring a full frame 30fps UXGA output, partial scanning, triggering, and reset capabilities.
| Specifications | |
| Image Sensor | 1/1.8” Interline UXGA Monochrome Progressive CCD: ICX274AL |
| Total picture elements | 1688 (H) x 1248 (V) |
| Effective picture elements | |
| Chip size | |
| Cell size | |
| Scanning system | |
| Scanning method | Full Scanning, Partial Full Scanning, ½ Partial Scanning, ¼ Partial Scanning, Variable Partial Scanning, Binning, Binning Partial Scanning, Binning ½ Partial Scanning, Binning ¼ Partial Scanning, Binning Variable Partial Scanning |
| Vertical frequency (Frame rate) | 30.854 Hz |
| Horizontal frequency | 38.352 kHz |
| Pixel frequency | 73.636 MHz |
| S/N ratio (standard deviation) | 15 (Gain 0 dB) |
| Minimum scene illumination | 5 Lux at F1.4 |
| Sync. System | Internal / External |
| Video output | Digital 8 or 10 bit Camera Link (Base configuration) |
| Tap | 2 Taps |
| Shutter Speed | OFF, 1/2 to 1/100,000 sec. (Variable at every H and clock) |
| Gain | 0 to 25 dB |
| Gamma | 1.0 |
| Input voltage | DC12V ± 10% |
| Consumption | Less than 4.0 W |
| Trigger mode | Edge preset trigger (V-reset, Non-reset) Pulse width trigger (V-reset, Non-reset) |
| Communication | RS232 via Camera Link connector |
| Dimensions | 28 (W) x 28 (H) x 53.5 (D) mm including lens mount and the connector |
| Optical filter | No IR cut filter |
| Optical center accuracy | Positional accuracy in H and V directions: +/- 0.31 mm Rotational accuracy of H and V:+/- 2.1 deg. |
| Case | Front, base and rear: Aluminum die cast (ADC12) Cover: Steel sheet covered with zinc |
| CaseTripod | Polycarbonate ABS |
| Lens mount | C Mount |
| Interface connector | HR10A-7R-6PB (Hirose) or equivalent |
| Tripod | Tripod can be attached to 4 plates (4 screws on the bottom plate, 3 screws on the other 3 plates) |
| Operational Temp | Temperature: -5 to 40⁰C, RH: 0 to 85% (No Condensation) |
| Storage Temp | Temperature: -30 to 65⁰C, RH: 0 to 90% (No Condensation) |
| Vibration | 20Hz to 200Hz to 20Hz (5min./cycle), Acceleration 10G, 3 Directions 30 minutes each |
| Shock | Acceleration 70G, Half Amplitude 6ms, 3 Directions 3 Times each |
| Standard compliancy | EMS: EN61000-6-2, EMI: EN55011 (Class B) |
| RoHS | RoHS compliance |
