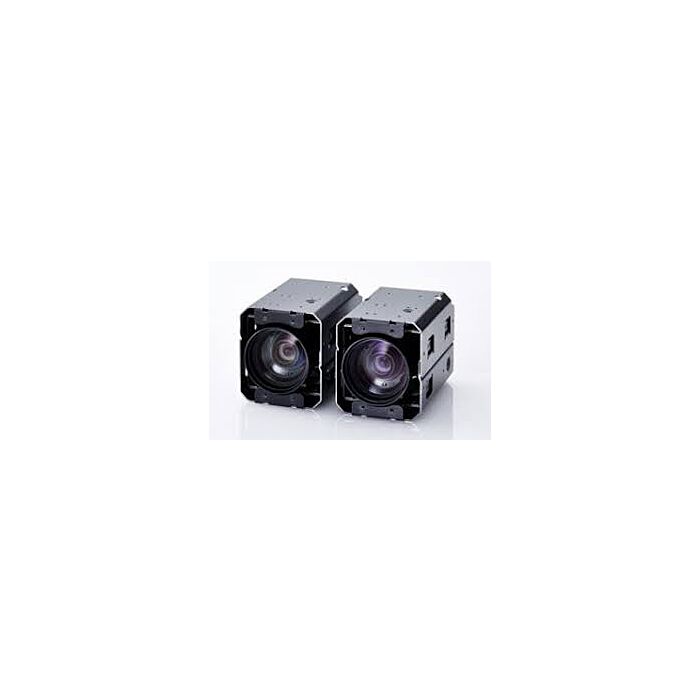

Omron STC-AF243LVDS 1/2.8" Auto Focus HD Block Camera CMOS Sensor Sony IMX136 (Discontinued)
SKU
STC-AF243LVD-1
Quick Overview
*Product is Discontinued, Call For Replacement Options
1/2.8" 2.3 Mega Pixel CMOS, 2.8 (H) x 2.8 (V) μm, Rolling Shutter (CMOS Sensor: Sony IMX136)
The STC-AF243LVDS is the newest addition to Sentech’s Auto Focus Block Camera line. This low cost, high performance CMOS based camera outputs both LVDS and SDI signals. The DVI signal can go directly to any flat screen monitor that takes a DVI or HDMI input. The STCAF243LVDS auto focus block camera outputs a 1080p, 60 fps, 16x9 image. This product provides full on-board image processing for Low Vision Magnifier systems.
Features:
Applications:
| Image Sensor | 1/2.8" 2.3Mega pixel CMOS (SONY: IMX136), Rolling Shutter |
| Active Picture Element | 1936 (H) x 1096(V) |
| HD Active Picture Element | 1920 (H) x 1080 (V) |
| Optical Size | 5.44 (H) x 3.09 (V) mm |
| Cell Size | 2.8 (H) x 2.8 (V) μm |
| Scanning System | Progressive |
| Minimum Scene illumination | 1.4 Lux @F1.6, with IRC filter, Exposure time 1/60 sec. |
| Sync System | Internal |
| Video Output | - |
| - LVDS Model | 1080P 60/50/30, 720P 60/50 Default :1080P 60 |
| Camera Functions | - |
| - ALC | High brightness white LED x2 |
| - Shutter Speed | Electrical shutter / AGC / Mechanical IRIS linkage (Default: ALC ON) |
| - Gain | AGC / Fixed gain 0 to 45 dB Default : AGC |
| - Gamma | Selectable gamma through 5 preset (one preset is manual, / 0.45 / 0.6 / 0.8 / 1) Default : Manual |
| - White Balance | Auto white balance / Manual white balance / Push to set white balance Default : Auto white balance |
| - Mirror image | Normal image / horizontal flip / vertical flip / horizontal vertical flip(180 degree rotation) Default: Normal image |
| - DSP Preset | 8 user preset mode Default : Preset 0 |
| - Line generator | Both horizontal and vertical with all available colors (Line number: 2) Default : Disable |
| - Shadow mask generator | Both horizontal and vertical with shading level adjustment Default : Disable |
| - Privacy mask | 8 windows with all available colors, width, position Default : Disable |
| - Communication | UART communication RS232C +3.3V,RS485 +5) (Boudrate: 115,200bps,38,400bps, 19,200bps, 9,600bps） |
| - Character generator | Built-in character generation function via the UART communication |
| - Another | Pixel blemish collection, WDR, Defog, Hue, Brightness, Contrast etc. |
| Lens Control | - |
| - Optical Zoom | UART communication(LVDS model / SDI model), Zoom function can be controlled through External control (SDI model) |
| - Focus | Auto focus / Manual focus / Push set focus (Selectable control via the UART communication) Default : Auto focus |
| - IRIS | Auto IRIS / Manual IRIS / Push set IRIS (Selectable control via the UART communication) Default : Auto IRIS |
| - ICR (IR Cut filter Removable) | Selectable IR cut filter Auto / Manual (Selectable control via the UART communication) Default : Manual |
| Power | - |
| - Input Voltage | +9 ~ +15 Vdc (Typical: +12 Vdc) |
| - Consumption | Zoom and Focus: 3.5W, Zoom and Disable-focus: 3.2W |
| Dimensions | 53 (W) x 60 (H) x 89.5(D) mm |
| Auto Focus Lens | 20x auto focus zoom lens, Demountable IR cut filter Optical zoom range: from 4.7mm to 94mm (F No.1.6～3.0) |
| Optical Filter | OPLF on |
| Interface Connector | - |
| - Video Output | LVDS model : CN02(USL00-30L-C,KEL),SDI model : RF(MM9329-2700 cable Murata |
| - Power input, External control UART communication | LVDS model : CN02(USL00-30L-C,KEL) SDI model : CN06(SM14B-SRSS-TB,JST |
| Weight | LVDS: Approximately 300g, SDI: Approximately 300g |
| Operational Temperature | 0 to 45 deg. C |
| Storage Temperature | -30 to 65 deg. C |
| Vibration | 5Hz to 5Hz to 5Hz (4min./cycle), amplitude 2mm, XYZ 3 diretions 60 in. each to 20Hz (5 min. /cycle). Acceleration 10G, XYZ 3 directions 30min each) |
| Shock | Acceleration 60G, half amplitude 11ms, XYZ 3 directions 1times each |
| RoHS | RoHS Compliant |
