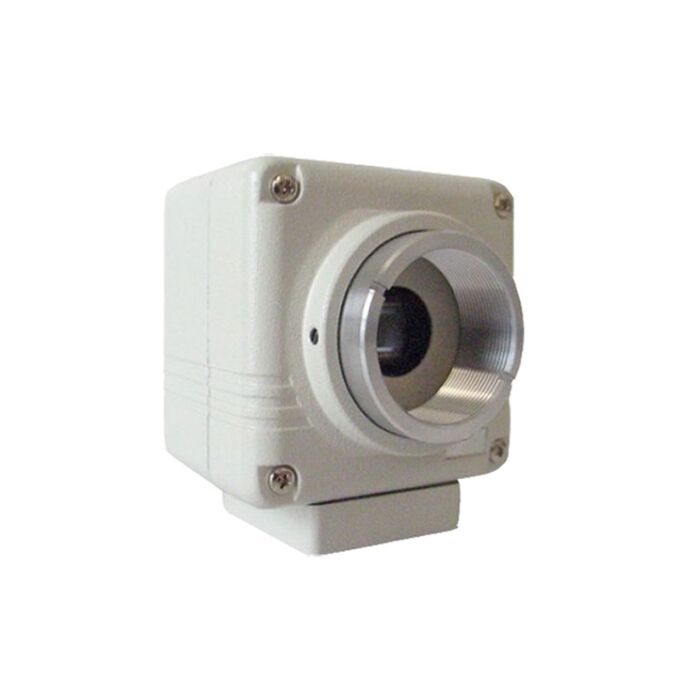

Omron STC-170BC Machine Vision Camera 2:1 Interlace Cased Cameras (Discontinued)
SKU
STC-170BC
Quick Overview
*Product is Discontinued, Call For Replacement Options
The STC-170BC is an inexpensive, compact camera that can adapt to almost any application. Back panel features BNC Connector Video Out and 12 Pin Hirose. Available in EIA and CCIR formats.
The STC-170BC is an inexpensive, compact camera that can adapt to almost any application. Back panel features BNC Connector Video Out and 12 Pin Hirose. Available in EIA and CCIR formats.
| Specifications | ||
| Image Sensor: | STC-170 (EIA): 1/3" Monochrome IT CCD STC-175 (CCIR): 1/3" Monochrome IT CCD | |
| Formats: | EIA & CCIR | |
| Effective Picture Element: | EIA: 768 (H) x 494 (V) CCIR: 752 (H) x 582 (V) | |
| Scanning System: | 2:1 Interlace | |
| Horizontal Resolution: | 570 TV Lines | |
| Horizontal Frequency: | 15.734 kHZ | |
| Vertical Frequency: | 59.94 Hz | |
| Sync System: | Internal or External (HD/VD) Auto Detect | |
| Minimum Illumination: | 0.06 Lux @ F1.2, 50 IRE (AGC On) | |
| S/N Ratio: | >56dB (AGC Off) | |
| Gamma: | 0.45 or 1 Selectable | |
| Accumulation Mode: | Frame/ Field Switchable | |
| White Balance: | Auto or Manual | |
| Gain: | On/Off Selectable | |
| Electronic Iris: | 1/60 (1/50) to 1/100,000 Second | |
| Electronic Shutter: | 1/60 to 1/10,000 Second | |
| Back Light: | On/Off Selectable | |
| Video Out: | VS 1.0Vp-p, 75W | |
| Power Supply: | 12V DC | |
| Power Consumption: | 110mA | |
| Operating Temperature: | -10°C ~ 45°C (14°F ~ 113°F) | |
| Storage Temperature: | -30°C ~ 60 °C (-22°F ~ 140°F) | |
| Weight: | 180g (6.35 oz.) | |
| Dimensions: | 51 (W) x 51 (H) x55.5 (D) mm (2.04" x 2.04 " x 2.22") | |
 | ||
