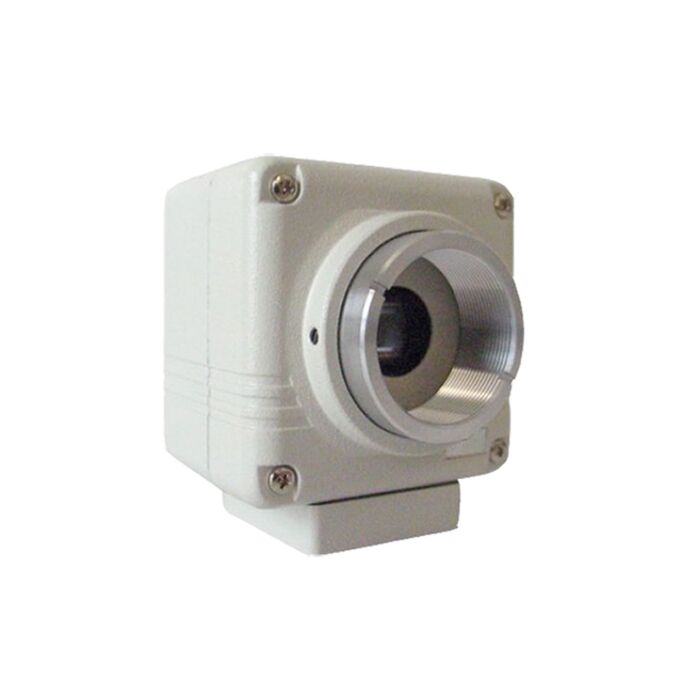

Omron STC-160BT Machine Vision Camera 2:1 Interlace Cased Cameras (Discontinued)
SKU
STC-160BT
Quick Overview
*Product is Discontinued, Call For Replacement Options
The STC-160BT is a low cost, high resolution, high sensitivity machine vision camera, which offers users a high resolution 1/3" Monochrome CCD, fixed shutter speeds from 1/60th (1/50th) to 1/100,000th Second, External Sync (HD/VD), and much more. Available in EIA and CCIR formats.
The STC-160BT is a low cost, high resolution, high sensitivity machine vision camera, which offers users a high resolution 1/3" Monochrome CCD, fixed shutter speeds from 1/60th (1/50th) to 1/100,000th Second, External Sync (HD/VD), and much more. Available in EIA and CCIR formats.
| Specifications | |
| Image Sensor: | STC-160BT (EIA): 1/3" Monochrome IT CCD STC-165BT (CCIR): 1/3" Monochrome IT CCD |
| Formats: | EIA & CCIR |
| Effective Picture Element: | EIA: 768 (H) x 494 (V) CCIR: 752 (H) x 582 (V) |
| Scanning System: | 2:1 Interlace |
| Horizontal Resolution: | 570 TV Lines |
| Horizontal Frequency: | 15.734 kHZ |
| Vertical Frequency: | 59.94 Hz |
| Sync System: | Internal |
| Minimum Illumination: | 0.07 Lux @ F1.2, 50 IRE (AGC On) |
| S/N Ratio: | >56dB (AGC Off) |
| Gamma: | 0.45 or 1 Selectable |
| White Balance: | Auto or Manual |
| Gain: | On/Off Selectable |
| Auto Iris: | DC Control |
| Electronic Shutter: | 1/60 to 1/100,000 Second |
| Back Light: | On/Off Selectable |
| Video Out: | VS 1.0Vp-p, 75W |
| Power Supply: | 12V DC |
| Power Consumption: | 145mA |
| Operating Temperature: | -10°C ~ 45°C (14°F ~ 113°F) |
| Storage Temperature: | -30°C ~ 60 °C (-22°F ~ 140°F) |
| Weight: | 180g (6.35 oz.) |
| Dimensions: | 51 (W) x 51 (H) x55.5 (D) mm (2.04" x 2.04 " x 2.22") |
 STC-H160BT Back Panel | |
