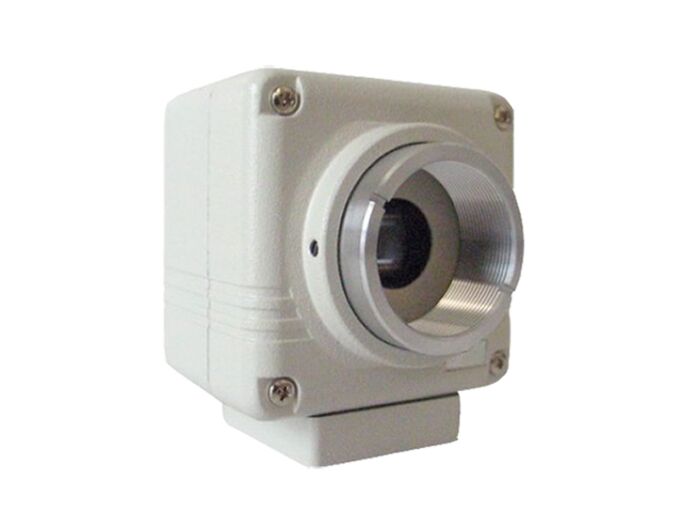

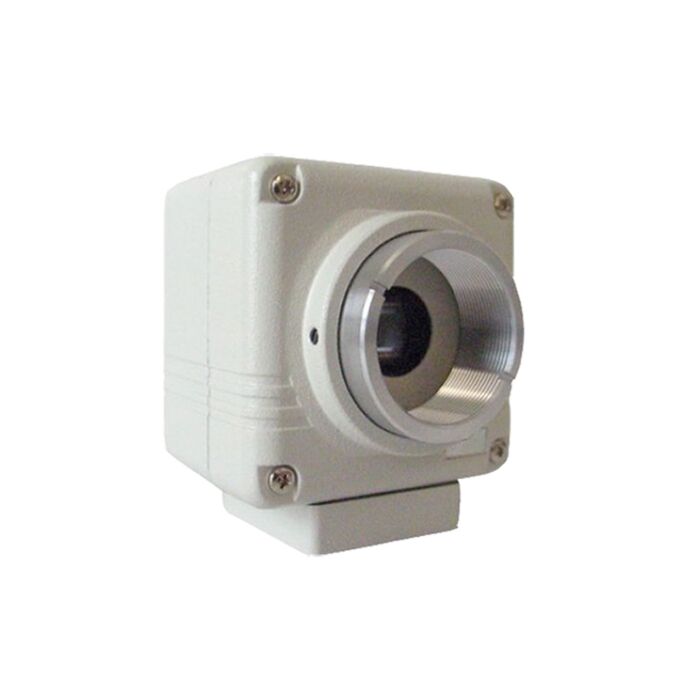

Omron STC-160BC Machine Vision Camera 2:1 Interlace Cased Cameras
The STC-160BC series industrial monochrome camera provides excellent performance for low cost machine vision solutions. The camera features high quality reproduction, a 1/3” high resolution IT CCD, electronic shutter to 1/100,000 of a second, HD/VD external sync input, and a 12 pin connector for easy access of power, video signal and sync signals. The STC- 160BC is available in EIA and CCIR formats.
SKU
STC-160BC
The Sentech STC-160BC series industrial monochrome camera provides excellent performance for low cost machine vision solutions. The camera features high quality reproduction, a 1/3” high resolution IT CCD, electronic shutter to 1/100,000 of a second, HD/VD external sync input, and a 12 pin connector for easy access of power, video signal and sync signals. The STC- 160BC is available in EIA and CCIR formats.
- AGC / Manual Gain
- Composite Outputs
- 1/3” IT CCD, 768(V) x 494(H)
- Electronic Shutter
- External Sync, (HD/VD) input
- Small size, Lightweight
- 570 TV Lines
- 12 pin Connector
- EIA & CCIR Formats
- 0.2 Lux Minimum Illumination
- 12VDC
- Uses ‘CS’ mount lenses, ‘C’ w/adapter
| Image Sensor: | STC-160 (EIA): 1/3" Monochrome IT CCD STC-165 (CCIR): 1/3" Monochrome IT CCD |
|
| Formats: | EIA & CCIR | |
| Effective Picture Element: | EIA: 768 (H) x 494 (V) CCIR: 752 (H) x 582 (V) |
|
| Scanning System: | 2:1 Interlace | |
| Horizontal Resolution: | 570 TV Lines | |
| Horizontal Frequency: | 15.734 kHZ | |
| Vertical Frequency: | 59.94 Hz | |
| Sync System: | Internal | |
| Minimum Illumination: | 0.06 Lux @ F1.2, 50 IRE (AGC On) | |
| S/N Ratio: | >56dB (AGC Off) | |
| Gamma: | 0.45 or 1 Selectable | |
| White Balance: | Auto or Manual | |
| Gain: | On/Off Selectable | |
| Auto Iris: | DC Control | |
| Electronic Shutter: | 1/60 to 1/100,000 Second | |
| Back Light: | On/Off Selectable | |
| Video Out: | VS 1.0Vp-p, 75W | |
| Power Supply: | 12V DC | |
| Power Consumption: | 145mA | |
| Operating Temperature: | -10°C ~ 45°C (14°F ~ 113°F) | |
| Storage Temperature: | -30°C ~ 60 °C (-22°F ~ 140°F) | |
| Weight: | 180g (6.35 oz.) | |
| Dimensions: | 51 (W) x 51 (H) x55.5 (D) mm (2.04" x 2.04 " x 2.22") | |
