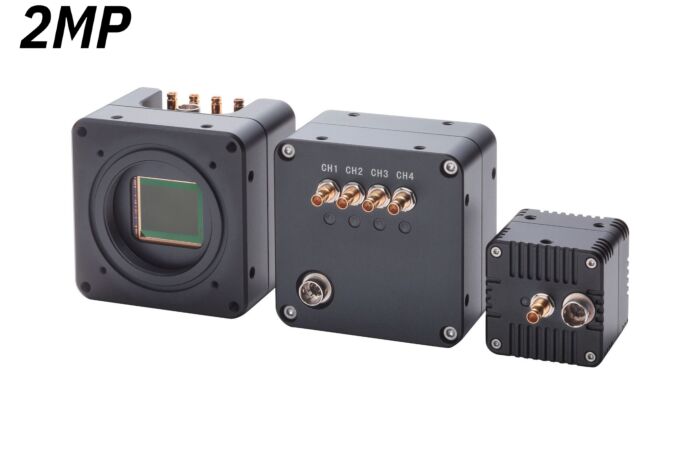

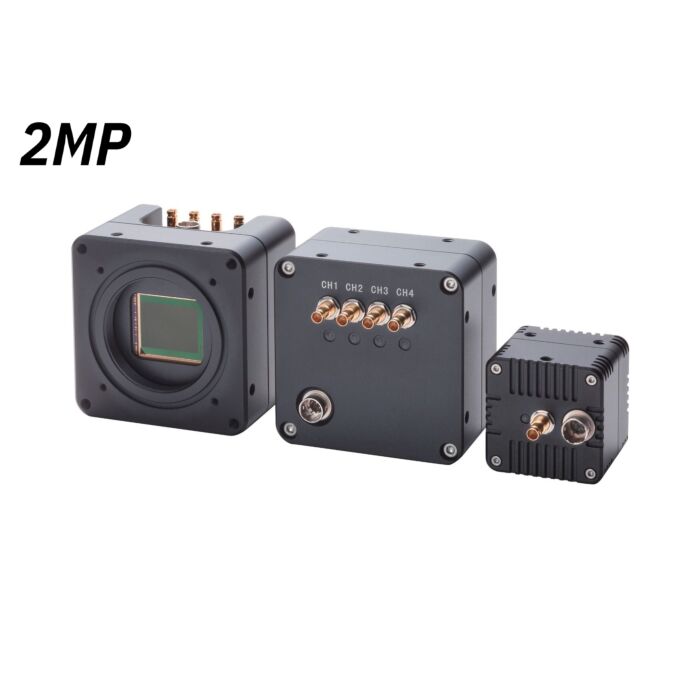

Omron STC-MCS510CXP6 CoaXPress Color CMOS Camera
These Sentech cameras are perfect for applications requiring high quality with it's IMX422 2MP global shutter sensor.
Features:
- CoaxPress (CXP) Interface: CXP-6, 1 lane
- PoCXP (Power Over CoaxPress) support
- Maximum frame rate (Full resolution): 239 fps @ 2M 8bits
- CMOS (Global Shutter)
- Up to TBD Pixel Defect Correction (Defualt: ON)
- 8bits, 10bits, 12bits output
| Image Sensor |
1/1.7” 2M Progressive Color CMOS (SONY: IMX422) |
| Shutter Type | Global Shutter |
| Active Picture Element | 1624 (H) x 1240 (V) |
| Cell Size | 4.5 (H) x 4.5 (V) µm |
| Scanning System | Full scanning / ROI |
| Frame Rate (Full Resolution) |
8bits: 239 fps |
| ADC bit width | 12bits |
| Image Output Format |
Mono8 |
| CoaXPress Data Output |
CXP-6 (6.25 Gbps) 1 Lane |
| Noise Level |
8bits output: Less than TBD digits (Gain 0 dB) |
| Sensitivity (*1) | TBD Lux |
| Exposure Time |
1 μseconds to 16.777 seconds (Default: TBD μseconds) |
| Gain | Analog: 0 to 18 dB (Default: 0 dB) Digital: x1 to x3 (Default: x1) |
| Black Level |
0 to 63 digits @ 8bits |
| White Balance Gain | N/A |
| ROI |
Horizontal: TBD to 1,624 pixels / Vertical: 4 to 1,240 lines (Default: 1,624 x 1,240) |
| Multi ROIs | TBD |
| Gamma | TBD |
| Binning |
Horizontal and Vertical summing / Off |
| Decimation | N/A |
| Image Flip |
Horizontal / Vertical / Horizontal and Vertical / Off |
| Defective Pixel Correction | Up to TBD points |
| Auto Image Control | Auto Exposure: Auto Gain: Auto White Balance: |
| Operational Mode |
Edge Preset Trigger / Pulse Width Trigger / CXP Tigger Packet / Free Run |
| Interface |
GenICam |
| Protocol |
CoaXPress Standard Version 1.1 |
| I/O | 4 GPIOs |
| Power | Input Voltage: Consumption: Maximum - Less than TBD W, Typical: TBD W |
